Installing power modules:
1) Operators should wear ESD wrist straps, ensure that the ESD wrist straps are in good contact with the skin, and the
ESD wrist straps are properly grounded.
2) When taking a power module out of the power module box, check that its model is consistent with the required model.
3) Select a power slot for installing the power module. Operators should directly face the power slot of the switch during
installation.
Notes:
1. Only one power slot has no filler panel installed when shipment. Therefore, the power module can be inserted into this
power slot. When multiple power modules need to be installed, remove the filler panels. A filler panel must be installed
on the power slot without a power module. Otherwise, the heat dissipation of the device will be affected.

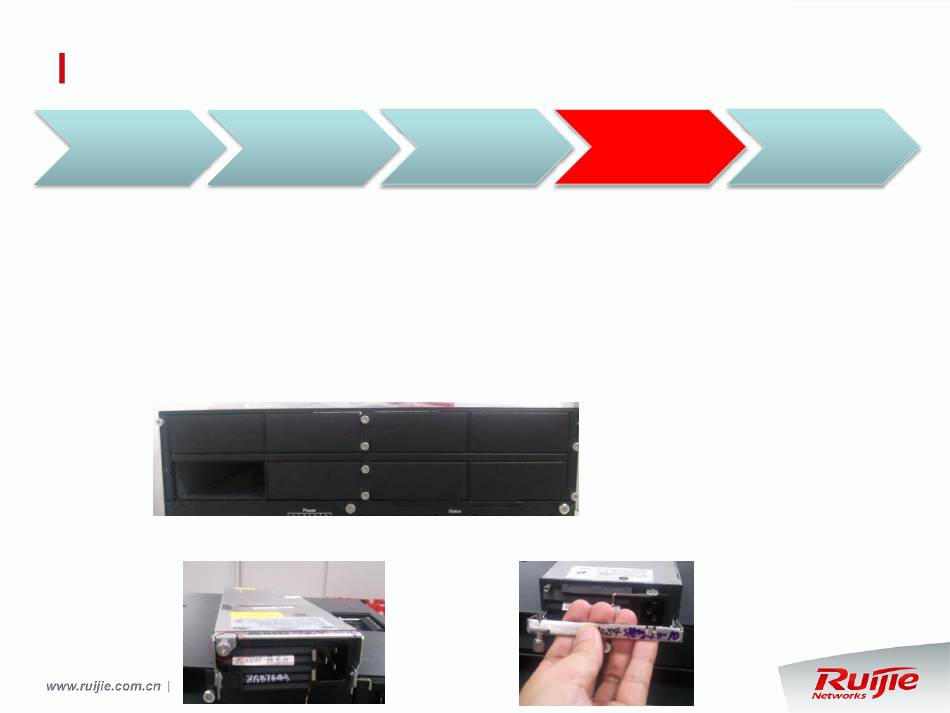

2. Before inserting a power module into a power slot, loosen the screw on the handle, as shown in the following figure
on the left, so that the power module is unlocked, as shown in the following figure on the right.
