Ruijie Reyee RG-ES220GS-P
Switch
Installation Guide
Document Version: V1.1
Date: 2024-02-22
Copyright © 2024 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reyee RG-ES220GS-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie Reyee RG-ES220GS-P

Summary of Contents for Ruijie Reyee RG-ES220GS-P

  • Page 1 Ruijie Reyee RG-ES220GS-P Switch Installation Guide Document Version: V1.1 Date: 2024-02-22 Copyright © 2024 Ruijie Networks...
  • Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.

  • Page 3: Preface

    Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee  Technical Support Website: https://www.ruijienetworks.com/support  Case Portal: https://www.ruijienetworks.com/support/caseportal  Community: https://community.ruijienetworks.com...
  • Page 4 Note This manual provides installation steps, troubleshooting, technical specifications, and usage guidelines for cables and connectors. It is intended for users who want to understand the above and have extensive experience in network deployment and management, and assume that users are familiar with related terms and concepts.

  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Product Overview ..........................1 1.1 Package Contents........................1 1.2 Technical Specifications ......................1 1.3 Product Appearance ........................3 1.4 Front Panel ..........................4 1.5 Back Panel ..........................5 1.6 Cooling ............................5 1.7 LEDs ............................5 2 Preparing for Installation ........................
  • Page 6 2.2.6 Lightning Protection ..................... 11 2.2.7 EMI ..........................11 2.3 Tools ............................12 3 Installing the Switch ........................13 3.1 Installation Procedure ......................13 3.2 Before You Begin ........................13 3.3 Installing the RG-ES220GS-P Switch ..................13 3.3.1 Installing the Switch in a Rack ..................14 3.3.2 Installing the Switch on a Workbench ................
  • Page 7 Appendix A — Connectors and Media ....................20 Appendix B — Mini-GBIC and SFP Modules ..................22 Appendix C — Lightning Protection ....................25 Appendix D — Cabling Recommendations ..................28 Appendix E — Machine Room Site Selection ..................33...

  • Page 8: Product Overview

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Product Overview Product Overview 10/100Base-T 10/100/1000Base-T 1000Base-X SFP Console Model Ports with Auto- Ports with Auto- Port Port Negotiation Negotiation 18 (Ports 1-16 RG-ES220GS-P support PoE/PoE+) Note ● An SFP port is downward compatible with 100Base-FX ports. ●...
  • Page 9 16 support PoE/PoE+, while ports 19 and 20 are 1000Base-X SFP ports. Optical Module See Appendix B. Copper SFP modules are not supported. The supported optical transceiver types may update without prior notification. Please contact Ruijie Networks for any updates. SFP Port 1000Base-X supported Power Supply...

  • Page 10: Product Appearance

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Product Overview Storage Humidity 5% RH to 95% RH, non-condensing The fan module supports adaptive fan control for speed regulation. The fan module stops when the ambient temperature is lower than 25° C or when the PoE output power is less than 125 W.

  • Page 11: Front Panel

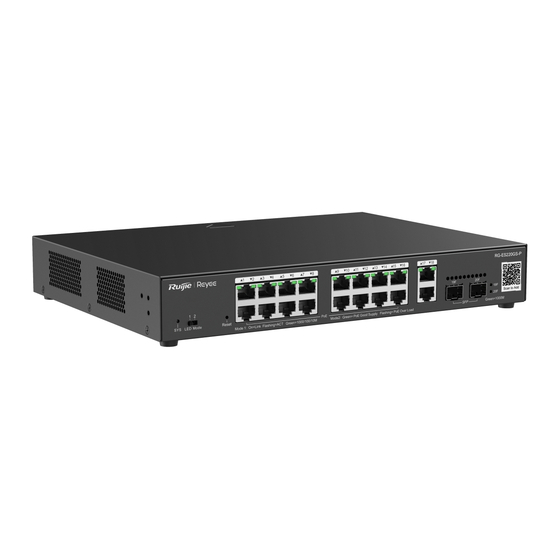

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Product Overview Figure 1-1 Appearance of RG-ES220GS-P Front Panel Figure 1-2 Front Panel of RG-ES220GS-P Note 1. System status LED 5. 10/100/1000BASE-T port with auto- negotiation 2. Port LED mode toggle switch 6. SFP port 3.

  • Page 12: Back Panel

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Product Overview Note ● LED mode switch toggled to left (Mode 1): The port LED status indicates the status of traffic transmission. Solid green means that the port is link up, while blinking green means that the port is transmitting and receiving data.
  • Page 13 RG-ES220GS-P Switch Hardware Installation and Reference Guide Product Overview Silkscree Status Description n Label Solid The system is operating normally. green PoE is disabled. Solid PoE is enabled. RJ45 port PoE LED 1-16 green Blinking The PoE port is overloaded. green The port is not connected.

  • Page 14: Preparing For Installation

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Caution ● To avoid personal injury and device damage, carefully read the safety precautions before you install the device. ● The following safety precautions may not cover all possible dangers. 2.1.1 Safety Precautions ...

  • Page 15: Electrostatic Discharge Safety

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Preparing for Installation supply is equal to or less than 1.5 mA, the leakage current of the system totals 30 mA. A leakage protector with 30 mA rated action current supports less than ten power supplies (that is, Action current of the leakage protector/2/Maximum leakage current of each power supply = 30/2/1.5 = 10).

  • Page 16: Ventilation And Cooling

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Preparing for Installation 2.2.1 Ventilation and Cooling A minimum clearance of 100 mm (3.94 in.) must be maintained around the device for air circulation and ventilation. After various cables are connected, bundle the cables or place them in the patch panel to avoid blocking air inlets.

  • Page 17: Anti-Interference

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Preparing for Installation Sulfur dioxide (SO Hydrogen sulfide Nitrogen dioxide (NO Chlorine gas (CI Note Average refers to the average value of harmful gases measured in one week. Maximum refers to the upper limit of the harmful gas measured in one week for up to 30 minutes every day.

  • Page 18: Lightning Protection

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Preparing for Installation ● The power outlet should be installed near the device and easily accessible. ● During device installation, connect the grounding wire first and disconnect it last. ● The cross-sectional area of the protective grounding wire should be at least 0.75 mm (18 AWG).

  • Page 19: Tools

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Preparing for Installation EMI occurs due to radiation or conduction, depending on the transmission path. When the energy, often RF energy, from a component arrives at a sensitive component through the space, the energy is known as radiated interference.

  • Page 20: Installing The Switch

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Installing the Switch Installing the Switch Note ● Before reading chapter 3, ensure that you have read chapter 2 carefully. ● Verify that requirements described in chapter 2 have been met. Installation Procedure Before You Begin Confirm the following requirements before installation: ...

  • Page 21: Installing The Switch In A Rack

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Installing the Switch  Connect the power cords of different colors to the corresponding cable terminals.  Ensure that the connector of the power cord is properly seated in the power port of the switch. After plugging the power cord into the switch, secure the power cord with power cord retention clip.

  • Page 22: Installing The Switch On A Workbench

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Installing the Switch Figure 3-2 3.3.2 Installing the Switch on a Workbench In some cases, if a standard 19-inch rack is unavailable, the switch can be mounted on a clean workbench, as shown in Figure 3-3. The location where the switch is installed must be subject to movement restrictions. Figure 3-3 Verifying Installation Note...
  • Page 23 RG-ES220GS-P Switch Hardware Installation and Reference Guide Installing the Switch the power supply and interfaces are protected from lightning strikes.  Verify that there is a minimum clearance of 100 mm (3.94 in.) around the switch.

  • Page 24: Debugging

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Debugging Debugging Setting Up the Configuration Environment 4.1.1 Connecting the Network Cable Connect one end of the Ethernet cable to the Ethernet port of the PC. Connect the other end of the Ethernet cable to any port of the switch. 4.1.2 Log In to the Web Interface for Setup Step 1: Configure your PC with an IP address in the network of 10.44.77.XXX (Range: 1-255, excluding 200).

  • Page 25: Common Troubleshooting

    RG-ES220GS-P Switch Hardware Installation and Reference Guide Common Troubleshooting Common Troubleshooting Troubleshooting Flowchart Common Faults 5.2.1 The SYS LED is Off After the Switch is Powered On No power is supplied to the switch, or the power cord is loose. Check whether the power socket in the machine room is normal and whether the power cable connected to the switch is loose.
  • Page 26 RG-ES220GS-P Switch Hardware Installation and Reference Guide Common Troubleshooting the optical transceiver with another one of the same type. Replace the optical fiber with a qualified one. Use an optical fiber with the required length.

  • Page 27: Appendix A - Connectors And Media

    Appendix A — Connectors and Media RG-ES220GS-P Switch Hardware Installation and Reference Guide Appendix A — Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T Port The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (recommended) with a maximum distance of 100 meters (328 feet).
  • Page 28 Appendix A — Connectors and Media RG-ES220GS-P Switch Hardware Installation and Reference Guide Figure A-3 Twisted Pair Connections for the 100BASE-TX/10BASE-T Port Optical Fiber Connection Choose single mode or multi-mode fibers according to the module types. Figure A-4 Optical Fiber Connection...

  • Page 29: Appendix B - Mini-Gbic And Sfp Modules

    Besides, the Mini-GBIC-GT modules are also supported. The following models and technical specifications of some SFP modules are listed for your reference. For details about the technical specifications, see Ruijie Hybrid Cable Installation and Reference Guide. Table B-1 Models and Specifications of 1000M Mini-GBIC (SFP) Optical Modules...
  • Page 30 Appendix B — Mini-GBIC and SFP Modules RG-ES220GS-P Switch Hardware Installation and Reference Guide MINI-GBIC-ZX100-SM1550 1550 GE-SFP-SX -9.5 GE-SFP-LX 1310 -9.5 SFP-MM850 -9.5 SFP-SM1310 1310 -9.5 Table B-2 1000Base-T SFP Copper Module Standard 1000Base-T SFP Module DDM (Yes/No) 1000Base-T Mini-GBIC-GT Table B-3 Cabling Specifications of SFP Modules Core Max.
  • Page 31 Appendix B — Mini-GBIC and SFP Modules RG-ES220GS-P Switch Hardware Installation and Reference Guide 50/125 550 m GE-SFP-LX 9/125 10 km RJ45 Mini-GBIC-GT Ethernet Cat 5 (or higher) twisted-pair cable 100 m cable Note ● For optical modules with a cabling distance of over 40 km (24.85 miles) (including 40 km) (including 24.85 miles), install an optical attenuator to avoid overload on the optical receiver when using short-distance single-mode fibers (SMFs).

  • Page 32: Appendix C - Lightning Protection

    Appendix C — Lightning Protection RG-ES220GS-P Switch Hardware Installation and Reference Guide Appendix C — Lightning Protection Installing an AC Power Arrester (Lightning Resistance Socket) When an AC power cord is introduced from outdoors and directly connected to the power port of the switch, the AC power port must be connected to an external lightning protection power strip to protect the switch against lightning strokes.
  • Page 33 Appendix C — Lightning Protection RG-ES220GS-P Switch Hardware Installation and Reference Guide rectify the polarity of the connection. If the indicator is still red, the arrester's PE terminal is not grounded. Installing the Ethernet Port Arrester Connect an Ethernet port arrester to the switch to prevent the damage by lightning before connecting an outdoor network cable to the switch.
  • Page 34 Appendix C — Lightning Protection RG-ES220GS-P Switch Hardware Installation and Reference Guide ● The Ethernet port arrester is not delivered with the switch. Please purchase it based on actual requirements. The Ethernet port arrester user manual contains technical parameters and maintenance and installation instructions for the Ethernet port arrester.

  • Page 35: Appendix D - Cabling Recommendations

    Appendix D — Cabling Recommendations RG-ES220GS-P Switch Hardware Installation and Reference Guide Appendix D — Cabling Recommendations When the switch is installed in a standard 19-inch rack, secure the cables around the cable management brackets. Adopt top cabling or bottom cabling according to the actual situation in the machine room. All cable connectors used for transit should be placed at the bottom of the cabinet rather than be exposed outside of the cabinet.
  • Page 36 Appendix D — Cabling Recommendations RG-ES220GS-P Switch Hardware Installation and Reference Guide Figure D-1 Binding Cables (1)  Cables of different types (such as power cords, signal cables, and ground cables) should be separated in cabling and bundling. Mixed bundling is disallowed. When they are close to each other, you are advised to adopt crossover cabling.
  • Page 37 Appendix D — Cabling Recommendations RG-ES220GS-P Switch Hardware Installation and Reference Guide  When cables need to be bent, please bundle them up but do not tie cable them where the cables will be bent, as shown in Figure D-3. Figure D-3 Binding Cables (3) ...
  • Page 38 Appendix D — Cabling Recommendations RG-ES220GS-P Switch Hardware Installation and Reference Guide Figure D-4 Cable Fastening  Hard power cords should be fastened in the terminal connection area to prevent stress on terminal connection and cable.  Do not use self-tapping screws to fasten terminals. ...
  • Page 39 Appendix D — Cabling Recommendations RG-ES220GS-P Switch Hardware Installation and Reference Guide terminal should not be exposed outside the terminal socket when assembled.

  • Page 40: Appendix E - Machine Room Site Selection

    Appendix E — Machine Room Site Selection RG-ES220GS-P Switch Hardware Installation and Reference Guide Appendix E — Machine Room Site Selection  The machine room should be at least 5 km (3.11 miles) away from heavy pollution sources, such as the smelter works, coal mine, and thermal power plant.
