- Page 1 RG-S8600 Series Switches Quick Installation Guide V16.0...
- Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance http://www.ruijienetworks.com Ruijie Networks website: http://webchat.ruijie.com.cn Online customer services: ...
-
Page 4: Table Of Contents
Contents Safety Warning ..................................... 5 Product Overview..................................7 Safety Precautions for Movement ..............................7 Preparation Before Installation..............................8 Installing the Switch ................................... 10 Checking Before Installation ..............................12 Fan ......................................13 Power Supply ..................................... 13 Specification:..................................13 Precaution: ..................................14 System Grounding .................................. -
Page 5: Safety Warning
Safety Warning Power Supply Safety Warning High leakage current, earth connection essential before connecting power supply. There is more than one power input. Be sure that all power cables are pulled out before you power down the system. Static Electricity Protection Warning Electrostatic sensitive device inside. - Page 6 Users are not allowed to repair the parts within the device. Please contact qualified technical personnel if necessary.
-
Page 7: Product Overview

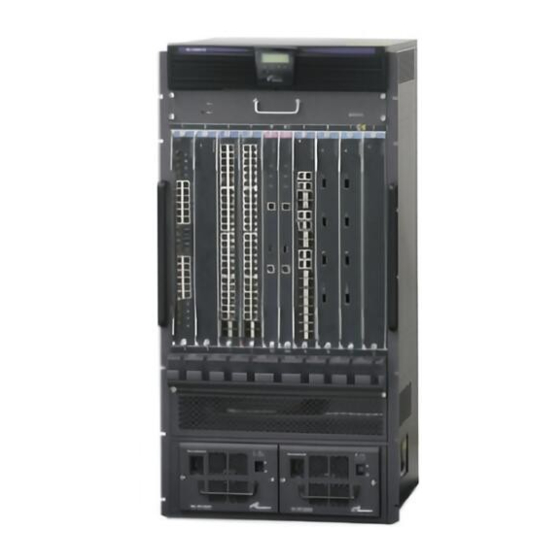

With powerful switching and routing functions and secure intelligent technologies, it can be used together with various series of Ruijie Networks switches to provide users with complete end-to-end solutions. It is ideal for large-scale network core backbone and heavy traffic node switches. -
Page 8: Preparation Before Installation
Figure 2-1 Correctly moving the S8610 switch Figure 2-2 Correctly moving the S8606 switch Figure 2-3 Correctly moving the S8614 switch Figure 2-4 Correctly moving the S8606 B switch Preparation Before Installation Temperature and Humidity Requirements for the RG-S8606/S8610/S8614 Operating temperature 0ºC–40ºC Storage temperature... - Page 9 Temperature and Humidity Requirements for the RG-S8606 B Operating temperature 0ºC–50ºC Storage temperature -40ºC–70ºC Relative humidity 10%–90% Static Discharge Damage Prevention To prevent damage from static electricity, you must pay attention to the following: Proper grounding of the switch and floor. ...
-
Page 10: Installing The Switch
tools Make network cables and grounding Wire stripper, crimping pliers cables. Multimeter Test power supply and DC resistance. Meter Test the insulation resistance and 500V megohmmeter grounding resistance. Note: Users need to prepare some of the tools by themselves . Installing the Switch ... - Page 11 Figure 3-1 Ventilation of RG-S8610 Figure 3-2 Ventilation of RG-S8606...
-
Page 12: Checking Before Installation
Figure 3-3 Ventilation of RG-S8614 Figure 3-4 Ventilation of RG-S8606 B Checking Before Installation Before powering on RG-S8606/S8606 B/S8610/S8614, make sure that: The fan meets the current requirements. For details, refer to Fan. The power system is suitable. For details, refer to Power. ... -
Page 13: Fan
Do not power on the system or do maintenance when the system is powered on by one person. There is no potential risk in the operating area. For example, the power is not grounded; the power is not grounded reliably; or the ground is wet. ... -
Page 14: Precaution
If the power consumption exceeds the power consumption of a power module, please purchase another one. For power supply calculation , please refer to Selecting the Right Power Supplies in “RG-S8600 Series Switch Hardware Installation Manual” It is recommended to use 1+1 redundant power supply (RPS). However, if the total power consumption of all modules exceeds the maximum power of one power supply, the RPS function does not work. -
Page 15: Grounding Description
resistance between the chassis and the ground must be less than 1 ohm. Grounding description There are two kinds of grounding in a machine room: safe grounding and lightning prevention grounding. Safe grounding guarantees the safe of body and switch. A typical example is the AC protection grounding of 3-core socket of power supply bank. -
Page 16: Rg-S8606/S8606 B/S8610/S8614 Grounding Steps
This method is specific for RG-S8606/S8606 B/S8610/S8614 chassis using AC power. RG-S8606/S8606 B/S8610/S8614 Grounding Steps Loosen and take off the nut on the grounding pole of the rear chassis. Lock the terminal of the grounding cable to the grounding pole. ... - Page 17 [Troubleshooting] 1. Place the switches of all the power modules to OFF. Check if the cables of the cabinet have been correctly connected. 2. Check whether the cabinet power sockets and DC power modules are tightly connected in a correct way. 3.
- Page 18 2. Check whether the configuration of the serial port on the super terminal is the same as configuration parameters of the switch. If not, modify the serial port configuration parameters. 3. If there is still no serial port printed information, please contact Ruijie Customer Service Department for technical support.
- Page 19 8. Enter the privileged mode to configure and save the password. 9. Power off/on the switch once, and log in to the switch with password to view the original configuration. The original configuration still exists. If above-mentioned two methods do not take effect, contact Ruijie Networks for technical assistance.
