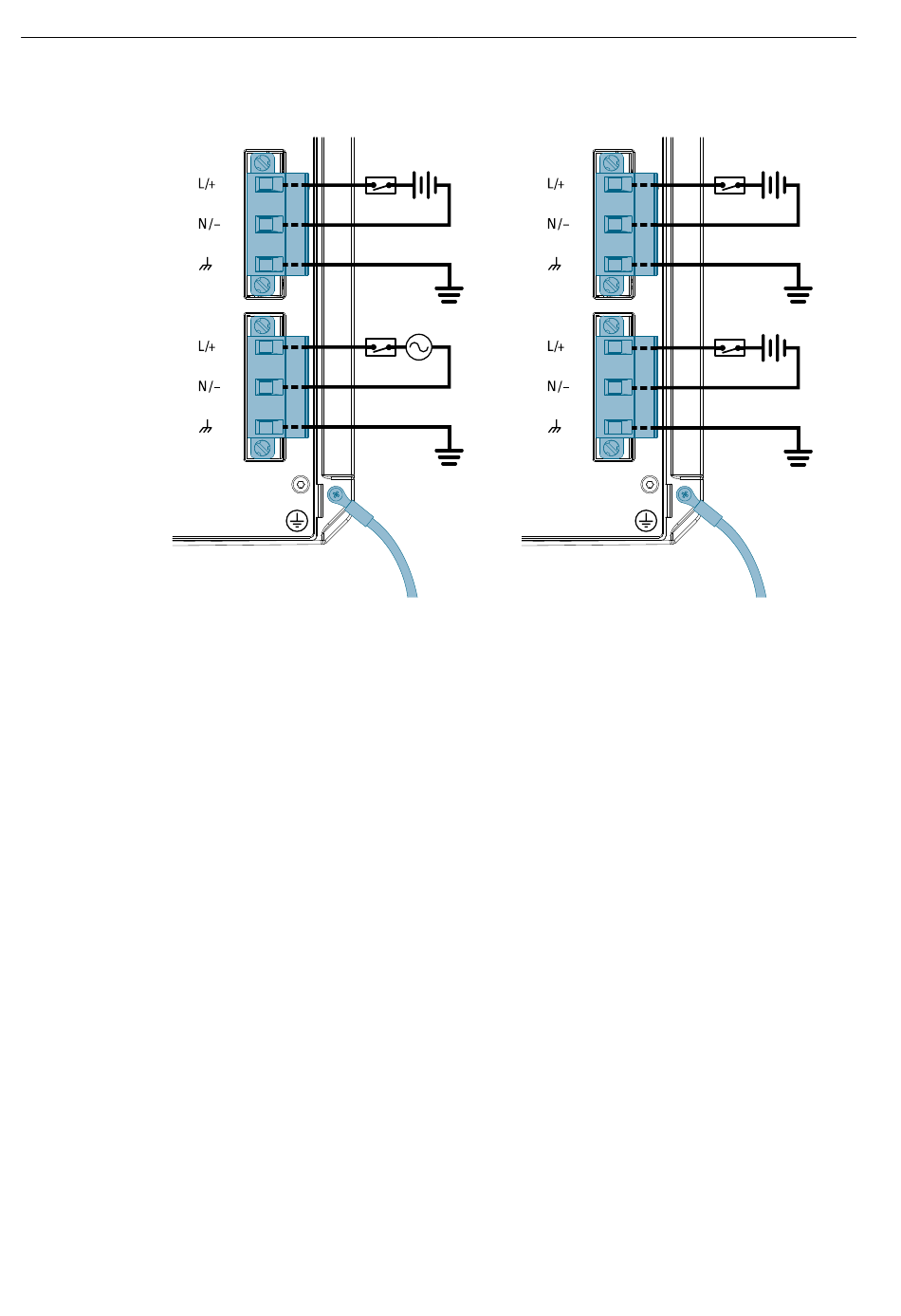

Figure 2.12
RUGGEDCOM RSG908C
Equipment Manual, 11/2023, C79000-G8976-1404-15
-
+
Dual HI AC and DC Power
Supplies
2.5.2 Wiring Examples
Figure 2.13 Dual HI DC Power Supplies
Installing the Device
-
+
-
+
17
