Installing the Device
2.3.2 Mounting the Device to a Panel
2.
3.
10
1
1
Screw (M4)
1
Panel Mount Adapter
2

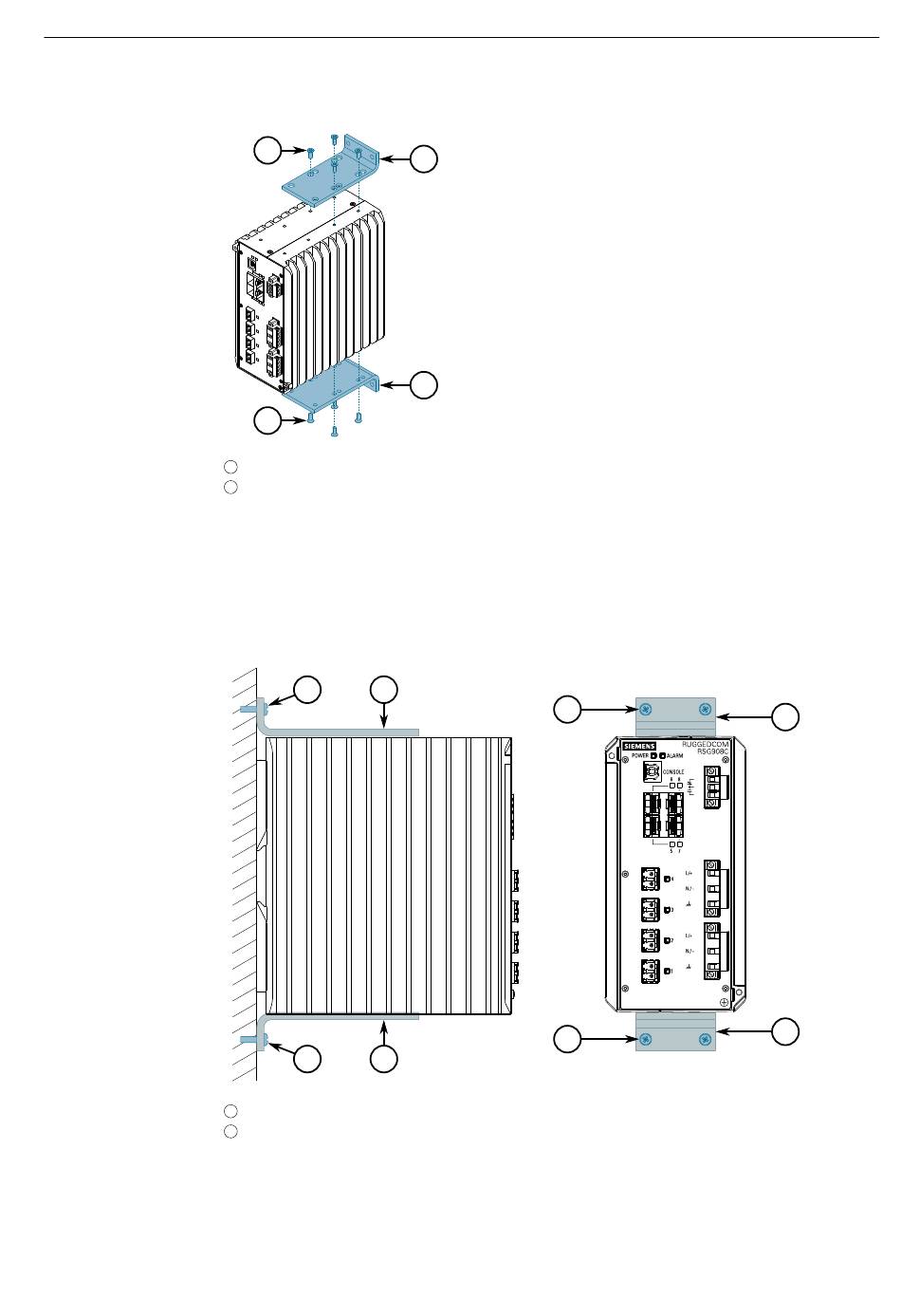

Figure 2.3 Panel Mount Adapter Assembly
Prepare mounting holes in the panel where the device is to be installed.
Place the device against the panel and align the adapters with the mounting
holes.
1 2
1 2
Screw (M5 or #10-24)
1
Panel Mount Adapter
2
Figure 2.4 Panel Mounting
2
2
1
1
2
2
