Uplift Desk V2 F500 C-Frame Manual page 12

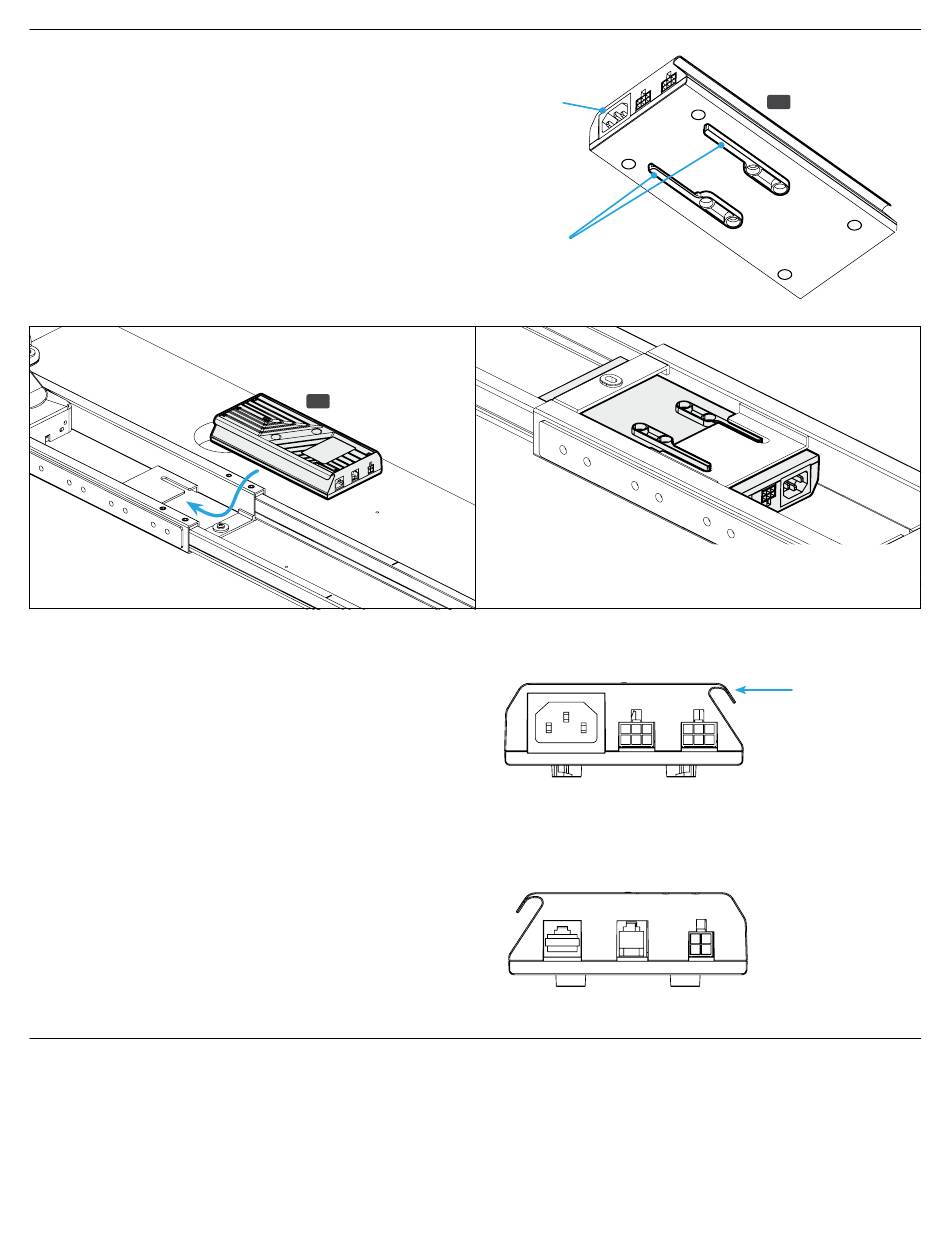

Step 11 - Attach Control Box
The Control Box (P7) must be attached to the desk frame
for the desk to function properly. We recommend placing
it on the same side as the Keypad. It should be attached
to the Crossbar End on either side of the desk frame.
A. Position the Control Box on the side of the desk you
would like to attach it to with the port labeled "AC"
facing the nearest Leg.
B. Slide the Control Box onto the Crossbar End so that
the mounting hooks on the bottom of the Control Box
interlock with the slots in the Crossbar End capture
plate.
Step 12 - Connect Cables
AC M1
A. Connect the Power Cable
Control Box labeled "AC".
B. Connect the cable from the Leg closest to the Control
Box directly into the port labeled "M1".
C. Connect the Leg Extension Cable
Attachment Tabs
labeled "M2", route the Leg Extension Cable back under
the cable channel along the side of the Control Box,
and connect it to the cable from the furthest Leg.
D. Connect the Keypad cable into the Control Box port
labeled "HS".
The Control Box port labeled "F" is used to connect the
Bluetooth Adapter (FRM125) for use with the UPLIFT
Desk App.
The Control Box port labeled "DC" is used to connect
low voltage accessories with compatible connectors.
12
P7
M2
(P9) to the port on the
Leg Extension Cable
Channel
(P10) into the port
AC Port
Mounting Hooks
AC M1 M2
Top view of desk (with desktop hidden) showing
Attachment Tabs
the Control Box mounting hooks engaged with
the Crossbar End capture plate slots.
HS F DC
AC M1 M2
HS F
P7
Leg Extension Cable
Channel
Leg Extension
Cable Channel
DC
H
