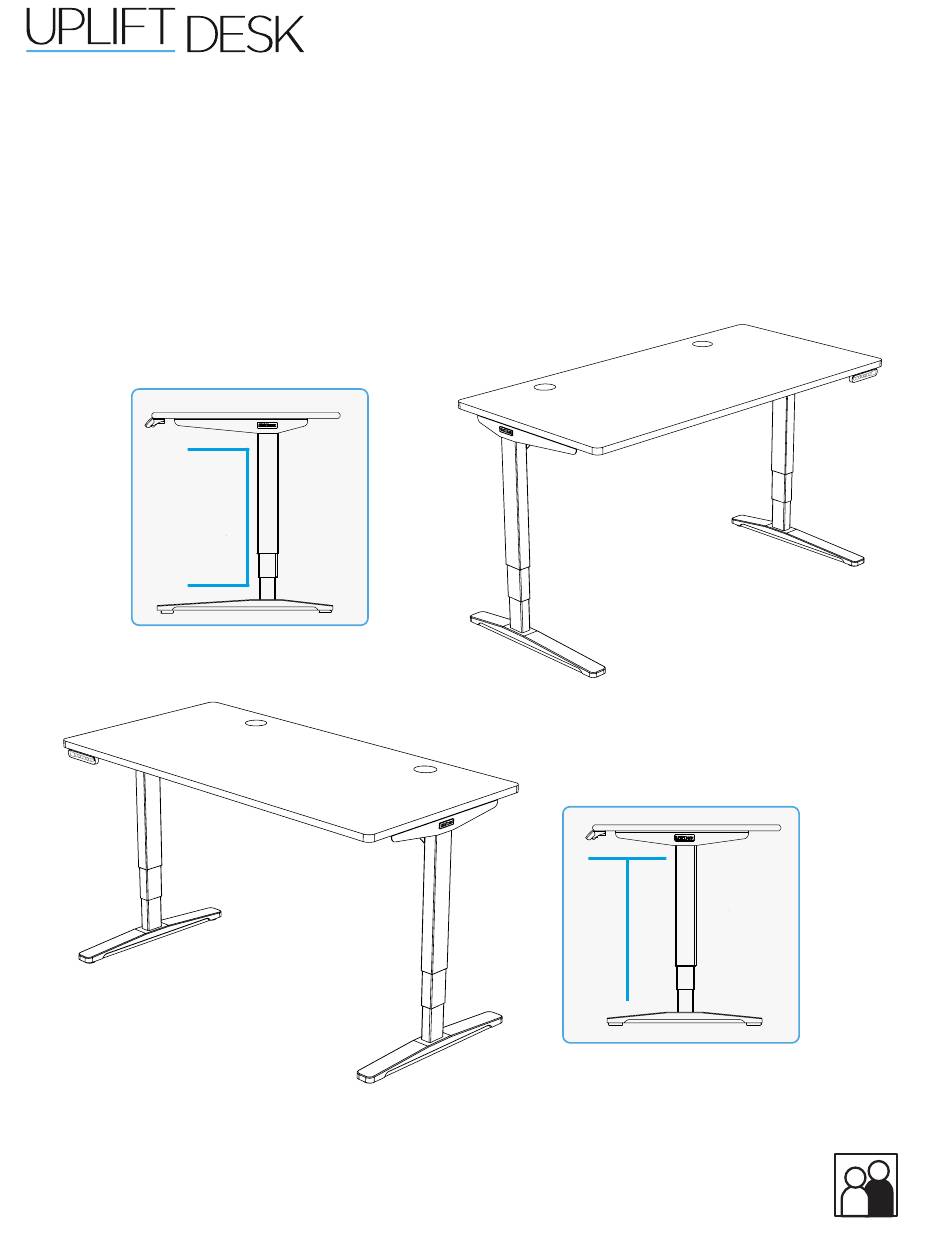

V2 2-Leg Standing Desk
(C-Frame and T-Frame)
C-Frame
T-Frame
C-Frame
T-Frame
two person
For assembly assistance,
assembly
visit upliftdesk.com/2leg-com or call 800-349-3839
or email support@upliftdesk.com
355 lb
Patent Pending, ©2022 UPLIFT Desk®. All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Uplift Desk V2

  • Page 1 ® T-Frame C-Frame V2 2-Leg Standing Desk (C-Frame and T-Frame) C-Frame T-Frame C-Frame T-Frame two person For assembly assistance, assembly visit upliftdesk.com/2leg-com or call 800-349-3839 or email support@upliftdesk.com 355 lb Patent Pending, ©2022 UPLIFT Desk®. All Rights Reserved...
  • Page 2: Safety And Warnings

    WARNING: Never use the desk if the power cord or plug is damaged as this can cause a risk of fire and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way. WARNING: Risk of serious injury or death.
  • Page 3 Note: Desk image is for reference only. Desk shape and leg quantity or style may change based on the desk configuration ordered. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 4: Package Contents

    Package Contents Box Marked: Core 1 and FRM500 Crossbar End Crossbar Rail Control Box Keypad (qty 2) (qty 2) (qty 2) (qty 1) (qty 1) (Packed in this box, or an accessory box) Power Cable Anchor Plate Wire Extension Cable Management Tray (qty 1) (qty 2)
  • Page 5: Component Diagram

    Component Diagram Side Bracket Crossbar End Crossbar Rail M8x8 Set Screw M6x10 Machine Screw M6x14 Machine Screw Logo Plate Foot V2 2-Leg C-Frame shown © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 6 Desk Assembly Instructions Step 1 - Inventory of Parts A. For ease and safety, we recommend using two people for assembly. Before assembly, consider where you want your desk to be located. Since your new desk is height adjustable, you will want it located a safe distance from anything that could obstruct the desk from being raised or lowered (like a wall mounted shelf or cabinet).
  • Page 7 Leg of your desk when it is flipped upright. Note: For T-Frames it does not matter which Leg assembly you use in this step since they are the same. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 8 Step 5 (if applicable) - Drill Desktop Holes with pre-drilled holes without pre-drilled holes Skip this step and proceed to Step 6 if your desktop has threaded metal inserts or pre-drilled holes. See images showing a desktop with pre-drilled holes and inserts and without pre-drilled holes and inserts.
  • Page 9 M8x10 Machine Screws (H7), but do not tighten the screws yet. B. Use one Screw and Washer to fasten the Crossbar End to the desktop as shown in the image below, do not tighten completely. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 10 C. Position the other Leg assembly onto the Crossbar Rails (P6) and repeat the steps above for attaching the other Leg. D. Tighten all of the screws that were started in this step. Step 7 - Center Rail Positioning A. Slide each Crossbar Rail (P6) left or right until the center indicator marks are approximately centered between the...
  • Page 11 Box must be attached to the frame for the desk to function properly. Top view of desk showing the Control Box tabs and Crossbar End slots (the desktop has been removed from the diagram for illustrative purposes). © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 12: Step 10 - Cable Connections

    Step 10 - Cable Connections A. Connect the cable of the Keypad (P8) into the Control Box (P7) port labeled “HS”. B. Connect the short cable of the Leg closest to the Control Box directly into the white port of the Control Box marked “M2”. This port is located on the same end as the Keypad port marked “HS”.
  • Page 13 Don’t forget to check the Feet screws and the screw located underneath the Control Box on C-Frames. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 14: Accessory Installation

    Attach the tray to your desktop using two #10x5/8” Wood Screws (H14). Anchor Plates (optional) Various UPLIFT Desk accessories were designed to attach to the patented mounting points located along the sides of the Crossbar Ends...
  • Page 15: Desk Placement

    C. Release the button. Your desk is now ready for use! If you are using an Advanced Keypad, see additional Keypad instructions for further information on how to use your Keypad. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 16: Keypad Lock

    Programming (Advanced Keypads only) These UPLIFT Desk programming instructions are compatible only with Advanced Keypads. For Advanced Paddle Keypad programming steps, refer to the instructions received with that Keypad. Height Calibration This feature will help you ensure that the numeric display matches the actual height to the top of the desktop in the desk’s lowest position.
  • Page 17: Display Units

    Note: If your desk memory settings were previously set outside of the new minimum and maximum height settings, they will default to the new minimum and maximum settings. To set new minimum and maximum height settings, you will need to first remove the current minimum and maximum settings. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 18: Troubleshooting

    If the error message persists after performing the Reset Procedure above or if there is a height difference between the Legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone number listed on these instructions. Starting & Stopping If your desk is continuously starting and stopping as you try to raise or lower it, check to make sure the Control Box is attached securely to the frame.
  • Page 19 Notes...
  • Page 20 Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of the © scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: 40032391v.C...
