Uplift Desk V2-Commercial Manual
4-leg standing desk frame
Hide thumbs
Also See for V2-Commercial:
- Assembly instructions manual (21 pages) ,
- Instructions manual (21 pages)
Table of Contents
Related Manuals for Uplift Desk V2-Commercial
Summary of Contents for Uplift Desk V2-Commercial

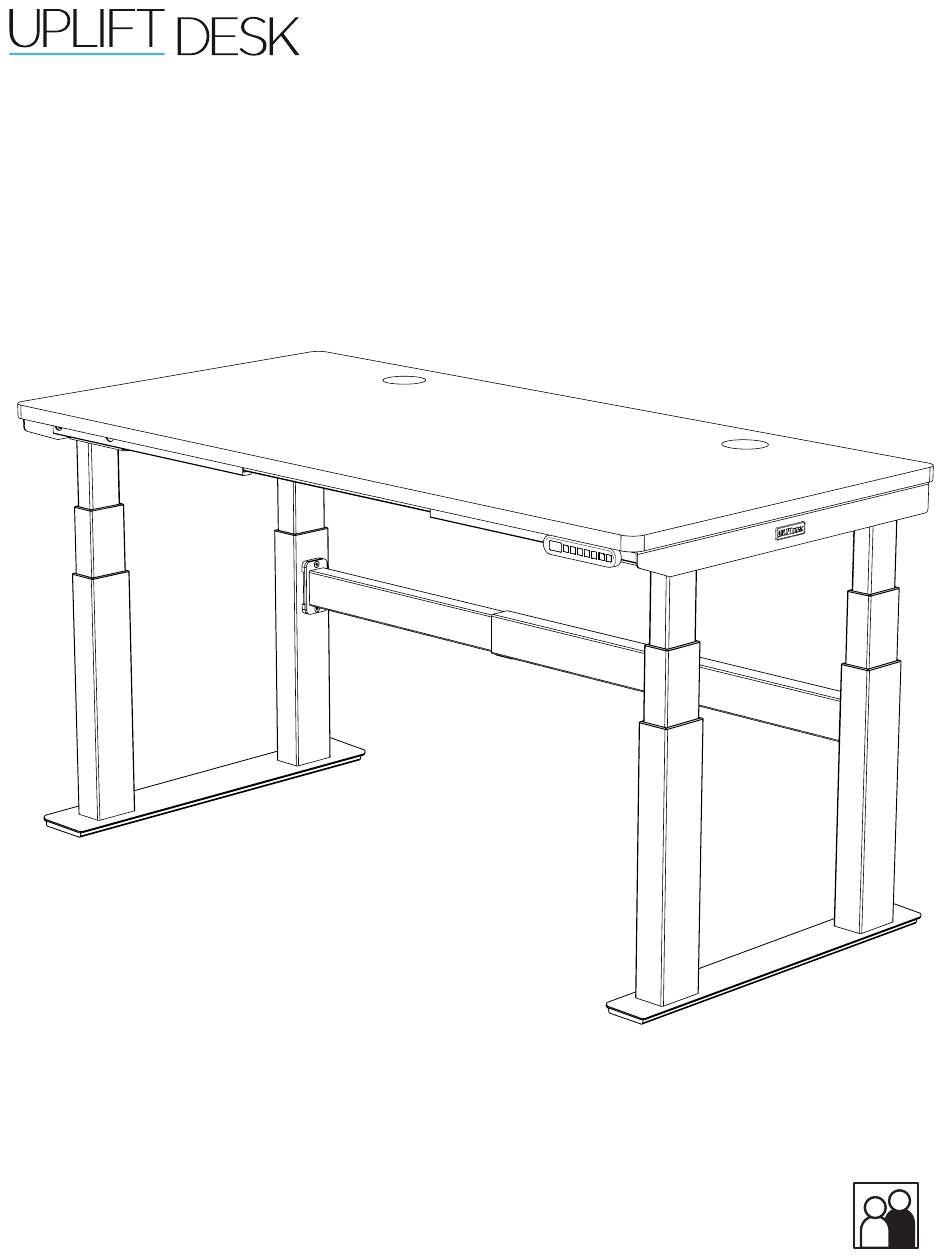

- Page 1 ® V2-Commercial 4-Leg Standing Desk Frame two person For assembly assistance, assembly visit upliftdesk.com/4leg-com or call 800-349-3839 or email support@upliftdesk.com 355 lb Patent Pending, ©2022 UPLIFT Desk®. All Rights Reserved...
- Page 2 WARNING: Never use the desk if the power cord or plug is damaged as this can cause a risk of fire and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way. WARNING: Risk of serious injury or death.
- Page 3 Note: Desk image is for reference only. Desk shape and leg quantity or style may change based on the desk configuration ordered. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 4 Package Contents Components (packed in multiple boxes) P1 a P1 b Back Leg Front Leg Crossbar End Crossbar Rail Side Bracket Control Box (qty 2) (qty 2) (qty 4) (qty 4) (qty 2) (qty 1) left right Keypad Power Cable Leg Extension Wire Foot...
- Page 5 Component Diagram Side Bracket Crossbar End Crossbar Rail Front Leg M6x10 Machine Screw M8x8 Set Screw Crossbar Side Bracket M6x12 Flat Head Screw Back Leg Foot M6x14 Machine Screw © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Desk Assembly Instructions Step 1 - Inventory of Parts A. For ease and safety, we recommend using two people for assembly. Before assembly, consider where you want your desk to be located. Since your new desk is height adjustable, you will want it located a safe distance from anything that could obstruct the desk from being raised or lowered (like a wall- mounted shelf or cabinet).
- Page 7 C. Move the Side Bracket out of the way and drill pilot holes at your pencil marks using a 1/8” drill bit. D. Follow the same pre-drilling process with the other Side Bracket at the other end of the desktop. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 Step 5 - Side Bracket Attachment (first side) A. Align the holes in the Side Bracket (P4) with the holes or threaded metal inserts in the desktop. Note: Be sure that the tapered end of the Side Bracket is pointing towards the front left of the desktop where the four Keypad attachment holes are located.
- Page 9 1/2” from the tip. Stop drilling just before the tape touches the Crossbar Ends. C. Drill pilot holes at your pencil marks using a 1/8” drill bit. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 10 Step 10 - Crossbar End Attachment H4 a A. Using a Phillips Head Screwdriver, loosely insert one #10x3/4” Wood Screw (H4a) and one Washer (H5) through each Crossbar End and into the desktop as shown. B. Once all four screws are started, tighten them but be careful to not overtighten to avoid stripping.
- Page 11 C. Once all eight screws have been started, tighten them with the 4 mm Allen Wrench. D. Repeat the previous steps for the second Foot. E. Do one final tightening of all foot screws. Tight foot screws add significant stability. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Step 14 - Caster Installation (optional) If you purchased Casters for your desk, we recommend installing them now. A. First, remove the pre-installed Leveling Glides from the Feet by rotating them counterclockwise to unthread them from the mounting holes. B. Install a Caster in each of the Leveling Glide holes by turning the stem of the Caster clockwise, threading it into the hole.
- Page 13 You might want to save some of the Cable Mounts for cable management of personal devices after completing the desk assembly. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 14: Desk Placement
Wire Management Tray (optional) Most UPLIFT desktops include two pre-drilled holes about 12” apart located near the back of the desktop. If your desktop includes grommets, these holes will be located between them. These holes are meant for attaching the included Wire Management Tray (P9). - Page 15 C. Release the button. Your desk is now ready for use! If you are using an Advanced Keypad, see the Programming section for further information on how to use your Keypad. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 16: Keypad Lock
Programming (Advanced Keypads only) These UPLIFT Desk programming instructions are compatible only with Advanced Keypads. For Advanced Paddle Keypad programming steps, refer to the instructions received with that Keypad. Height Calibration This feature will help you ensure that the numeric display matches the actual height to the top of the desktop in the desk’s lowest position. -
Page 17: Display Units
Note: If your desk memory settings were previously set outside of the new minimum and maximum height settings, they will default to the new minimum and maximum settings. To set new minimum and maximum height settings, you will need to first remove the current minimum and maximum settings. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... -
Page 18: Starting And Stopping
If the error message persists after performing the Reset Procedure above or if there is a height difference between the Legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone number listed on these instructions. Starting & Stopping If your desk is continuously starting and stopping as you try to raise or lower it, check to make sure the Control Box is attached securely to the Frame. - Page 19 Notes...
- Page 20 Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of the © scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: 90.014.01.0687v.F AI-FRM680-1.0...
