Uplift Desk V2 F500 C-Frame Manual page 10

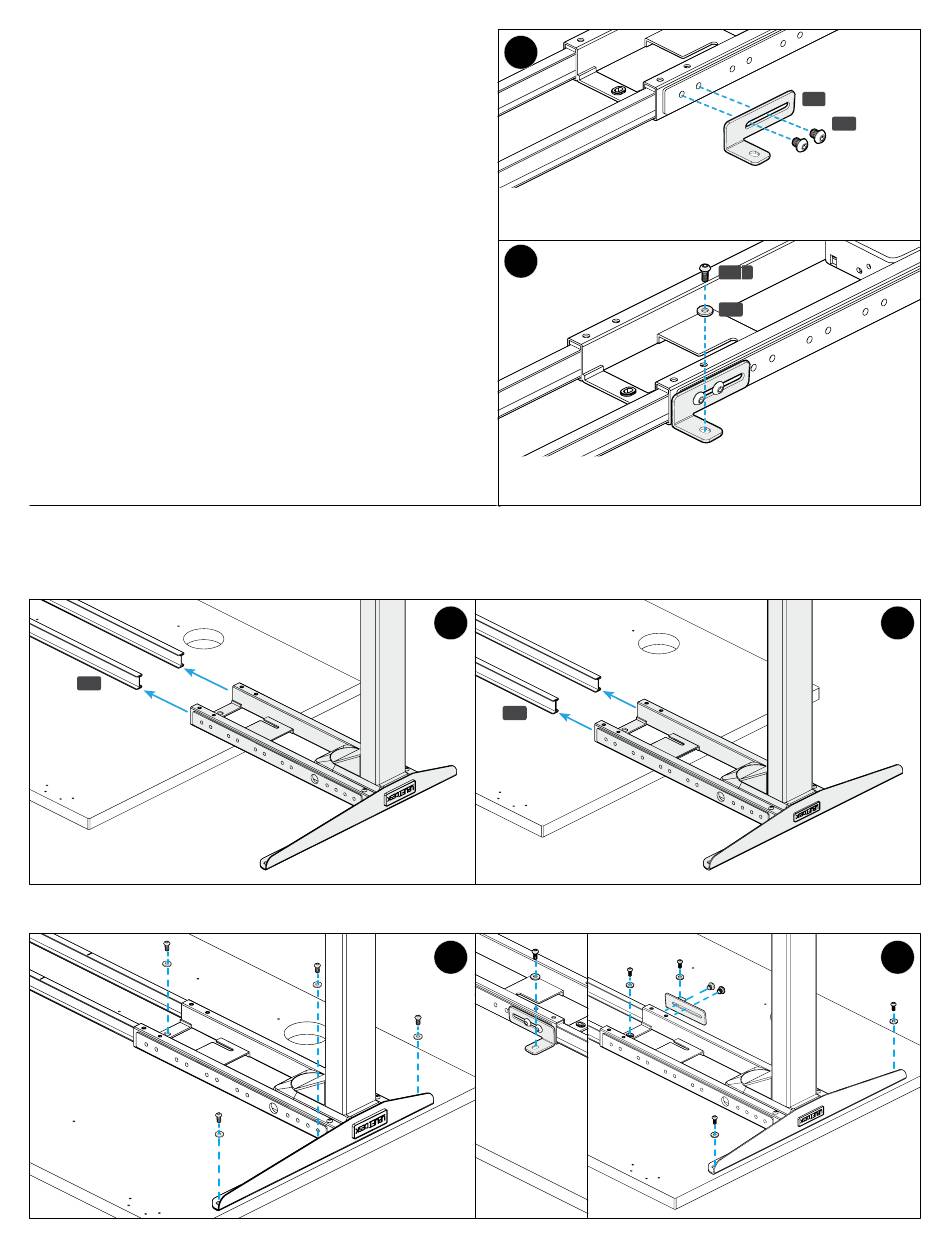

Attach Crossbar End (T-Frame on desktops that
came with pre-drilled holes or metal threaded
inserts)
A. Position a Crossbar End Adapter
shown. This will be on the side of the Crossbar End
facing the back of the desktop.
B. Loosely insert two M8 x 10 Machine Screws
through the Crossbar End Adapter and into the
threaded holes shown on the Crossbar End.
C. Use a Phillips Screwdriver to insert a Screw and
Washer selected above through the hole in the
Crossbar End Adapter and into the pre-drilled hole or
metal threaded insert in the desktop. Do not tighten
completely.
Step 8 - Attach Second Leg Assembly
A. Position the other Leg assembly as shown and slide the Crossbar End onto the ends of the Crossbar Rails (P6).
P6
B. Repeat the steps from Step 7 to attach the Side Bracket and Crossbar End of second Leg assembly.
10
(P3) in the orientation
(H7)
C
T
C
T
C
T
Crossbar End Adapters attach to the Crossbar
C
Ends on the side facing the back of the desktop.
T
Crossbar End Adapters attach to the Crossbar Ends
on the side facing the back of the desktop.
P6
P3
H7
H4 b
H5
C
T
C
T
