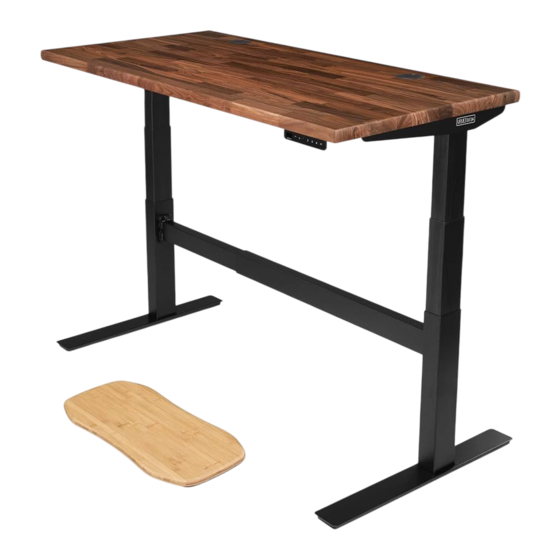

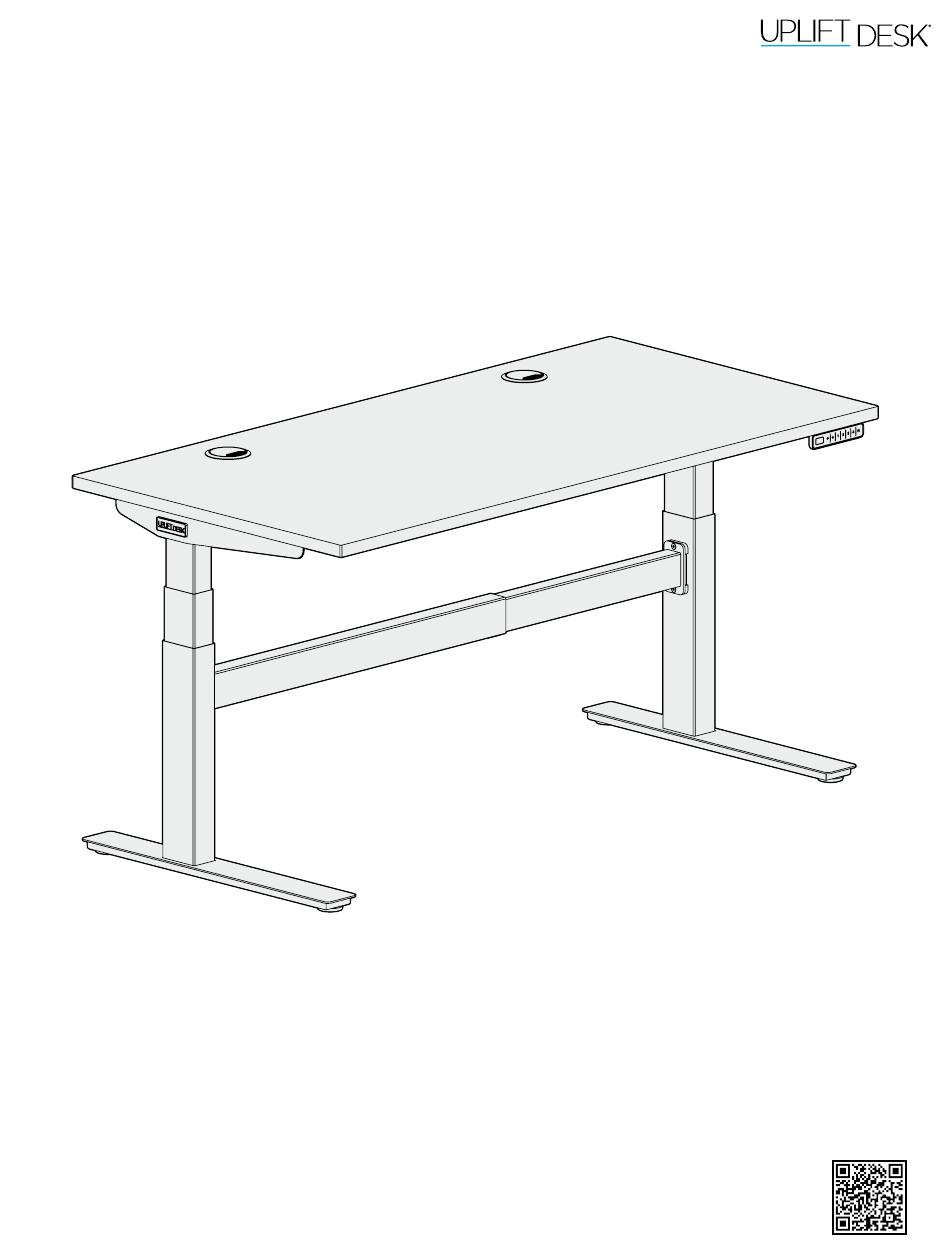

- Page 1 V2-Commercial 2-Leg Standing Desk F600 (C-Frame & T-Frame) C-Frame shown Scan QR code for For assembly assistance, product webpage visit upliftdesk.com/contact, call 800-349-3839, or email info@upliftdesk.com ©2023 UPLIFT Desk®. All Rights Reserved US patent no. 11,109,672 B2...
- Page 2 WARNING: Never use the desk if the power cord or plug becomes damaged as this can cause a risk of fire and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way. WARNING: Risk of serious injury or death.
- Page 3 Desk Spacing and Clearance Distances Desk image is for reference only and may not match your desk model. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 4: Package Contents
Package Contents F600 Main Box Components Crossbar End Crossbar Rail Control Box Keypad qty 2 qty 2 qty 2 Type varies Power Cable Anchor Plate Wire Extension Cable qty 2 Management Tray F600 T-Frame F600 T-Frame F600 C-Frame Feet & Side Brackets Box Components Foot Side Bracket Logo Plate... - Page 5 Side Bracket Crossbar End Crossbar Rail M8 x 8 Set Screw M6 x 10 Machine Screw Crossbar M6 x 14 Machine Screw M6 x 12 Flathead Screw Logo Plate Foot C-Frame shown © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 6: Step 1 - Inventory Of Parts
Assembly Instructions Step 1 - Inventory of Parts A. To avoid damage to your floor or desktop, assemble the desk on a clean carpet or blanket. B. Lay out all parts from each box and ensure you have everything listed in the package contents of this manual before throwing away any packaging. - Page 7 • C-Frames have three holes in the Side Brackets • T-Frames have two holes in the Side Brackets D. Make a pencil mark in the center of the Crossbar End hole. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 IMPORTANT: DRILL NO DEEPER THAN 1/2” to avoid drilling through your desktop. To ensure this, wrap a piece of tape around your drill bit 1/2” from the tip. Stop drilling just before the tape touches the desktop. 0.5” E. Move the Leg assembly out of the way and drill ½” deep pilot holes at your pencil marks using a 1/8”...
- Page 9 Crossbar End Adapter and into the pre-drilled hole or metal threaded insert in the desktop. Do not tighten completely. Crossbar End Adapters attach to the Crossbar Ends on the side facing the back of the desktop. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 10 Step 8 - Attach Second Leg Assembly A. Position the other Leg assembly as shown and slide the Crossbar End onto the ends of the Crossbar Rails (P6). B. Repeat the steps from Step 7 to attach the Side Bracket and Crossbar End of second Leg assembly. C.
- Page 11 Crossbar End capture plate. Top view of desk (with desktop hidden) showing the Control Box mounting hooks engaged with the Crossbar End capture plate slots. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 12: Step 12 - Connect Cables
Attachment Tabs Step 12 - Connect Cables Leg Extension Cable Channel A. Connect the Power Cable (P9) to the port on the Control Box labeled “AC”. Leg Extension Cable Channel B. Connect the cable from the Leg closest to the Control Box directly into the port labeled “M1”. - Page 13 Crossbar into the two holes in the outer Crossbar section where the two halves slide together and tighten them using the 4mm Allen Wrench. IMPORTANT: Ensure that all screws are tight before proceeding! © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 14 Accessory Installation If you have purchased accessories that attach to your desk such as Casters, Wire Management, CPU Holders, Keyboard Trays, or Desk Drawers, it is easiest to install them now before flipping the desk over. For accessories purchased separately, refer to the instructions provided with those products. Install Casters (optional) A.
- Page 15 Install Accessory Anchor Plates (optional) Some UPLIFT Desk accessories are designed to attach to the patented mounting points located on front and back of the Crossbar Ends. Some of these accessories require the use of the included Anchor Plates (P11). Refer to the instructions provided with each accessory for specific mounting instructions.
- Page 16 Insert Grommet Covers (optional) Follow the steps below for installing Grommet Covers, if a different grommet option was selected, follow the instructions included with your grommet option. A. Place the Grommet Covers over the grommet holes and press down until the edges of the Grommet Covers are flush with the desktop surface.
-
Page 17: Keypad Lock
If you have an Advanced Keypad, see the Programming section below for further information on how to use your Keypad. Programming (Advanced Keypads only) These UPLIFT Desk programming instructions are compatible with all UPLIFT Advanced Keypads except the Advanced Paddle Keypad. -
Page 18: Units Of Measurement
Units of Measurement One-Touch, Constant-Touch, or Double-Tap Switch between inches and centimeters on your display: One-touch is the default setting of the control box and 1. Hold the down button until the desk reaches its lowest requires only a single touch of a keypad button to move position. -
Page 19: Starting And Stopping
If the error message persists after performing the reset procedure or if there is a height difference between the Legs of more than 1.5”, email us at support@upliftdesk.com or call 800-349-3839. Perform the desk reset procedure any time the desk is unplugged or loses power. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 20 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
