Uplift Desk V2 Programming Instructions

PROGRAMMING YOUR UPLIFT DESK

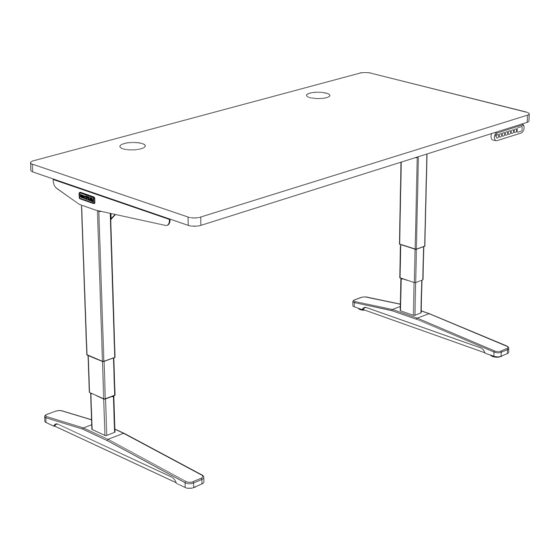

V2 & V2 COMMERCIAL 2-LEG HEIGHT ADJUSTABLE FRAME
C7

HEIGHT CALIBRATION

Make sure the numeric display matches the actual height of the desktop in its lowest position.
1. Hold the DOWN button on the Keypad until the desk reaches its lowest height, then release.
2. Measure the height from the floor to the underside of the desktop. If the displayed height does
not match your measurement, follow the next steps.
3. Hold the DOWN button again until the LED display reads "RST".
H6 H7
4. Press the "M" button until the numeric display begins flashing.
5. Press the UP or DOWN button to set the desk to the measured height.
6. Once display changes back to "RST", Hold the DOWN button until the desktop lowers slightly,
then rises slightly and the display changes back to the numeric height setting, then release.

KEYPAD LOCK

The Keypad can be locked to prevent accidental activation or movement of the desk and to pre-
vent desk settings from being accidentally changed by children or coworkers.
To lock: Press and hold "M" button until display changes to "LOC".
To unlock: Press and hold "M" button until display changes to numeric height setting.
NOTE: If a power outage occurs, the program will automatically return to the unlocked setting.

MEMORY SETTINGS

Save up to four commonly used desk heights and recall them quickly.
l. Use the UP or DOWN button to move the desk to the desired height.
2. Press the "M" button.
3. Press the "1, 2, 3, or 4" button to assign the current height to a number on the keypad.
4. To bring the desk back to any of those assigned heights, press the numbered button.
CONSTANT-TOUCH & ONE-TOUCH
These steps allow the desktop to be set to either One-Touch or Constant-Touch. One-Touch requires
only a single touch of the "1, 2, 3, or 4" button to move the desktop to a preset memory location.
One-Touch is the default setting. Constant-Touch requires a continuous touch of the "1, 2, 3, or 4" but-
ton to move the desktop to a preset memory location.
Change between One-Touch and Constant-Touch:
l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.
2. Hold the DOWN button again until display flashes "RST".
3. Press the "1" button until display shows "10.1" (One-Touch) or "10.2" (Constant-Touch)
and goes back to "RST".
Note: While "RST" is still flashing, you can press the "1" button as many times as you'd like
to toggle between the two settings.
4. Hold the DOWN button until the desktop lowers slightly, then raises slightly, and the display
changes back to the numeric height setting, then release.
© UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com
C9
These UPLIFT Desk programming instructions
are compatible only with Memory keypads.
H4a
H1 H2 H3
H4b
H5
*Note: "RST" will look like
"ASr" on the display
®
