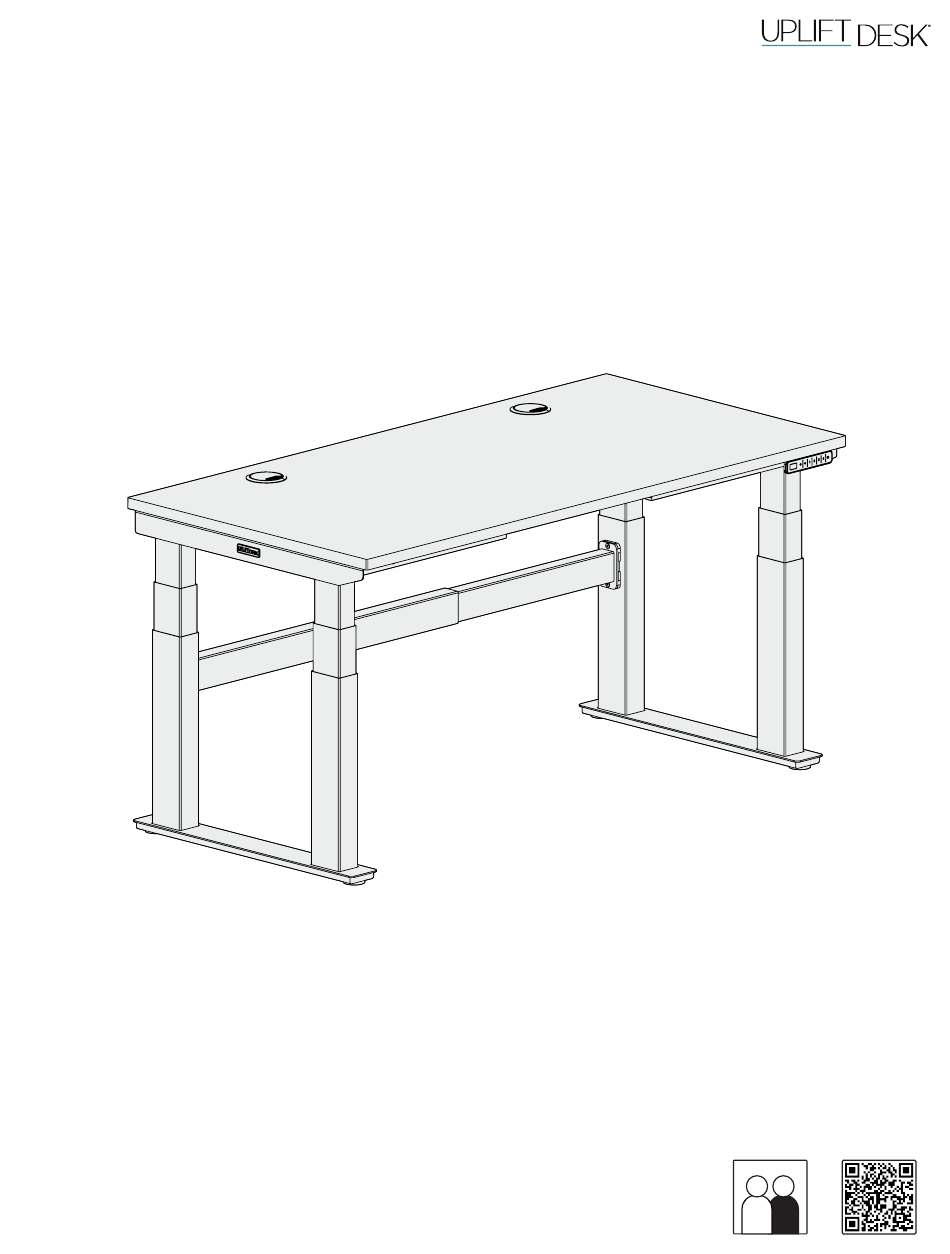

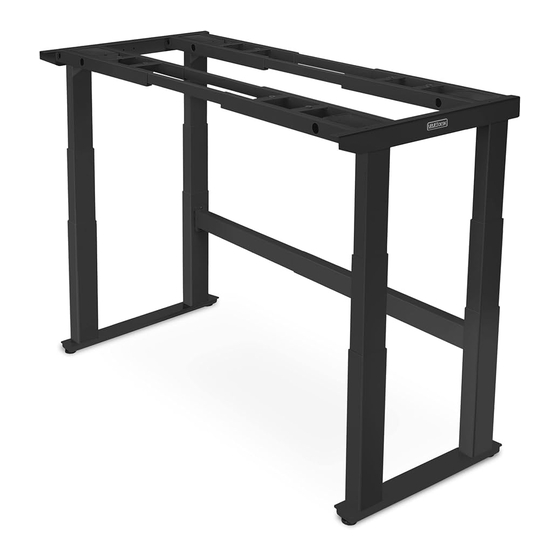

V2-Commercial 4-Leg
Standing Desk
Work Better. Live Healthier
UPL941
Two person
Scan QR code for
assembly
product webpage
For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email support@upliftdesk.com
©2023 UPLIFT Desk®. All Rights Reserved. Patented

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2-Commercial UPL941 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Uplift Desk V2-Commercial UPL941

  • Page 1 V2-Commercial 4-Leg Standing Desk Work Better. Live Healthier UPL941 Two person Scan QR code for assembly product webpage For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email support@upliftdesk.com ©2023 UPLIFT Desk®. All Rights Reserved. Patented...
  • Page 2 WARNING: Never use the desk if the power cord or plug becomes damaged as this can cause a risk of fire and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way. WARNING: Risk of serious injury or death.
  • Page 3 Desk Spacing and Clearance Distances Desk image is for reference only and may not match your desk model. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 4: Package Contents

    Package Contents Components (packed in multiple boxes) Back Leg Front Leg Crossbar End Crossbar Rail Side Bracket Control Box qty 2 qty 2 qty 4 qty 4 qty 2 left right Keypad Power Cable Wire Foot Control Extension Cable Management Tray qty 2 Box Bracket qty 4...
  • Page 5 Crossbar Rail Front Leg M6 x 10 Machine Screw M8 x 8 Set Screw Crossbar Side Bracket M6 x 12 Flat Head Screw Back Leg Foot M6 x 14 Machine Screw © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 6: Step 1 - Inventory Of Parts

    Step 3 - Adhesive Pad Application A. Peel the backing off of four Adhesive pads (H12) place onto one of the Side Brackets (P4) on the side adjacent to the UPLIFT Desk logo plate where shown. B. Repeat for the second Side Bracket.
  • Page 7 C. Move the Side Bracket out of the way and drill pilot 0.5” holes at your pencil marks using a 1/8” drill bit. D. Follow the same pre-drilling process with the other Side Bracket at the other end of the desktop. Tape © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 8 Step 5 - Side Bracket Attachment (first side) A. Align the holes in the Side Bracket (P4) with the holes or threaded metal inserts in the desktop. NOTE: Be sure that the tapered end of the Side Bracket is pointing towards the front of the desktop.
  • Page 9 1/2” from the tip. Stop drilling just before the tape touches the Crossbar Ends. C. Drill pilot holes at your pencil marks using a 1/8” drill bit. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 10 Step 10 - Crossbar End Attachment H4 a A. Using a Phillips Head Screwdriver, loosely insert one #10 x 3/4” Wood Screw (H4a) and one Washer (H5) through each Crossbar End and into the desktop as shown. B. Once all four screws are started, tighten them but be careful to not overtighten to avoid stripping.
  • Page 11 Keypad’s mounting holes. C. Using a Phillips Head Screwdriver, attach the Keypad to the desktop with two #10 x 5/8” Wood Screws (H14). Be careful to not overtighten to avoid stripping. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 12: Step 16 - Connect Cables

    E. Connect the Keypad cable into the Control Box port labeled “HS”. The Control Box port labeled “F” is used to connect the Bluetooth Adapter (FRM125) for use with the UPLIFT Desk App. The Control Box port labeled “DC” is used to connect low...
  • Page 13 F. Insert two M8 x 8 Set Screws (H3) included with the Crossbar into the two holes at the middle of the Crossbar assembly where the two telescoping halves slide together and tighten them using the Allen Wrench. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 14 Accessory Installation Now is a good time to install any accessories such as the Wire Management Tray, CPU Holder, Keyboard Tray, or other items that attach to the underside of your desktop. This section will cover accessories that are included with your desk frame. For other accessories, refer to the instructions that were provided with those products.
  • Page 15: Desk Placement

    Keypad is facing up and the back of the Feet are touching the floor. B. Readjust your grip and continue to rotate the desk until it is rightside up with both Feet completely on the floor. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 16 Insert Grommet Covers (optional) Follow the steps below for installing Grommet Covers, if a different grommet option was selected, follow the instructions included with your grommet option. A. Place the Grommet Covers over the grommet holes and press down until the edges of the Grommet Covers are flush with the desktop surface.
  • Page 17: Keypad Lock

    If you have an Advanced Keypad, see the Programming section below for further information on how to use your Keypad. Programming (Advanced Keypads only) These UPLIFT Desk programming instructions are compatible with all UPLIFT Advanced Keypads except the Advanced Paddle Keypad.
  • Page 18: Units Of Measurement

    Units of Measurement One-Touch, Constant-Touch, or Double-Tap Switch between inches and centimeters on your display: One-touch is the default setting of the control box and 1. Hold the down button until the desk reaches its lowest requires only a single touch of a keypad button to move position.
  • Page 19: Starting And Stopping

    If the error message persists after performing the reset procedure or if there is a height difference between the Legs of more than 1.5”, email us at support@upliftdesk.com or call 800-349-3839. Perform the desk reset procedure any time the desk is unplugged or loses power. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 20 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
