Uplift Desk V2 Manual

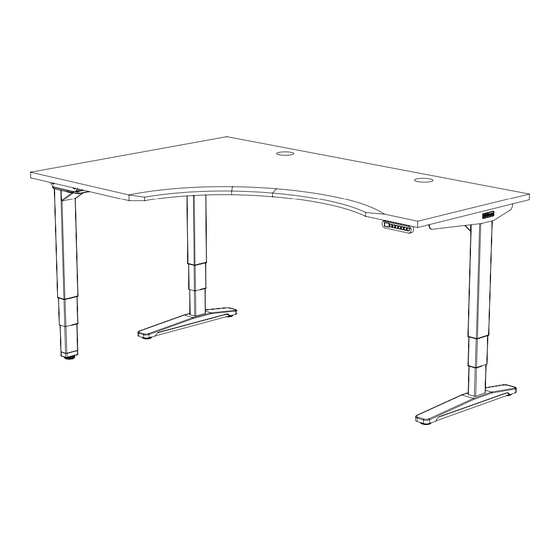

L-shaped standing desk frame for curved corner tops
Hide thumbs
Also See for V2:
- Manual (21 pages) ,
- Instructions manual (21 pages) ,
- Assembly instructions manual (16 pages)
Related Manuals for Uplift Desk V2
Summary of Contents for Uplift Desk V2

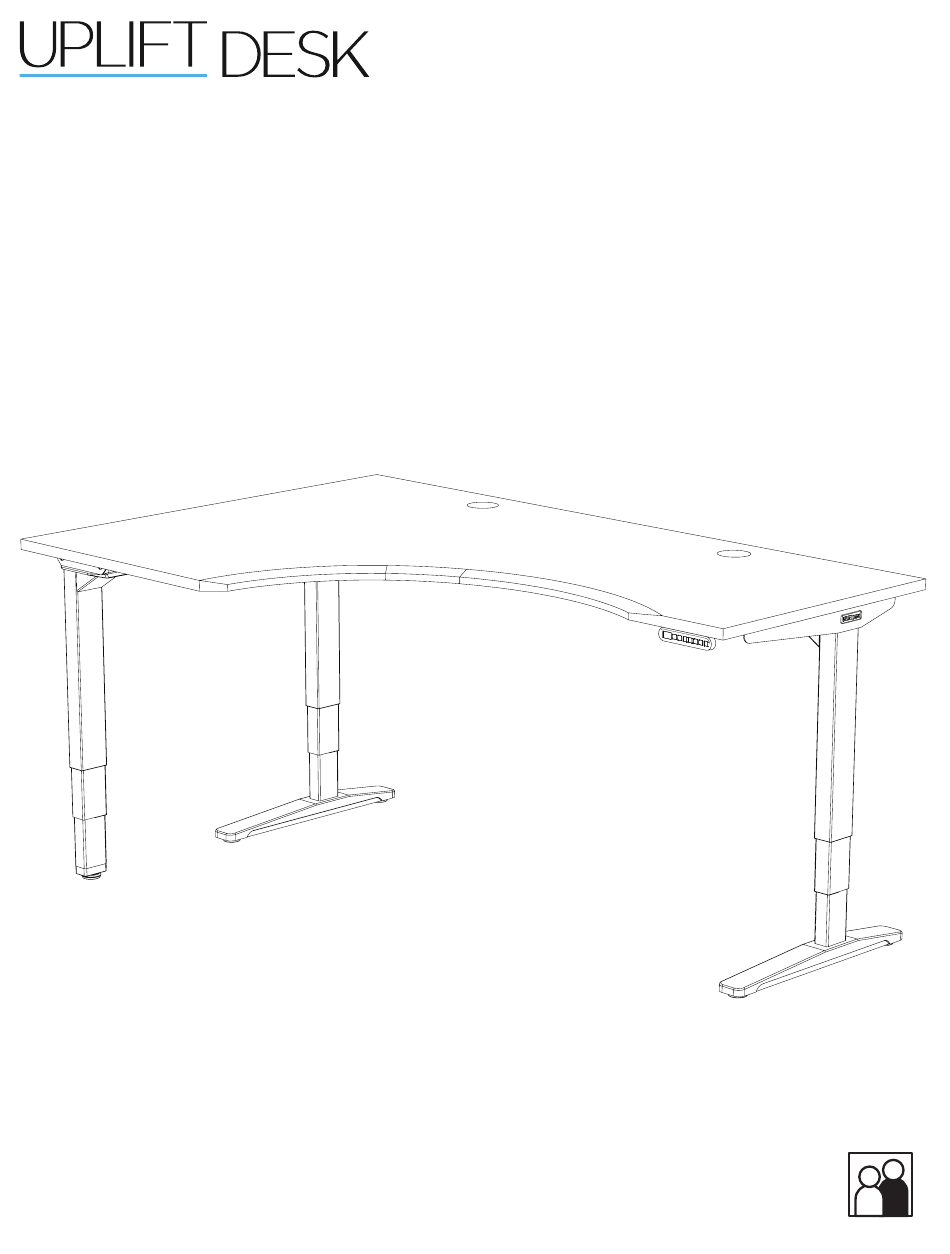

- Page 1 ® V2 L-Shaped Standing Desk Frame for Curved Corner tops two person assembly For assembly assistance, visit upliftdesk.com/3leg-srd-lcor or call 800-349-3839 355 lb or email support@upliftdesk.com Patent Pending, ©2018 UPLIFT Desk®. All Rights Reserved...
- Page 2 Thank you for choosing UPLIFT Desk. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
-
Page 3: Safety And Warnings
Under no circumstances does the manufacturer accept warranty or liability claims for damages caused from improper use or handling of this desk. Provide this manual to any new user. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com... -
Page 4: Package Contents
(qty 8) Cable Adhesive #10-24x5/8’’ #10-24x5/8’’ Allen Allen wrench Machine screw Wood screw mount wrench handle (qty 6) (qty 4) (qty 15) (qty 5) You’ll also need: Phillips head screwdriver © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com... - Page 5 Rotate each screw by hand for only a few turns to avoid cross-threading. Once both screws are started, tighten all the way us- ing the 4mm Allen wrench (H6). Repeat this step for the second Leg. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Right return (a) and one with a Left return (b). These instructions will illustrate the assembly with a Left return Desktop. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 7 This will help protect your desktop and keep the rubber grommets on the frame assem- bly from dislodging. If the rubber grommets do be- come dislodged, they can be easily re-inserted. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 8 #10x5/8’’ Wood screws (H14). Note: If you are using your own desktop and there are not any pre-drilled holes, refer to the “Drilling Notes” in Step 7 for drilling instruction. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 9 Plug each Leg into a Leg cable (C13), and then plug the Leg cable into the white ports on the Control box marked “M1”, “M2”, and “M3”. Now, plug the Keypad (C9) into the Control box port labeled “HS”. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
-
Page 10: Accessory Installation
Anchor plates for installation. If so, attach them to the frame using four M8x10 machine screws (H7), and tighten using the 5mm Allen wrench (H8) at the loca- tions mentioned in the accessory’s instructions. patent pending © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com... - Page 11 Leg. Lift and rotate 90 more degrees until your Desk is right-sideup. Adjust the leveling studs or Casters as needed to make the desk level. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Your desk is now ready for use! If you are using a Memory keypad, see additional key- pad instructions for further information on how to use your keypad. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 13 4. Hold the DOWN button until the desktop lowers slightly, then raises slightly, and the display changes back to the numeric height setting, then release. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
-
Page 14: Display Units
Note: If memory settings were previously set outside of the new minimum and maximum height settings, they will default to the new minimum and maximum settings. To set new minimum and minimum and maximum settings. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com... -
Page 15: Troubleshooting
If the error message persists after performing the Reset procedure, or if there is a height difference between the legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone numbers listed at the bot- tom of each page of these instructions. - Page 16 Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide ©...
