GETTING STARTED

A. Parts and Hardware
Parts and Hardware List
Part
Inception Appliance
Instruction Manual
Remote Control
AAA Alkaline Battery
Logs
Black Embers
Side Panels
Refractory Pieces
Fuel Bed Filter
B. Appliance Dimensions
1-7/8 in.
(48 mm)
2-1/2 in.
(64 mm)
5 in.
(127 mm)
D2
D1
MODEL
SF-INC36

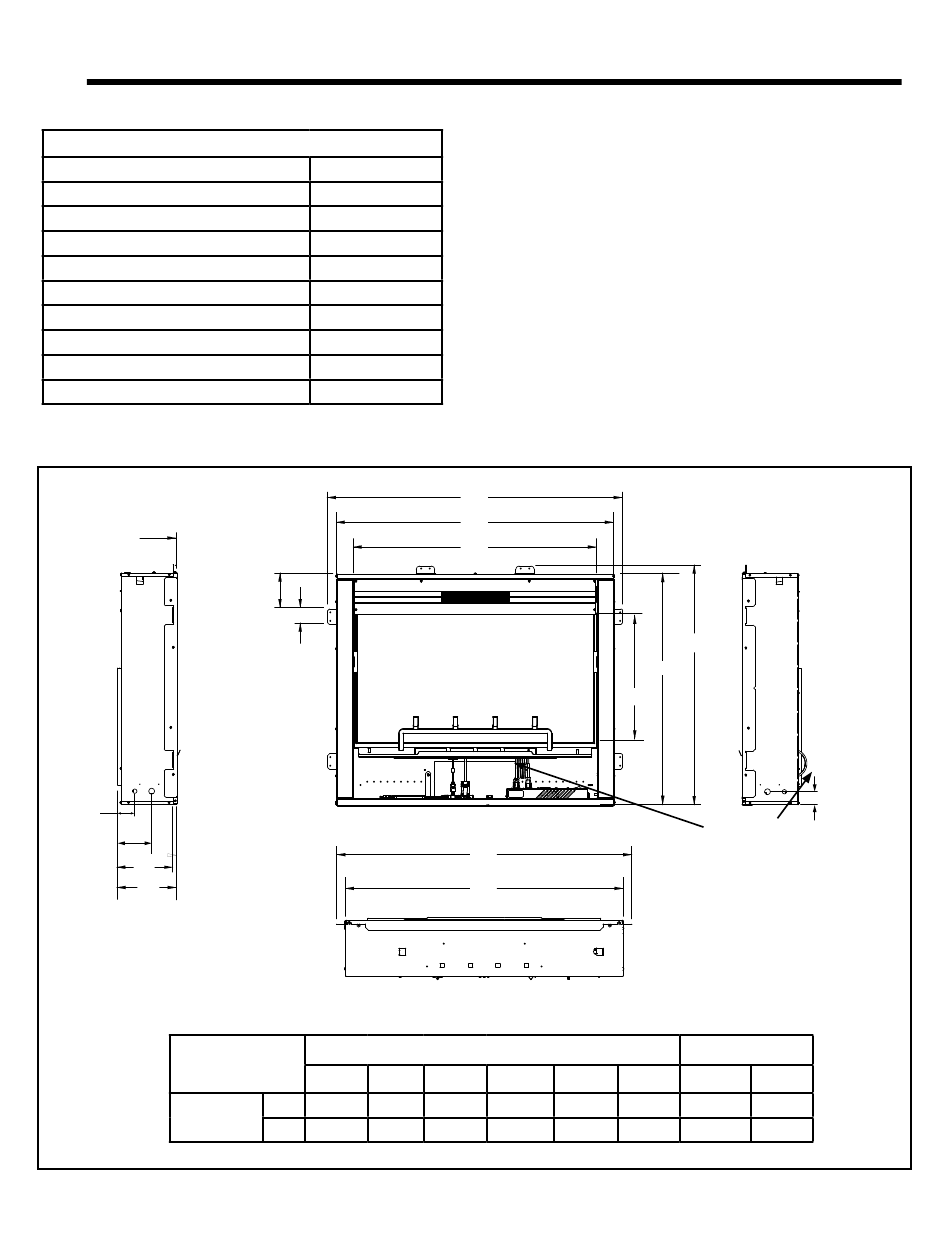

Figure 3.1 Appliance Dimensions
Quantity
1
1
1
2
4
1
2
2
1
5-1/8 in.
(130 mm)
2-1/4 in.
(57 mm)
D1
D2
in.
8-7/8
8-3/4
mm
225
222
SimpliFire • SF-INC36 Owner's - Installation Manual • 4200-900 Rev D • 8/23
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Gloves
Phillips screwdriver
Safety glasses
Type NM-B Wire Strain Relief
Twelve (12) Construction Screws
Level
Electric drill and bits (1/4 in.)
W1
W2
W3
W1
W2
SHELL SIZE
H1
H2
W1
35-3/4
34-3/8
43-3/4
908
874
1111
H1
H2
H3
ELECTRICAL
ACCESS
VIEWING AREA
W2
W3
H3
41-1/4
34-1/2
19
1048
876
483
1-15/16 in.
(49 mm)
7
