NOTICE! DO NOT discard any hardware while
servicing.
It must be reused.
This manual will assist a qualified service technician in the
replacement of parts. Contact your dealer to arrange a
service call by a qualified service technician.
Replacement parts include:
Description
Front
Glass
Log/Grate Assembly
Flame Screen
Remote
LED Lighting
Heater Assembly
Rotisserie Motor
and Rod
Remote Receiver
Hardware
WARNING: If the information in these
instructions is not followed exactly
it may result in personal injury and/or
property damage.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.

Tools and Supplies Needed

Before beginning the installation be sure that the following
tools and building supplies are available.
Pliers
Phillips screwdriver
Safety glasses
Flat blade screwdriver

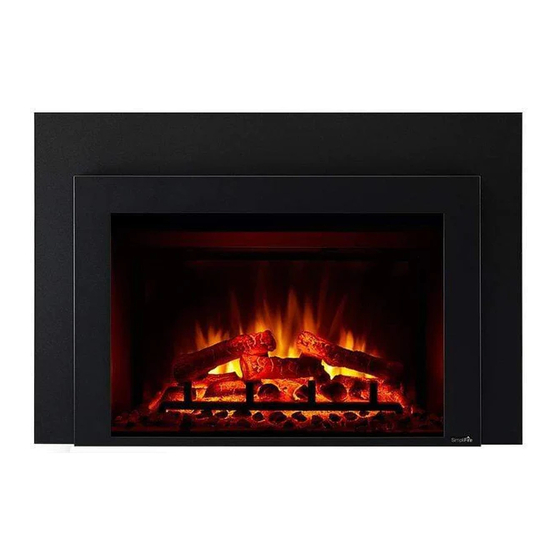

SERVICE MANUAL
Model: SF-INS30-BK
- Instructions -
Part Number(s)
FRONT-INS30
GLA-INS30
LOGS-IN30
FLAME-INS30
REMOTE-INS30
LED-INS30
HEATER-INS30
ROTISS-INS30
RECEIVER -ELECT
HRDW-BI
SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/19

Replacement Instructions

WARNING! Risk of Shock!
Always disconnect power before
disassembly or servicing.

Front Replacement

(FRONT-INS30)
1. If necessary, place a drop cloth or other material on
the hearth or flooring to prevent scratching.
2. Grasp front with two hands. Pull straight back to
disengage front from appliance.
3. Install replacement front by aligning the tabs on its
back side with the glass C-channel located on the top
face of the appliance. Press evenly with two hands to
fully engage the front to the appliance.

Glass Front Replacement

1. If necessary, place a drop cloth or other material
on the hearth or flooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Locate C-channel that retains top edge of glass
panel. While supporting the glass, remove the screw
located in the C-channel at the top two corners of the
glass panel. See Figure 1.
4. Pivot glass away from appliance and lift out of bottom
retainer channel.
5. Install replacement glass into bottom retainer chan-
nel. Take care to properly align the glass with the
rubber seal inside the top and bottom retainers.
6. Install C-channel on top edge of replacement glass.
7. Align C-channel with screw holes in appliance. See
Figure 1.
8. While supporting glass, install both screws through
top C-channel retainer into appliance. Do not over
tighten screws.
9. Re-install front.
(GLA- INS30 )
