F. Clearance to Combustibles
The SF-INC36 is a zero clearance design.
Minimum Clearance to Combustibles
120VAC
Sides.......................0 in..................0 in
Floor........................0 in..................0 in
Top..........................0 in..................0 in
Back........................0 in..................0 in
Front.......................36 in...............36 in
Mantels..........................See Figure 3.5
Finishing Materials........See Section 4.D
Wall Mounted Televisions
There are no required clearances for wall mounting a TV
above the SF-INC36 appliance. A mantel is not required
but may be used to decrease operating temperatures of
a wall mounted TV.
Since every home has unique air flow characteristics and
maximum allowable operating temperatures can vary
A
C
Models
in.
SF-INC36
mm
*Note: Adjust framing dimensions if sheathing the interior of the cavity (such as sheet rock)

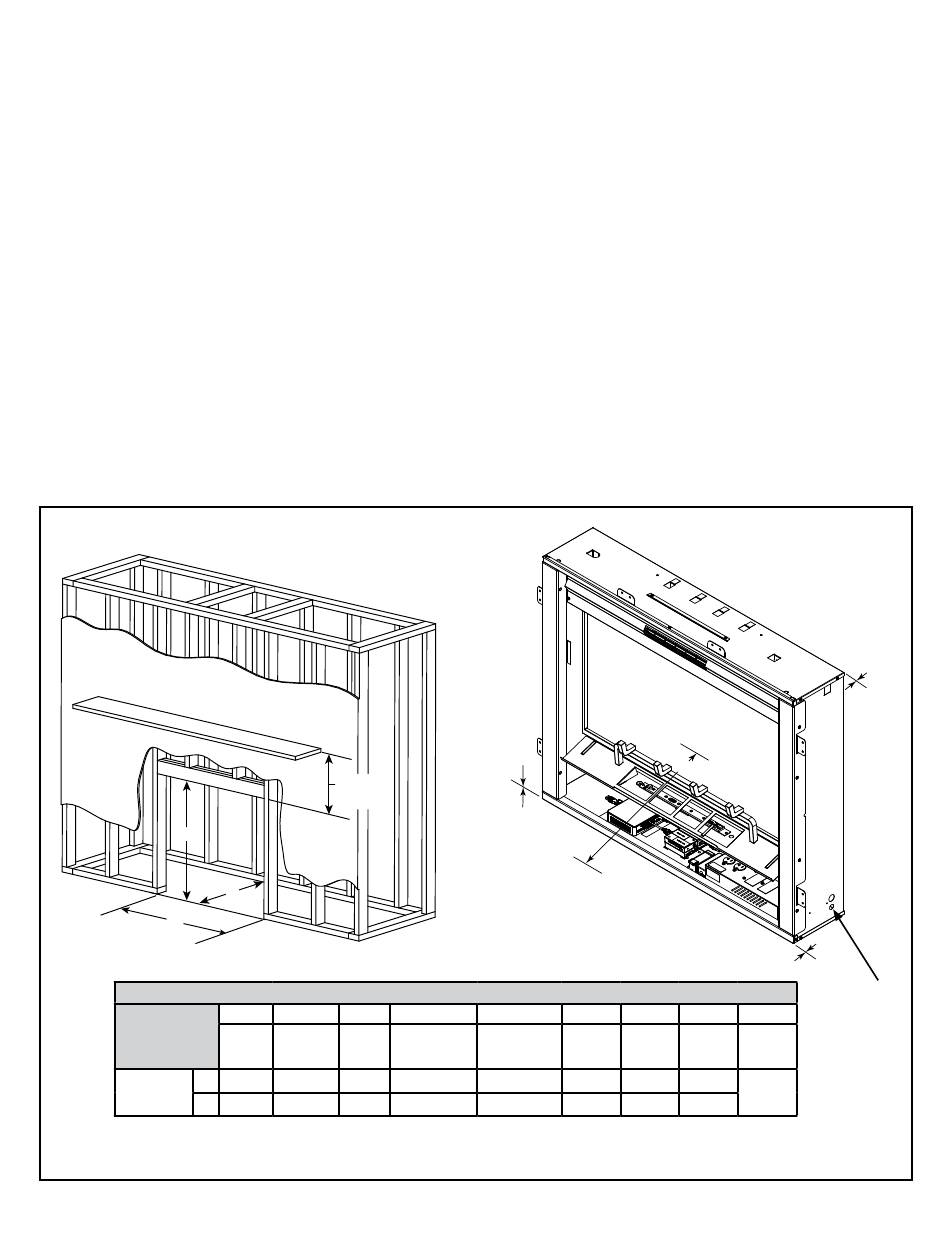

Figure 3.5 Framing Dimension
12
240VAC
I
(See Figure
4.11)
B
*
MINIMUM FRAMING DIMENSIONS
A B C
Rough Rough Rough
Combustible
Opening Opening Opening
(Height) (Depth) (Width)
34-7/8 8-3/4 42
886 222 1067
SimpliFire • SF-INC36 Owner's - Installation Manual • 4200-900 Rev D • 8/23
from manufacturer to manufacturer and from model to
model, actual TV temperatures should be validated at the
time of each installation. TVs should not be used in situa-
tions where the actual TV temperature exceeds the man-
ufacturers' maximum allowable operating temperatures
identified in the TV's technical specifications. Contact the
TV's manufacturer directly if you cannot locate this infor-
mation or have questions regarding the information.
G. Electrical Supply Circuit Requirements
Plan the location of the appliance so that it will have ad-
equate electric power. If using 120VAC for power a mini-
mum 15 AMP, 60Hz circuit is required. If using 240VAC
for power a minimum 20 AMP, 60 Hz circuit is required.
Additional appliances on the same circuit as this appli-
ance may exceed the current rating of that circuit. A dedi-
cated circuit is not required, but is recommended to pre-
vent circuit breaker trips or fuse failure.
To disconnect appliance, turn controls to off, turn off pow-
er to appliance circuit at main disconnect panel.
Reference Section 4.C for more complete detail on com-
pleting electrical installation.
D
D E F
Minimum
Behind
Hearth
Floor Appliance
Required
0 0 0
0 0 0
H
E
G H I
Sides of Front of Mantel
Appliance Appliance Clearance
0 36
See Figure
4.11
0 914
F
ELECTRICAL
WIRING
LOCATION
Note: Wire
Strain Relief
supplied by
electrician
