MAINTENANCE

A. Maintenance
WARNING! Risk of Shock! Always turn off circuit break-
er and ensure the heating element on the heater is cool
before cleaning or servicing. Do not immerse appliance
in water.
• Always disconnect electrical service before servicing
appliance. Turn off main switch and breaker at ser-
vice panel.
• Light accumulated dust may be removed from the ap-
pliance with a soft cloth or vacuum cleaner.
• Wipe the exterior surfaces of the appliance occasion-
ally with a slightly damp cloth using a solution of mild
detergent and water. Dry thoroughly before operating
the appliance.
CAUTION! Do not allow water to run into the interior of
the appliance as this could create a fire or electric shock.
• The fan motor is factory lubricated for life and will not
require further lubrication.
WARNING! Risk of Fire! To reduce risk of fire, do not
store or use gasoline or any other flammable vapors or
liquids in the vicinity of the appliance.
WARNING! Risk of Electrical Shock! Any other servic-
ing needed must be performed by an authorized service
representative. Do not attempt to service the unit your-
self.
B. Electrical Wiring Diagram
See Figure 6.2.
DISPLAY

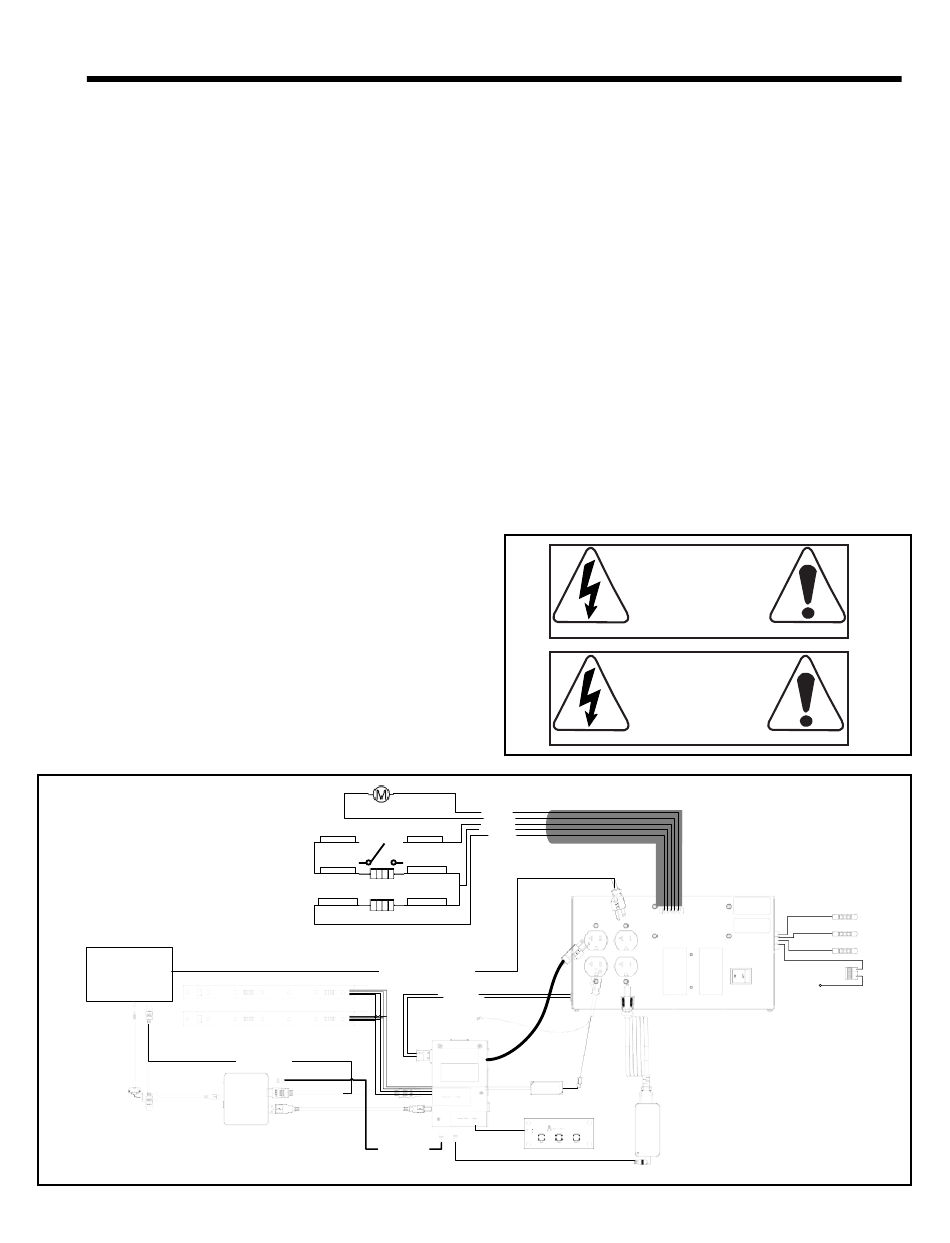

Figure 6.2 Electrical Wiring Diagram
26
Fan
Motor
o
125
Thermostat Thermostat
THERMOSTAT
H1 Back Left H1 Back Right
HEATER 1
H2 Front Left H2 Front Right
HEATER 2
BLACK DISPLAY POWER CORD
TOP LIGHTS
BOTTOM LIGHTS
BLACK HDMI CABLE
USB CABLE
COMPUTER
BLACK DC CABLE
SimpliFire • SF-INC36 Owner's - Installation Manual • 4200-900 Rev D • 8/23
C. Cleaning
Frequency of Cleaning
Cleaning should be done annually or more depending on
the usage and the environment location of the appliance.
Cleaning Display
Cleaning should be done annually or more depending
on the usage and the environment location of the appli-
ance. Dust particles can be removed by buffing lightly
with a clean dry cloth. Fingerprints and other marks can
be cleaned with a cloth dampened with a quality house-
hold glass cleaner. The glass should be completely dried
with a lint free cloth or paper towel. Do not use abrasive
cleaners on glass surface. Do not spray liquids directly
onto any surface.
Metal Surface
Dust particles can be removed by buffing lightly with a
clean dry cloth. A damp cloth can be used to clean paint-
ed surfaces. Do not use abrasive cleaners. Do not spray
liquids directly on to any surface.
RISK OF ELECTRICAL SHOCK
SA1965A
RISQUE DE CHOC NE PAS OUVRIR
SA1965A
Figure 6.1 Electrical Shock Warning Labels
HEATER ASSEMBLY HARNESS
BLACK 18 AWG
WHITE 18 AWG
BLACK 12 AWG
YELLOW 12 AWG
RED 12 AWG
BLUE 18 AWG
VIOLET 18 AWG
GROUND TERMINAL
ACM2.0 + BECM
12V POWER SUPPLY
ON-DEVICE CONTROLS
19V POWER SUPPLY
CAUTION
DO NOT OPEN
NO USER-SERVICEABLE
PARTS INSIDE
AVERTISSEMENT
AUCUN UTILISATEUR-
UTILISABLEPIÈCES
À L'INTÉRIEUR
Black 12 AWG
White 12 AWG
R ed 12 AWG
Green 12 AWG
4200-213
4200-214
LIVE1
NEUTRAL
LIVE2
EARTH
GND
Green 12 AWG
