Termination Cover Installation:
After completing the wire termination. Locate and form
the included termination cover included in the appliance
installation manual bag. See Figure 4.7.
1. Bend Front Termination Cover Flange Downward 90°
2. Bend Termination Cover Side Flange Upward 90°

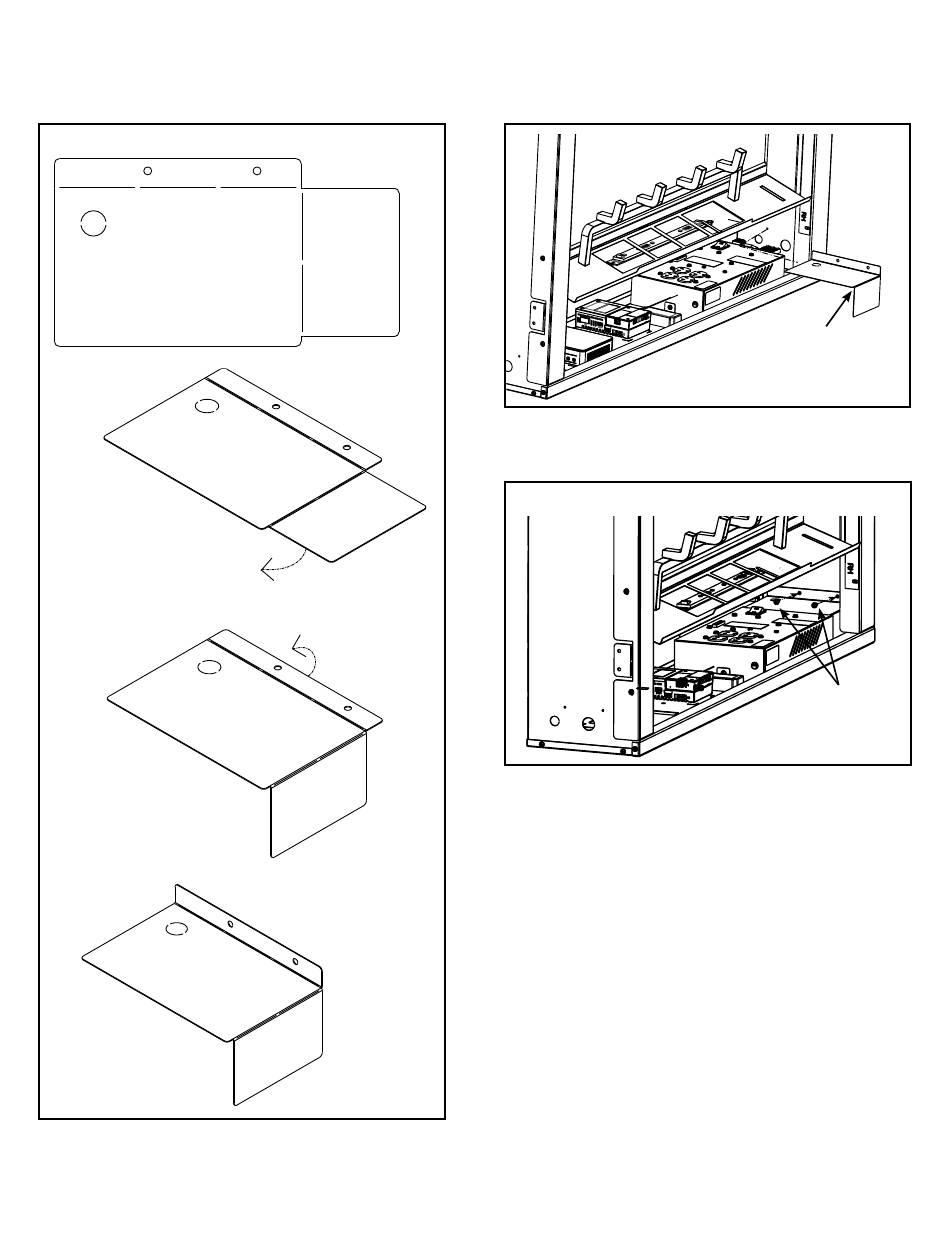

Figure 4.7 Termination Cover
16
Termination Cover
(flat)
Termination
Cover (formed)
SimpliFire • SF-INC36 Owner's - Installation Manual • 4200-900 Rev D • 8/23
After completing the appliance wiring and bending the
termination cover, position the termination cover over
the wire termination area between the right side wall of
the appliance and the junction box. See Figure 4.8
Figure 4.8 Termination Cover Installation
Secure the termination cover in place with the two
screws provided. See Figure 4.9
Figure 4.9 SecuringTermination Cover
Termination Cover
Screws
