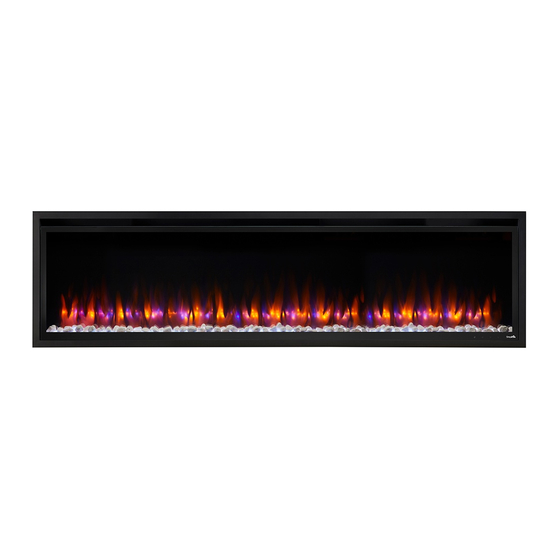

SimpliFire SF-ALLP50-BK Service Manual

Glass Front, Media, Trim, LED Light Boards (Fuelbed and Flame), Touch Buttons, Receiver
Board, Control Board, Heater, Flame Screen,Rotisseire, Motor & Power Cord
Model: SF-ALLP50-BK, SF-ALLP60-BK, SF-ALLP72-BK
Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
NOTICE! DO NOT discard any hardware while
servicing. It may be reused.
WARNING! Risk of Personal Injury or Property Dam-
age! Failure to follow instructions below may result in
damage to the equipment and or may expose the user to
the risk of fire, serious injury, illness or death.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.
WARNING! Risk of Shock! Always unplug the cord or
turn off the circuit breaker before moving or servicing.

Tools and Supplies Needed

Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Needle-nose pliers
Hammer
Gloves
Level
Magnetic Phillips screwdriver
Safety glasses
Drill
Flathead screwdriver
Phillips Tip-Bit socket and ratchet (for Blower/Heater)
5/16 drill bit for 3/16 diameter toggle bolts
(applicable if installing on drywall-sheathed walls)
Masonry drill bit 5/16 in. (applicable if installing on
masonry walls)
SimpliFire • SF-ALLP50-BK, SF-ALLP60-BK, SF-ALLP72-BK Service Manual • 2044-960 Rev. C • 10/19
SERVICE MANUAL
- Instructions -
CAUTION! Two adults recommended for the removal
or installation of glass front. Use caution when han-
dling glass. Failure to do so could result in personal injury
or property damage.
Important service

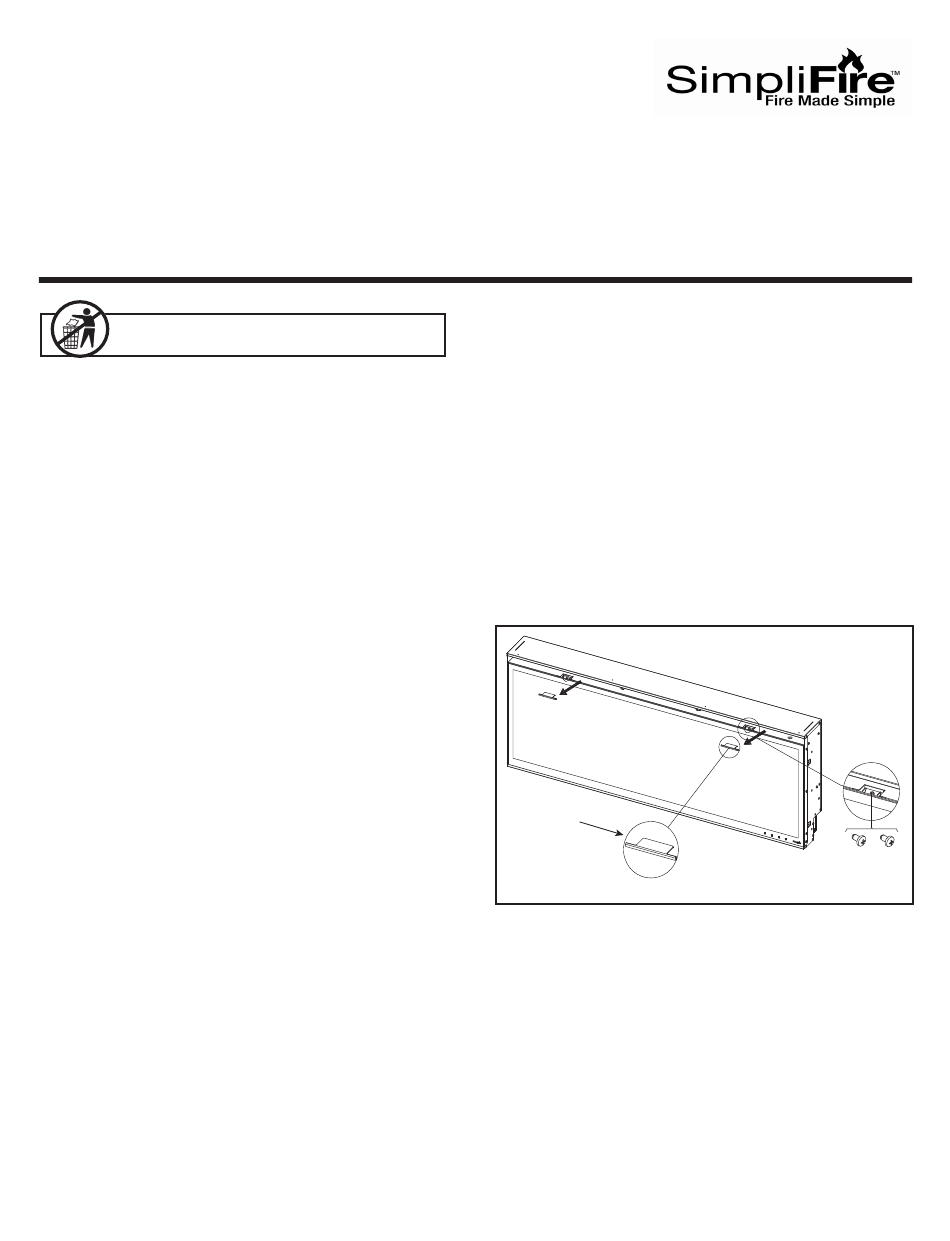

Glass Front Replacement
Remove Glass Front
1. Remove the two (2) glass bracket cover (if installed).
2. Remove the two (2) ST4X8 screws located on the
3. Tilt glass forward and pull up to remove from appliance.
Figure 1 Remove Glass Front
See Figure 1.
glass panel. See Figure 1.
Note: Do not discard screws, screws will be reused.
GLASS BRACKET
COVER
ST4X8 SCREWS
1
