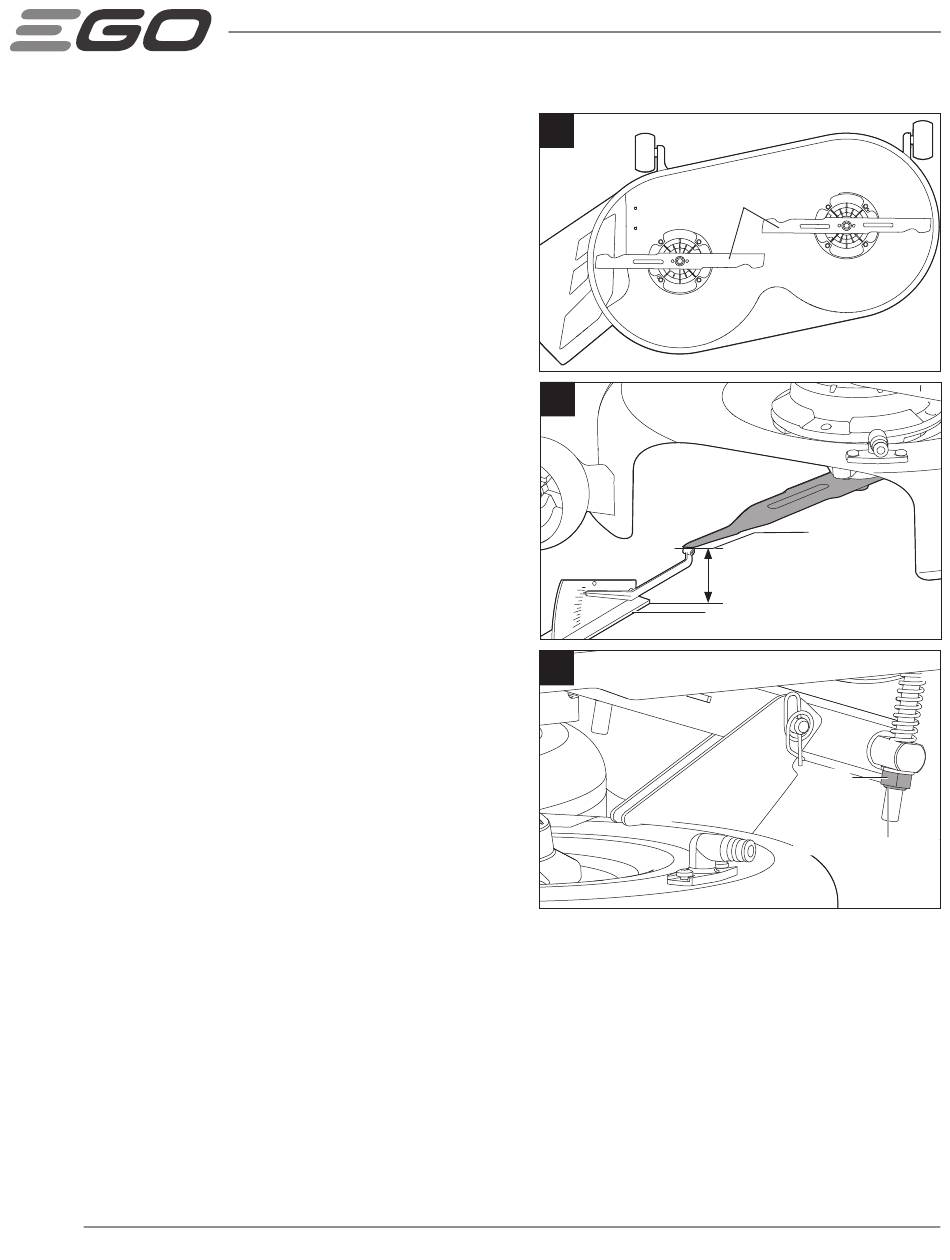

To make side-to-side adjustment (Fig. 25)
1. Turn off the tractor, engage the parking brake, and remove the
batteries.
2. Position both blades so that the ends point toward the sides of
the tractor (Fig. 25a).
3. On the outside edge of each blade, measure the distance from
the bottom edge of the side of the blade to the ground
(Fig. 25b). If the distance between the two sides is greater
than 13/64 in (5 mm), side-to-side adjustment is necessary.
4. On the side you wish to adjust, use a 13/16 in (21 mm) open-
end wrench or adjustable wrench (not supplied) to adjust the
one jam nut on the back of the tractor (Fig. 25c).
5. Measure again. Continue to adjust and measure until the
difference between the distances on each side is within
13/64 in (5 mm).
6. Proceed to front-to-back adjustment or retighten the nuts.
NOTE: in case of the jam nut on the back is removed from the
tool accidently, remount it with the shoulder of the jam nut facing
outward. No requirement for the two nuts on the suspension
linkage.
54
56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
25a
Blades side to side
25b
Distance
Leveling Gauge
25c
Bottom edge of
the blade
Jam Nut
The shoulder facing outward
