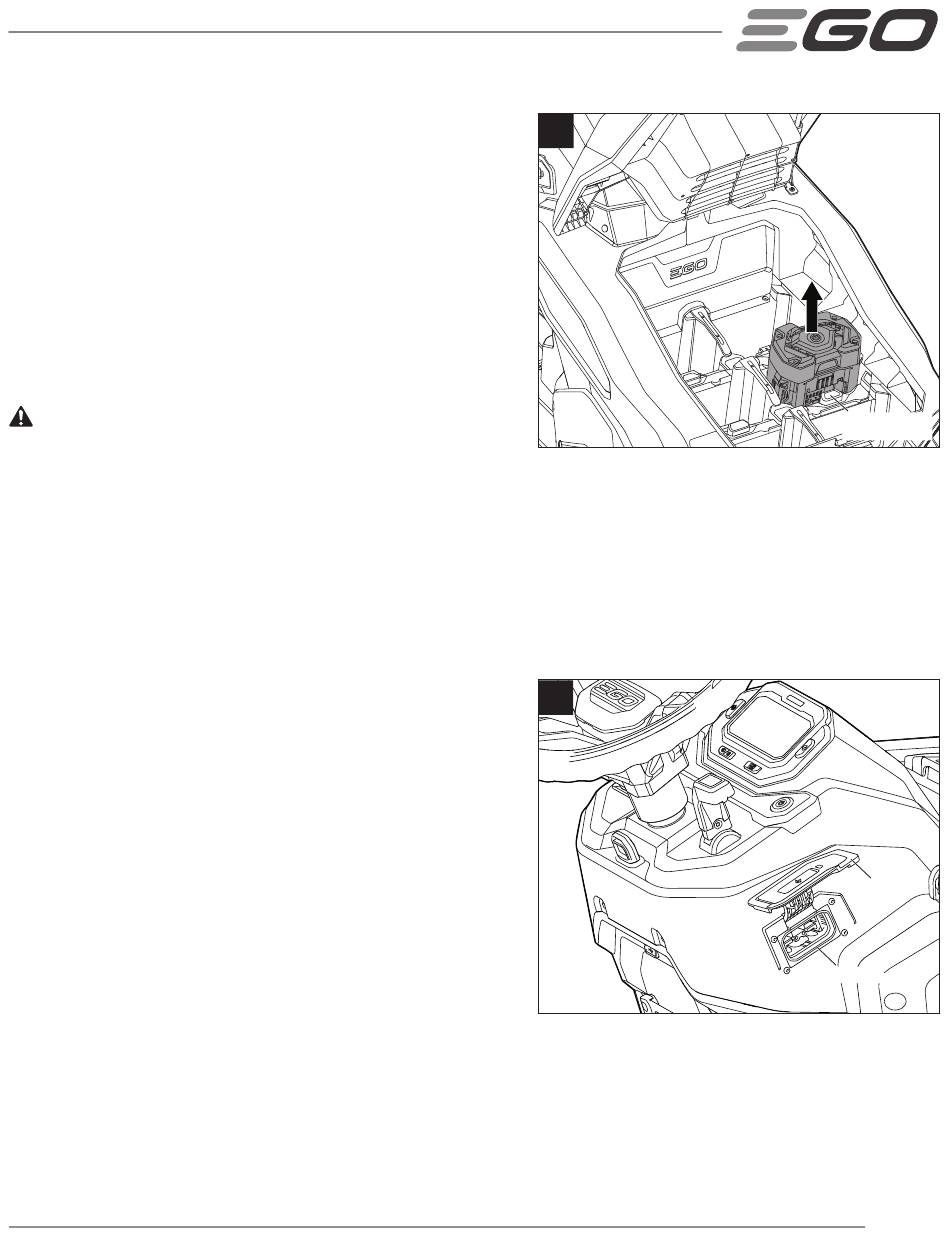

6. To detach the battery pack, depress the battery-release
button to release the battery pack, and then lift it out of the
compartment (Fig. 14b).
7. Close the power-unit cover until you hear a clear "click",
indicating that the power-unit cover release button is engaged.
CHARGING
When battery charge becomes low, the tractor will go into Limp-
Home mode and will permit the tractor to travel a maximum
distance of 0.6 mile (0.96 km) back to the battery-charging area.
The blades are automatically switched into low rotation speed to
save the battery charge.
WARNING: Do not attempt to drive across roads or railways
when battery charge level is low.
NOTICE: DO NOT attempt to charge the batteries or the tractor with a charger not designed for use with this product.
There are two ways to charge the tractor:
Charging the batteries separately
Remove the batteries from the tractor and charge the batteries separately with EGO chargers. Please follow the
instructions in the Operator's Manual for the EGO standard chargers.
NOTE: There are individual manuals for EGO batteries and chargers. Save the instructions - The manuals contain
important safety and operating instructions for the battery and charger.
Charging the batteries via charging port (Fig. 15)
EGO battery charger CHV1600/CHV1600-FC or
CH5500/CH5500-FC/CH7000/CH7000-FC+ACA1000/ACA1000-FC
is available for charging the EGO electric lawn tractor directly while
the batteries are installed in the tractor.
The battery charging port is located on the lower right side of the
dashboard (Fig. 15a).
1. Make sure that the tractor comes to a complete stop, turn off
the tractor, engage the parking brake, and remove the safety
key.
2. Lift the dust cap from the battery charging port on the tractor
and connect the charger plug into the port.
NOTE: Plug will only fit one way into the port. Make sure it is
properly aligned before inserting.
14b
15a
56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
Battery-Release
Button
Dust Cap
Charging Port
37
