DESCRIPTION

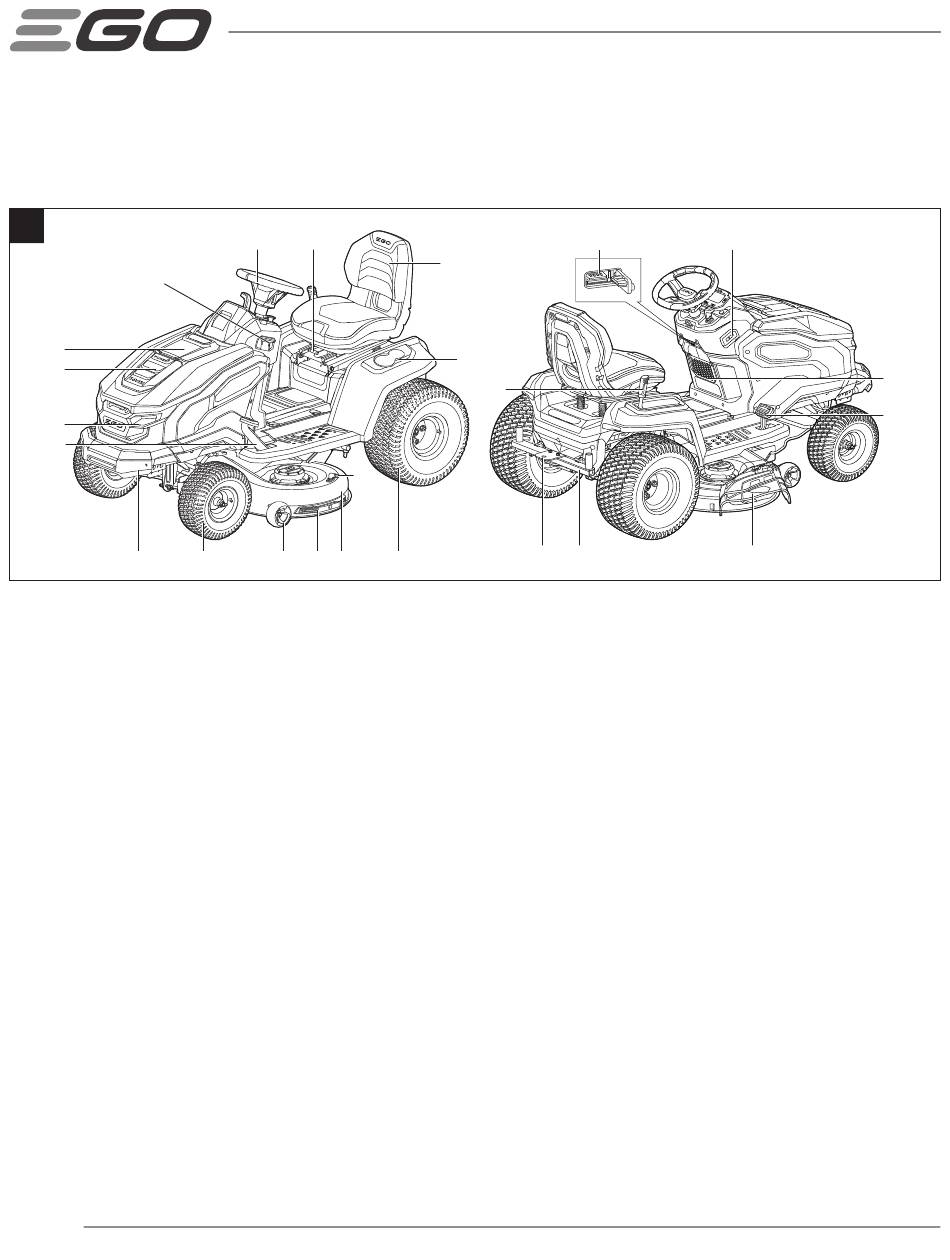

KNOW THE ELECTRIC LAWN TRACTOR (Fig. 1)
1
14
13
12
11
10
9
1. Seat
2. Cup Holders
3. Rear Wheel (Drive Wheel) (x2)
4. Wash Port
5. Deck
6. Deck Protector
7. Anti-Scalp Wheel (x2)
8. Front Wheel (x2)
9. Front Bumper
10. Parking-Brake Pedal
11. LED Headlight (x2)
12. Power Unit (Fig. 1b)
12
56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
15 16
4
8 7 6 5
1
2
23
22 24
3
13. Storage Compartment
14. Parking-Brake Lock Lever
15. Steering Wheel (Fig. 1a)
16. Seat Position Adjustment Lever
17. Charging Port
18. USB Port
19. Storage Basket
20. Accelerator Pedal
21. Side Discharge Chute
22. Hitch
23. Deck-Height Adjustment Lever
24. Attachment Rack
(for installing the cargo box, sun shade or bagger kit)
