EGO LM2120E-SP Repair Manual Line

Hide thumbs Also See for LM2120E-SP:
Table of Contents

Advertisement

Quick Links

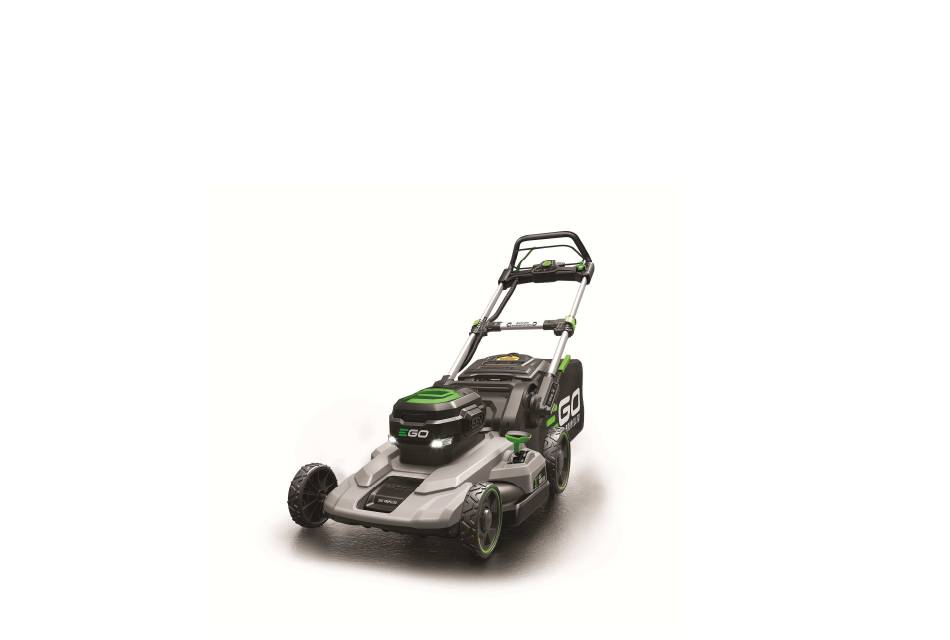

PART 1: BLADE REMOVAL & INSTALLATION-LM2120E-SP Lawn Mower
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM2120E-SP and is the answer not in the manual?

Questions and answers

Tammy N Carter
May 15, 2025

How to change self propelled part on Ego battery powered mower

0
1 comments:
Mr. Anderson
May 21, 2025

To change the self-propelled part on the EGO LM2120E-SP mower:

1. Align the bellows into the housing groove with at least five threads located inside.
2. Align the self-propelled speed-adjusting PCB wires into the grooves.
3. Align the wires of the main switch and self-propelled switch into the groove.
4. Place the main switch into the holder following the correct sequence as shown in the figures (not provided here).

Always ensure correct positioning and secure all parts properly.

This answer is automatically generated

0
David Wilcox
March 5, 2025

blade not turning

0
1 comments:
Mr. Anderson
May 14, 2025

The blade on the EGO LM2120E-SP may not be turning due to the following reasons:

- The side rails are not fully extended and the clamps are not locked. Fully extend the handle and lock both clamps.
- The handle is not set to one of the three operating positions. Adjust the handle properly.
- The mower deck is clogged with grass or debris. Clean the deck and ensure the blade can move freely.
- The battery pack is depleted. Charge the battery.
- The mower is in overload condition. Raise the cutting height or slow down.
- The blade is dull, bent, or incorrectly assembled. Sharpen, replace, or correctly reassemble the blade.

This answer is automatically generated

0

Related Manuals for EGO LM2120E-SP

Summary of Contents for EGO LM2120E-SP

  • Page 1 REPAIR GUIDELINE PART 1: BLADE REMOVAL & INSTALLATION-LM2120E-SP Lawn Mower...
  • Page 2 Table of Contents LM2120E-SP Lawn Mower Contents Page Blade Removal Blade Installation...
  • Page 3 1. Blade Removal LM2120E-SP Lawn Mower 1. Release switches and remove the battery pack from the mower. 2. Wear protective gloves, turn the mower on its side (Fig. 1). 3. Place a metal rod (e.g., a screwdriver) with a diameter between 9 - 11mm into the fixing hole to act as a stabilizer and place another metal rod (e.g., a long bit) with a diameter between 5 -...
  • Page 4 1. Blade Removal LM2120E-SP Lawn Mower Use a 14mm wrench to turn the blade bolt counterclockwise to loosen it. Stabilizer Another Stabilizer Loosen...
  • Page 5 1. Blade Removal LM2120E-SP Lawn Mower 5. Remove the bolt, outer flange and blade. Replace any broken or worn parts. 6. Remove the inner flange and fan from the motor shaft, then replace any broken or worn parts. Description Part Number...
  • Page 6 2. Blade Installation LM2120E-SP Lawn Mower 1. Fix the inner flange to the fan. 2. Mount the fan and the inner flange onto the motor shaft with the fan blade towards the deck. Fan blades towards deck Inner flange Motor shaft...
  • Page 7 2. Blade Installation LM2120E-SP Lawn Mower 3. Mount the blade onto the inner flange with the Flat position surface stating “THIS SIDE FACING GRASS” facing outwards (Fig. 1) . 4. Aligning the flat position of the outer flange with the corresponding flat position on the motor Outer Flange shaft, mount the outer flange in place(Fig.
  • Page 8 2. Blade Installation LM2120E-SP Lawn Mower 5. Fix the bolt into the shaft and pre-tighten it in a clockwise direction by hand. Outer flange Pre-tighten by hand Bolt...
  • Page 9 2. Blade Installation LM2120E-SP Lawn Mower 6. Turn the blade by hand to align the holes in the blade with the holes in the inner flange(Fig. 1). 7. Place a metal rod (e.g., a long bit) with a diameter between 5 - 6.35mm into the aligning hole to act as a stabilizer.
  • Page 10 REPAIR GUIDELINE PART 3: REAR COVER_LM2120E-SP Lawn Mower...
  • Page 11 Rear Cover Replacement LM2120E-SP Lawn Mower Rear Cover Description Part Number Rear Cover 3126689003...
  • Page 12 Rear Cover Replacement LM2120E-SP Lawn Mower 1. Detach the service cover from the mower by loosening the 6 screws.
  • Page 13 Rear Cover Replacement LM2120E-SP Lawn Mower 2. Pull out the shaft from right side by hand (Fig. 1). 3. Take down the rear cover and shaft (Fig. 2). Shaft Description Part Number SPEC Shaft 5670345001 Φ7x 345...
  • Page 14 Rear Cover Replacement LM2120E-SP Lawn Mower 4. Remove the spring from the rear cover. Replace with a new rear cover or torsion spring. Description Part Number SPEC Torsion Spring 3660559001 15.2x25...
  • Page 15 Rear Cover Replacement LM2120E-SP Lawn Mower 6. Insert the shorter foot of the torsion spring into the groove of the rear cover. Insert...
  • Page 16 Rear Cover Replacement LM2120E-SP Lawn Mower 7. Position the rear cover and torsion spring assembly in the deck. The foot of the spring should be in the deck groove. Rested on the groove...
  • Page 17 Rear Cover Replacement LM2120E-SP Lawn Mower 8. Insert the shaft through the hole on the mower and the torsion spring, and push it into position. Align the shaft to the fixing hole and push it into position. 9. Lift up the rear cover to check if it can rotate around the shaft smoothly. If it works well, mount the service cover onto the mower by tightening the 6 screws.
  • Page 18 REPAIR GUIDELINE PART 4: TOP HANDLE & SWITCH BOX COVER_LM2120E-SP Lawn Mower...
  • Page 19 Table of Contents LM2120E-SP Lawn Mower Contents Page Opening the Switch Box Cover The Safety Button Replacement 7-10 The Main Switch Set(Lever/Trigger) Replacement 11-13 The Top Handle Replacement The Top & Bottom Switch Box Cover Replacement The Main Switch/Self-propelled Switch/Speed-adjusting PCB...
  • Page 20 Top Handle & Parts in Switch Box Cover Replacement LM2120E-SP Lawn Mower When opening the switch box covers, the following relevant parts can be replaced: Description Part Number Main Switch 4870566001 Main Switch Trigger 3127908001 Main Switch Lever 2824118001 Self-propelled Switch...
  • Page 21 1. Opening the Switch Box Cover LM2120E-SP Lawn Mower 1. With the handle locked in the operating position, remove the 4 bolts. The 4 bolts are separately fixed by one hexagon nut on the reverse. Hexagon Description Part Number SPEC...
  • Page 22 1. Opening the Switch Box Cover LM2120E-SP Lawn Mower 2. Fold the handle to the grass bag removal position(Fig. 1). 3. Remove the 8 tapping screws from the housing(Fig. 2). NOTICE: During this process, keep holding the top switch box cover with one hand to prevent dropping.
  • Page 23 1. Opening the Switch Box Cover LM2120E-SP Lawn Mower 4. Hold the top switch box cover with one hand and remove bottom switch box cover gently with the other hand. Replace any damaged parts accordingly. Top Switch Box Cover Self-propelled...
  • Page 24 2. The Safety Button Replacement LM2120E-SP Lawn Mower 1. Remove the spring, screw, plain washer, switch actuator and safety button. Switch Actuator Screw Washer Spring Safe Button Description Part Number SPEC Description Part Number SPEC Spring 3660011002 12.7×16 Switch Actuator...
  • Page 25 2. The Safety Button Replacement LM2120E-SP Lawn Mower Place the new safety button into the mounting slot. Align the actuator slot with the buttons highest rib (Fig. 1). Button Higher Rib Actuator Slot Mounting Slot...
  • Page 26 2. The Safety Button Replacement LM2120E-SP Lawn Mower Place the plain washer onto the actuator and tighten it with a screw (Fig. 1). Locate the actuator between the main switch and the housing (Fig. 2) .
  • Page 27 2. The Safety Button Replacement LM2120E-SP Lawn Mower 6. Place the spring onto the actuator and make sure it is securely located(Fig. 1). 7. Close the switch box cover as steps in following “Close the Switch Box Cover” part show.
  • Page 28 3. The Main Switch Set(Lever/Trigger) Replacement LM2120E-SP Lawn Mower 1. Loosen the 2 screws . Remove the clamp, spring and switch lever set. 2. Replace with a new switch lever or trigger if any distortion or malfunction appears. Clamp Main Switch Lever...
  • Page 29 3. The Main Switch Set(Lever/Trigger) Replacement LM2120E-SP Lawn Mower 3. Mount the switch trigger to the switch lever. NOTICE：The flat position on the lever should be fixed as the fig. 3 show. Flat Position Here...
  • Page 30 3. The Main Switch Set(Lever/Trigger) Replacement LM2120E-SP Lawn Mower 4. Put the spring into the hole. Mount the main switch set onto the spring with the hook outside the spring(Fig. 1). 5. Align the clamp slot with the locating rib on the housing(Fig. 2).
  • Page 31 4. The Top Handle Replacement LM2120E-SP Lawn Mower 1. Pull the top handle, removing the handle from the plastic bushings in the aluminum tubes. 2. Replace with a new one if it appears worn or broken. 3. Insert the two sides into the plastic bushings and press them into place.
  • Page 32 5. To Replace the Top & Bottom Switch Box Cover LM2120E-SP Lawn Mower 1. Remove all the switches as well as their cables from the top switch box cover; 2. Remove the main switch lever and self-propelled lever from the top switch box cover;...
  • Page 33 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB LM2120E-SP Lawn Mower 1. Remove the main switch, self-propelled switch and speed adjustment PCB assembly from the top switch box cover. Replace the damaged part accordingly. Main Switch Speed Adjustment PCB Self-propelled Switch...
  • Page 34 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB ① IF the main switch is broken, disconnect it from the wires and replace with a new one by resoldering. NOTICE: Note the soldering sequence as following picture show. 2- Yellow @ black Red- 1 4-Black Black- 3...
  • Page 35 6. The Main Switch/Self-propelled Switch/Speed-adjusting PCB ② If the Self-propelled switch is broken, disconnect it from the wires and replace with a new one by resoldering. NOTICE: Note the soldering sequence as following picture show. White- NO Black- NC Pink- COM...
  • Page 36 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB ③ IF the speed-adjusting PCB is broken, disconnect it from the wires and replace with a new one by resoldering. ④ If the speed-adjusting knob is also broken, replace it with a new one. NOTICE: Mind soldering sequence as Fig.
  • Page 37 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB 2. Test ① Test the main switch: • Insert a fully charged battery pack into the battery case. • Adjust the handle to the operating position and fully extend the side rails and lock with the side clamps.
  • Page 38 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB 3. Align the bellows into the housing groove with at least five threads located in (Fig. 1) . 4. Align the self-propelled speed-adjusting PCB wires into the grooves (Fig. 2). At least 5 threads of the bellows located in the housing groove...
  • Page 39 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB 5. Align the wires of the main switch and self-propelled switch into the groove and place the main switch into the holder following the steps NO. in figures below.
  • Page 40 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB 6. Align the self-propelled lever into the top switch box cover. ① First place the spring onto the self-propelled lever. Description Part Number SPEC Spring 3660562001 11×38 Self-propelled Switch Lever 3127928001...
  • Page 41 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB ② Align the self-propelled lever into the grooves on the top switch box cover. Spring Position...
  • Page 42 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB 7. Align the self-propelled speed-adjusting PCB and knob set into the housing hole correctly. ① Assemble the self-propelled speed-adjusting knob to the PCB initially. ② Mount the PCB and knob set into the place correctly.
  • Page 43 6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB NOTICE: If the self-propelled speed-adjusting PCB has been inserted into the groove incorrectly, the knob can’t be put into place meaning the cover can’t be closed.
  • Page 44 7. Closing the Switch Box Cover LM2120E-SP Lawn Mower 1. Fully extend the side rails to mount the top switch box cover to the handle, making sure the ribs on the handle locate on the ribs on the switch box cover.
  • Page 45 7. Closing the Switch Box Cover LM2120E-SP Lawn Mower 2. Close the switch box set and fix them by tightening the 8 screws on the bottom switch box cover firstly and the 4 bolts on the top switch box cover to lock the cover set, making sure the...
  • Page 46 7. Closing the Switch Box Cover LM2120E-SP Lawn Mower THE END...
  • Page 47 REPAIR GUIDELINE PART 5: HANDLE LOCKING CLAMP_LM2120E-SP Lawn Mower...
  • Page 48 Handle Locking Clamp Replacement LM2120E-SP Lawn Mower Description Part Number Handle Locking Clamp Set 2823714002...
  • Page 49 Handle Locking Clamp Replacement LM2120E-SP Lawn Mower 1. Use a pin and a hammer to tap out the shaft carefully and remove the clamp, shaft and spring from the tube. Spring Clamp Shaft...
  • Page 50 Handle Locking Clamp Replacement LM2120E-SP Lawn Mower 2. Move the handle downwards to take out the rubber pad and rubber base. 3. Replace the broken or worn parts. Rubber base Rubber pad...
  • Page 51 Handle Locking Clamp Replacement LM2120E-SP Lawn Mower 4. Put the rubber pad and rubber base into the recess with the rubber pad on the inside and the rubber base on the outside.
  • Page 52 Handle Locking Clamp Replacement LM2120E-SP Lawn Mower 5. Insert the short foot of the spring into the hole in the clamp, then mount the clamp into the joint.
  • Page 53 Handle Locking Clamp Replacement LM2120E-SP Lawn Mower 6. Insert the shaft and knock it with a hammer until the lower side is flush with the housing surface. 7. Test the clamp. The side rails should be locked stably by the two clamps. They should not retract...
  • Page 54 Handle Locking Clamp Replacement LM2120E-SP Lawn Mower Description Part Number Picture Handle Locking Clamp Set 2823714002 THE END...
  • Page 55 REPAIR GUIDELINE PART 6: LEFT/RIGHT BEAM HOUSING_LM2120E-SP Lawn Mower...
  • Page 56 Table of Contents LM2120E-SP Lawn Mower Contents Page Opening the Right Beam Housing Closing the Right Beam Housing 7-10 Opening the Left Beam Housing 11-12 Closing the Left Beam Housing 13-14 Replacing the Left/Right Inner Tube ASSY/Beam Tube 15-19...
  • Page 57 Left/Right Beam Housing Replacement LM2120E-SP Lawn Mower When opening the left/right beam housing, the following parts can be replaced: Left inner tube ASSY Left beam housing set Description Part Number Micro switch 4870500001 Beam tube Left beam housing set 2824427001...
  • Page 58 1. Opening the Right Beam Housing LM2120E-SP Lawn Mower 1. Remove the 8 tapping screws to open the right beam housing. NOTICE: The micro switch is located in the right beam housing. Right beam housing set Description Part Number SPEC...
  • Page 59 1. Opening the Right Beam Housing LM2120E-SP Lawn Mower 2. Remove the top housing, rubber pad and rubber base, switch actuator and spring (fixed on the switch actuator). Switch actuator Spring Micro switch Top housing Rubber pad Rubber base Description...
  • Page 60 1. Opening the Right Beam Housing LM2120E-SP Lawn Mower 3. Remove the micro switch and cable from the bottom housing. 4. Replace with a new switch if it malfunctions. 5. Test the micro switch. • Leave the trigger of the micro switch un-depressed. Turn on the mower, the mower should be turned on properly.
  • Page 61 2. Closing the Right Beam Housing LM2120E-SP Lawn Mower 1. Align the cable in the bottom housing; press the cable into place. 2. Align the locating hole with the locating pin on bottom housing, position the switch into place. Locating hole...
  • Page 62 2. Closing the Right Beam Housing LM2120E-SP Lawn Mower 3. Mount the bottom housing onto the side rail and beam tube. 4. Fully extend the side rail to make sure the dent on the rail appears in the opening of the outer tube.
  • Page 63 2. Closing the Right Beam Housing LM2120E-SP Lawn Mower 5. Fix the switch actuator into the bottom housing. Description Part Number Switch Actuator 3126768001 Locating pin into the This corner into the locating hole in housing outer tube Spring 3660287002...
  • Page 64 2. Closing the Right Beam Housing LM2120E-SP Lawn Mower 6. Attach the rubber pad and base into the rectangle groove of the outer tube. 7. Close the top housing with the 8 tapping screws. Rectangle groove Rubber pad and base...
  • Page 65 3. Opening the Left Beam Housing LM2120E-SP Lawn Mower 1. Remove the 8 tapping screws to open the left beam housing. Left beam housing set Description Part Number SPEC Tapping Screw 5610032004 ST4x16...
  • Page 66 3. Opening the Left Beam Housing LM2120E-SP Lawn Mower 2. Separate the top and bottom housing, remove the bottom housing from the side rail and beam tube. 3. Replace the left beam housing set if they appear to be worn.
  • Page 67 4. Closing the Left Beam Housing LM2120E-SP Lawn Mower 1. Mount the top housing onto the side rail and beam tube. 2. Turn the handle to lock it in any of the operating positions.
  • Page 68 4. Closing the Left Beam Housing LM2120E-SP Lawn Mower 3. Position the rubber pad and rubber base into the groove of bottom housing, making sure the rubber pad pointing outside. 4. Close the bottom housing using screws. Rubber pad pointing...
  • Page 69 5. Replacing the Left/Right Inner Tube ASSY/Beam Tube LM2120E-SP Lawn Mower 1. Remove the switch box covers (see Part 4). 2. Pull the top handle and remove it from the plastic bushings in the two side aluminum tubes. 3. Remove the left/right beam housing (see page 3-6 and 11-12 in this guide)
  • Page 70 5. Replacing the Left/Right Inner Tube ASSY/Beam Tube LM2120E-SP Lawn Mower 4. Pull the left/right inner tube assembly from the outer tube. 5. Replace damaged tubes. Right inner tube ASSY Left inner tube ASSY Beam Tube Description Part Number Left Inner Tube ASSY...
  • Page 71 5. Replacing the Left/Right Inner Tube ASSY/Beam Tube LM2120E-SP Lawn Mower 6. Insert the left/right tube assembly into the outer tube. The left and right inner tubes are not interchangeable. Opening in the plastic sleeve on right side Right inner tube ASSY...
  • Page 72 5. Replacing the Left/Right Inner Tube ASSY/Beam Tube LM2120E-SP Lawn Mower Right inner tube ASSY Left inner tube ASSY...
  • Page 73 5. Replacing the Left/Right Inner Tube ASSY/Beam Tube LM2120E-SP Lawn Mower 7. Close the left/right beam housing (see page 7-10 and 13-14 in this guide). 8. Mount the top hand and switch box covers back (See part 4). THE END...
  • Page 74 REPAIR GUIDELINE PART 7: QUICK ADJUSTING LEVER_LM2120E-SP Lawn Mower...
  • Page 75 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower Description Part Number Quick Adjusting Lever 2824250001...
  • Page 76 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 1. Remove the two tapping screws (one in the decoration cover, another in the inner side of the side tube. Description Part Number SPEC Tapping Screw 5610032004 ST4x16...
  • Page 77 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 2. Remove the clamping ring with a flat head screwdriver . Flat head Clamp ring screwdriver Description Part Number Clamping Ring 5660003003...
  • Page 78 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 3. Press the lever to loosen the pin and then draw it out. Draw the pin out Description Part Number 3550048003 Press the pin...
  • Page 79 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 4. Remove the spring, adjusting lever and decorative cover from the side tube. 5. Replace the damaged parts accordingly. Description Part Number Decorative Cover 3126912001 Quick Adjusting Lever 2824250001 Spring 3660565001...
  • Page 80 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 6. Pass the adjusting lever through the decorative cover (Fig. 1). 7. Move the handle to Grass bag removal position. 8. Align the locking pin with the nut bushing, fully force the pin into the bushing and let the pin extend out of the side tube so that the handle can be locked at the position (Fig.
  • Page 81 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 9. Align the screw dome with the hole in the side tube and mount the decorative cover onto side tube. 10. Fix the spring between the adjusting lever and the side tube. Hole in the tube...
  • Page 82 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 11. Hold the tube and lever, depress the lever to align the hole in the lever with the hole in the plastic part. 12. Fully insert the pin and lock the pin with the clamping ring from the backside.
  • Page 83 Quick Adjusting Lever Replacement LM2120E-SP Lawn Mower 13. Lock the decorative cover with two tapping screws. 14. Test the lever function to check if it can lock the handle at different positions. THE END...
  • Page 84 REPAIR GUIDELINE PART 9: Wheels Replacement_LM2120E-SP Lawn Mower...
  • Page 85 Table of Contents LM2120E-SP Lawn Mower Contents Page Rear Wheel Replacement Front Wheel Replacement 9-10...
  • Page 86 1. Rear Wheel Replacement LM2120E-SP Lawn Mower Gasket If the rear wheel is damaged, replace it. 1. Turn the mower on its back or side and separate the hubcap with a screwdriver. Hubcap Hex bolt Description Part Number SPEC Hubcap...
  • Page 87 1. Rear Wheel Replacement LM2120E-SP Lawn Mower 2. Remove the hex bolt using a socket wrench (S=13mm) to separate the wheel assembly from its protective cap, which is fixed on the self-propelled unit. Hex bolt Socket wrench (S=13mm) Wheel protective cap...
  • Page 88 1. Rear Wheel Replacement LM2120E-SP Lawn Mower Gasket 3. Remove the gear from the wheel assembly by loosening the 3 screws. 4. Replace with a new wheel assembly. Fix it onto the self-propelled unit in reverse order(Notice see next slide).
  • Page 89 1. Rear Wheel Replacement LM2120E-SP Lawn Mower Gasket NOTICE: During wheel reassembly, pay attention to which side of the gear faces the wheel. This side facing wheel This side facing protective cap...
  • Page 90 1. Rear Wheel Replacement LM2120E-SP Lawn Mower 5. If the wheel protective cap is broken, replace it with a new one. Gasket 6. Loosen the screw and remove it with its spring washer and plain washer. Detach the wheel protective cap from the shaft as well as the wave washer.
  • Page 91 1. Rear Wheel Replacement LM2120E-SP Lawn Mower 7. Mount a new protective cap onto the self-propelled unit shaft as well as the wave washer. Fix the cap by tightening the screw with spring washer and plain washer. The recommended torque is 1.8-2.5Nm.
  • Page 92 2. Front Wheel Replacement LM2120E-SP Lawn Mower Gasket If the front wheel is damaged, replace it. 1. Separate the hubcap from the wheel and remove the hex bolt in the same way as the rear wheel. Front wheel Hubcap Wave...
  • Page 93 2. Front Wheel Replacement LM2120E-SP Lawn Mower Gasket 2. Replace with a new front wheel. 3. Mount it onto the axle with the wave washer beneath it. 4. If the axle is broken, replace it (see Part 10). Bent shaft...
  • Page 94 REPAIR GUIDELINE PART 10: Housing Cover and Front Axle Replacement_LM2120E-SP Lawn Mower...
  • Page 95 Table of Contents LM2120E-SP Lawn Mower Contents Page Housing Cover Replacement Front Axle Replacement 7-11...
  • Page 96 1. Housing Cover Replacement LM2120E-SP Lawn Mower Gasket 1. Remove the blade(see Part 1). 2. Remove the service cover and power unit(see Part 2.1) 3. Turn the mower on its back to remove the 14 screws on the poly deck.
  • Page 97 1. Housing Cover Replacement LM2120E-SP Lawn Mower Gasket 4. Remove the power unit of the mower(see Part 2.1). 5. Remove the 2 screws on the height adjusting knob to remove the height adjusting knob. Screw Height adjusting knob Description Part Number...
  • Page 98 1. Housing Cover Replacement LM2120E-SP Lawn Mower 6. Remove the 2 screws on the depth stop plate. 7. Move the height adjusting lever outwards to remove the depth stop plate. Depth stop plate Rubber pad Gasket Height adjusting lever Description...
  • Page 99 1. Housing Cover Replacement LM2120E-SP Lawn Mower 8. Remove the housing cover from the mower. 9. If the housing cover is damaged, replace it with a new one. Assemble it in reverse order. Decorative cover Housing cover Description Part Number...
  • Page 100 2. Front Axle Replacement LM2120E-SP Lawn Mower 1. If the front axle is damaged, remove the housing cover as previous steps show. Front axle Joint...
  • Page 101 2. Front Axle Replacement LM2120E-SP Lawn Mower 2. Remove the E-clip and plain washer on the joint. Front axle E-ring Description Part Number E-clip 5660139002 Plain washer 5650025004...
  • Page 102 2. Front Axle Replacement LM2120E-SP Lawn Mower 3. Separate the joint by hand. WARNING: Take care when performing this operation. Please wear gloves.
  • Page 103 2. Front Axle Replacement LM2120E-SP Lawn Mower 4. Turn the mower on its side. 5. Remove the 2 screws and remove the 2 mounting plates as well as the front axle with wheels. Description Part Number SPEC Tapping screw 5610042014 ST4.2x19...
  • Page 104 2. Front Axle Replacement LM2120E-SP Lawn Mower 6. Disassemble the front wheels(see Part 9). 7. Replace the broken front axle with a new one. 8. Mount the wheels onto the new front axle(see part 9). 9. Mount the front axle into the...
