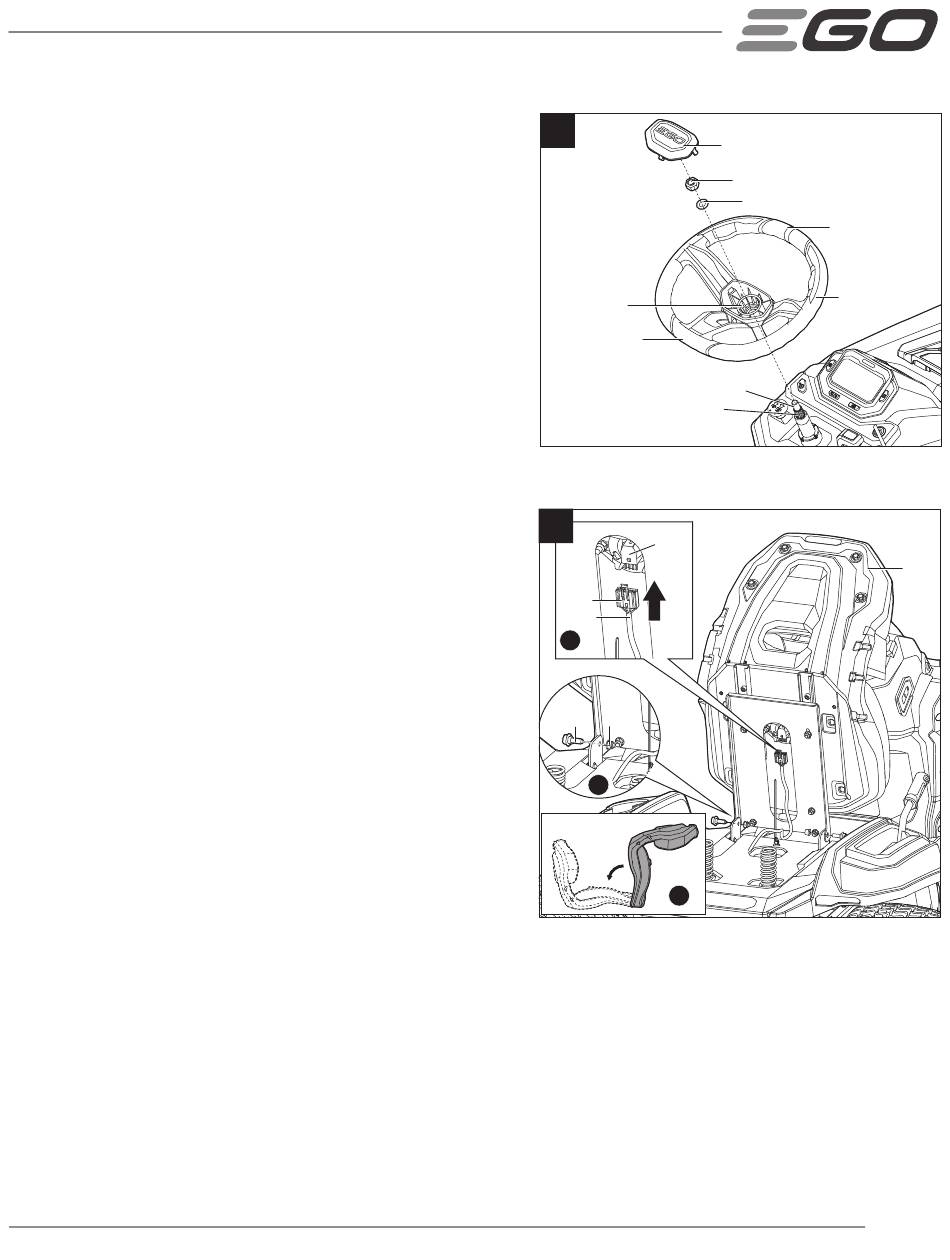

B. INSTALLING THE STEERING WHEEL (FIG. 4)
Required tools (supplied): one 18 mm socket wrench
1. Remove the washer, and M12 nut from the accessory box and
set them aside.
2. With the wheels of the tractor pointing straight forward, insert
the steering wheel onto the steering column by keeping the
center line pointing straight ahead and the flat section facing
toward the seat.
3. Slightly rotate the steering wheel until the gear slot of the
mounting hole is aligned with gear of the steering column.
4. Assemble the washer and nut. Securely tighten them. The
recommended torque is 29.5-33.2 ft-lb (40-45 Nm).
5. Snap the dust cap onto the steering wheel properly.
C. INSTALLING THE SEAT (FIG. 5)
The tractor incorporates a safety interlock system that will stop the
drive motors and blade motors when the operator is unseated for
any reason while the tractor is operating. This is a safety feature
designed to prevent runaway or accidental entanglement.
Required tools (supplied): two combination wrenches.
1. Remove the two step bolt and M8 nut sets from the accessory
box and set them aside.
2. Lay the seat on its front and align the two mounting holes with
the holes in the suspension base.
3. Insert the two sets of bolt and nut and securely tighten them
using the combination wrenches. The recommended torque is
13.3-14.8 ft-lb (18-20 Nm).
4. Insert the cable plug into the socket on the bottom of the seat.
This connects the safety interlock system.
5. Rotate the seat to lay it onto the suspension base.
4
