Section 2: General Information
Introduction
The Power Zone 410 Control Panel is an electronic con-
trol box that functions as an advanced standby generator
controller.
Specialized programs are built into the Power Zone 410
Control Panel to allow customers to configure spare I/O
(inputs/outputs) to their own needs. Some pre-defined
functions can be user customized from measurements to
alarms to special functionality.
Features
The Generac Power Zone Digital Control Platform is a
fully integrated and multipurpose family of controllers for
Generac's generator systems.
Standard Features
•
128 x 64 Graphical Display with Heater
•
Multi-Lingual
•
Full System Status
•
Three-Phase Sensing Digital Voltage Regulator
•
Full Range Standby Operation
•
Full System Status
– Three-Phase AC Volts
– Three-Phase Amps
– kW
– Power Factor
– Oil Pressure
– Water Temperature
– Oil Temperature*
– Oil Level*
– Fuel Pressure and Level
– Engine Speed
– Battery Voltage
– Alternator Frequency
– Time
– Date
– Line Power and Gen Power
– Run Hours
– Service Reminders
– Fault History (Alarm Log)
•
Remote Communications
•
Programmable Auto Crank
•
Emergency Stop
•
On/Off Manual Switch
•
Not in Auto Flashing Light
Technical Manual Power Zone 410 Controller
•
Selectable Low Speed Exercise
•
NFPA 110 Capable**
•
5 A Integrated Battery Charger***
Standard Protections
•
Low Oil Pressure
•
Low Coolant Level
•
High/Low Coolant Temperature
•
Oil Temperature
•
Over/Under Speed
•
Over/Under Voltage
•
Over Frequency
•
Over Current
•
Over Load
•
Battery Voltage
•
Battery Charger Current
•
Phase-to-Phase and Phase-to-Neutral Short Cir-
2
cuits (I
T Algorithm)
•
Ground Fault
*
If equipped; when available
** See modular NFPA 110 components section
*** Operation disabled when optional 10A Battery Char-
ger is installed
Display
•
Easy Menu Structure
•
Multi-Lingual
•
On Screen Editable Parameters
•
Key Function Monitoring
– Three-Phase Voltage, Amperage, kW, kVa, and
kVAr
– Selectable Average or Line to Neutral Voltage
Measurements
– Frequency
– RPM
– Engine Coolant Temperature
– Engine Oil Pressure
– Engine Oil Temperature
– Battery Voltage
– Warning and Alarm Indication
– Diagnostics
– Maintenance Events/Information
– Hourmeter
General Information
5
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the Power Zone 410 and is the answer not in the manual?
Questions and answers

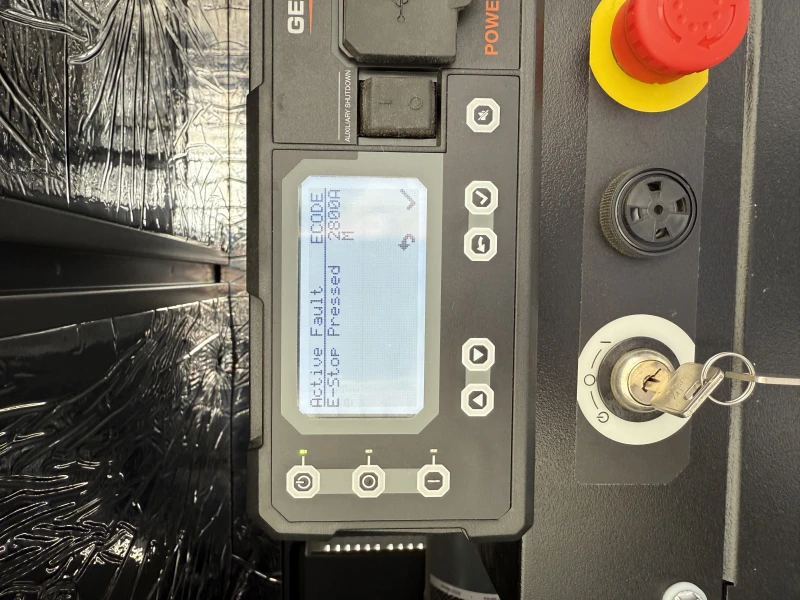

How to reset after it codes
