Section 2 General Information

Equipment Description

The Generac Power Zone Pro Sync is a system of
controllers that communicate with one another to power
and control all facets of a Generac Power Zone Pro Sync
Generator. A Power Zone Pro Sync system is very
customizable, as not all controllers are needed to operate
a generator. A Power Zone Pro Sync Main Controller and
Power Zone Pro Sync Display are the two most essential
pieces, as they are required on every generator for it to
operate.

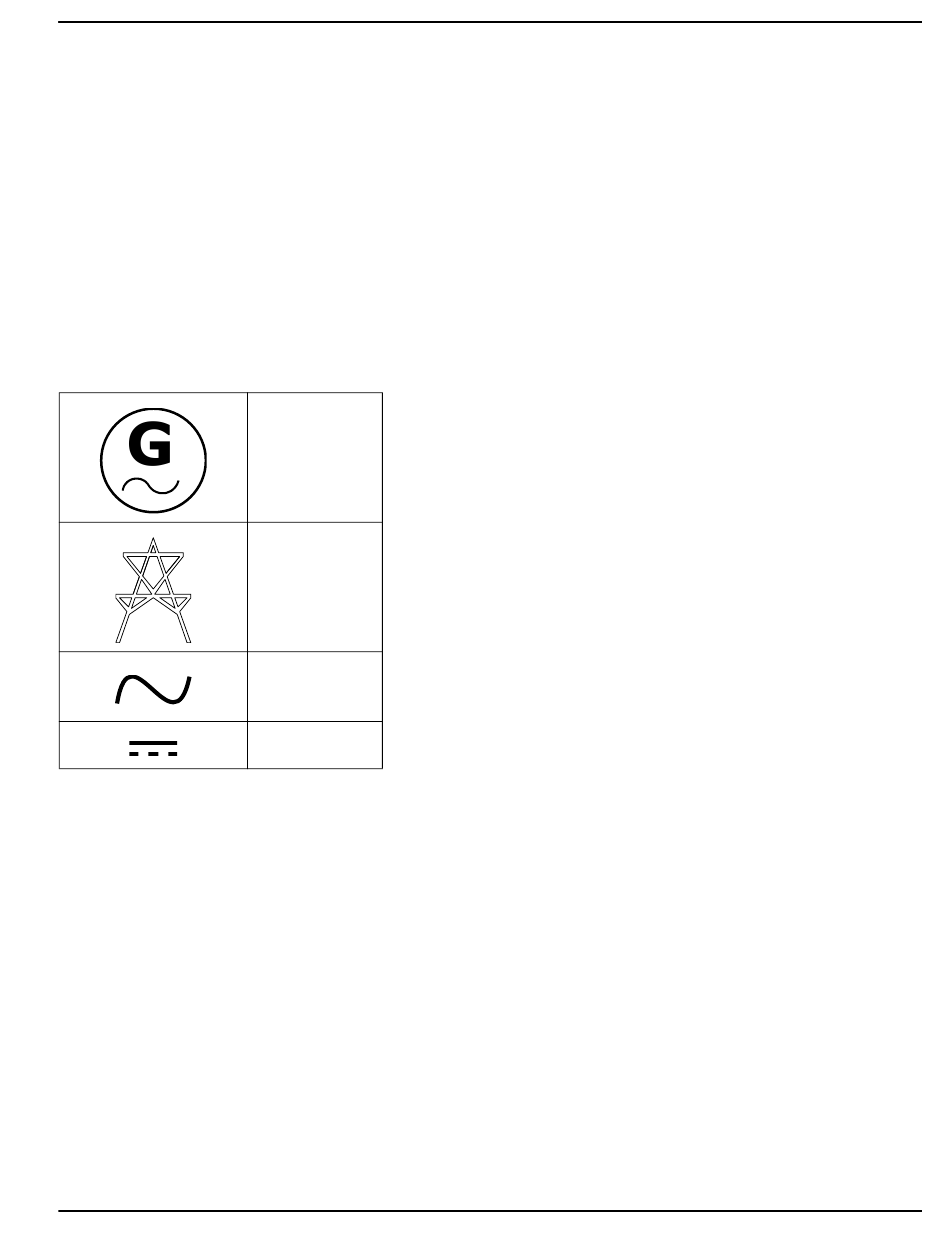

Symbol Definition

Features

• HMI Display Interface Viewable via Most Wi-Fi
®
Bluetooth Devices
• System Configurable via HMI Display and Most Wi-
Fi or Bluetooth Devices
• Remote Communication
Modbus TCP/IP, 10/100 Mbs Ethernet IEEE 802.3,
SNMPv1 and SNMPv2c, Wi-Fi, or Bluetooth
• Modbus RTU over RS-485 (Optional)
• Configurable Analog and Digital I/O
•
Configurable Monitoring of Analog I/O, Digital I/O,
and Machine State Data
• Configurable Detection and Mitigation of Faults
with E-Mail Annunciation
• Configurable Logging of Faults and Events with
Associated Data Capture
•
Configurable Logging and Trending of Data
•
Digitally Controlled Generator Output Voltage and
Frequency Regulation
Owner's Manual for Power Zone Pro Sync
AC Generator
Utility
AC Voltage
DC Voltage
®
via Modbus
•
Standard
Standalone and Parallel Operation
• Customer Programmable Built-in Multichannel PLC
Logic Controller
• Support
Operation
• Alternator I
Breaker Coordination
•
Alternator Ground Fault Indication
Additional Standard Parallel Control Features:
• Reverse Power Protection
• Synchronization with Other Gensets and/or Utility
• Power (kW and kVAR) Sharing with Multiple
Generators or Utility
Standard System Control Features:
•
Built-in PLC Logic Eliminates the Need for External
Controllers Under Most Conditions
• Ethernet
Gensets
• Programmable I/O Channel Properties
• Built-in Diagnostics

Parameters Monitored on Display

• Keyswitch Position Indication
• Amps per Phase - Utility and Generator
• Line to Line and Line to Neutral Volts - Utility and
Generator
• Power Factor - Utility and Generator
• Real Power (kW) - Utility and Generator
• Apparent Power (kVA) - Utility and Generator
• Reactive Power (kVAR) - Utility and Generator
®
or
• Frequency - Utility and Generator
• Engine Speed
•
Engine Coolant Temperature
•
RTU, Engine Oil Pressure
• Engine Oil Temperature
• Battery Voltage
• Shutdown Messages
• Diagnostics
• Maintenance Events/Information
• Engine Run Hours
