Messerschmitt Bf 109E 60
ELECTRIC POWER CONVERSION.
Locate the items neccessary to install
the electric power conversion included
with your model.
Recommend the items necessary to
stall the electric power conversion parts
included with your model.
- Motor: 1800 -2000 Watt
- Propeller: 17x8 ~ 19x10
- ESC: 85A
- Lipo Batteries: 8S - 9S

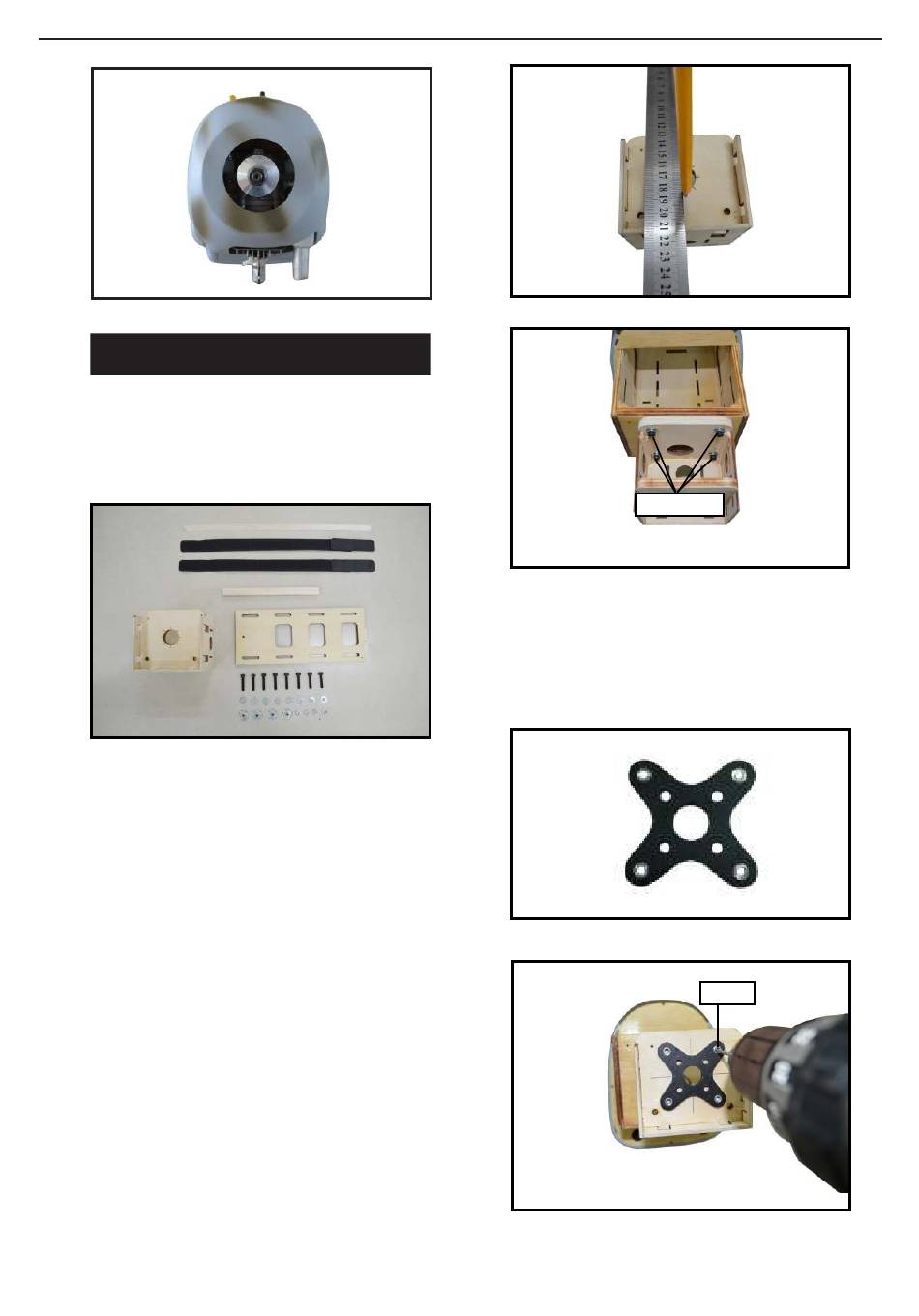

Attach the electric motor box to the
irewall suitable with the cross lines
drawn on the electric motor box and ire-
wall. Using M4x20mm to secure the mo-
tor box to the irewall. Please see pictures
below.
18
Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M4x20mm hex head bolts to se-
cure the motor. Please see picture shown.
in-
Instruction Manual.
M4x20mm
4 mm
