Entering Values Using Sliders and Numeric
Boxes
Many parameters in IQS Manager and module applications can be set
using the following tools.

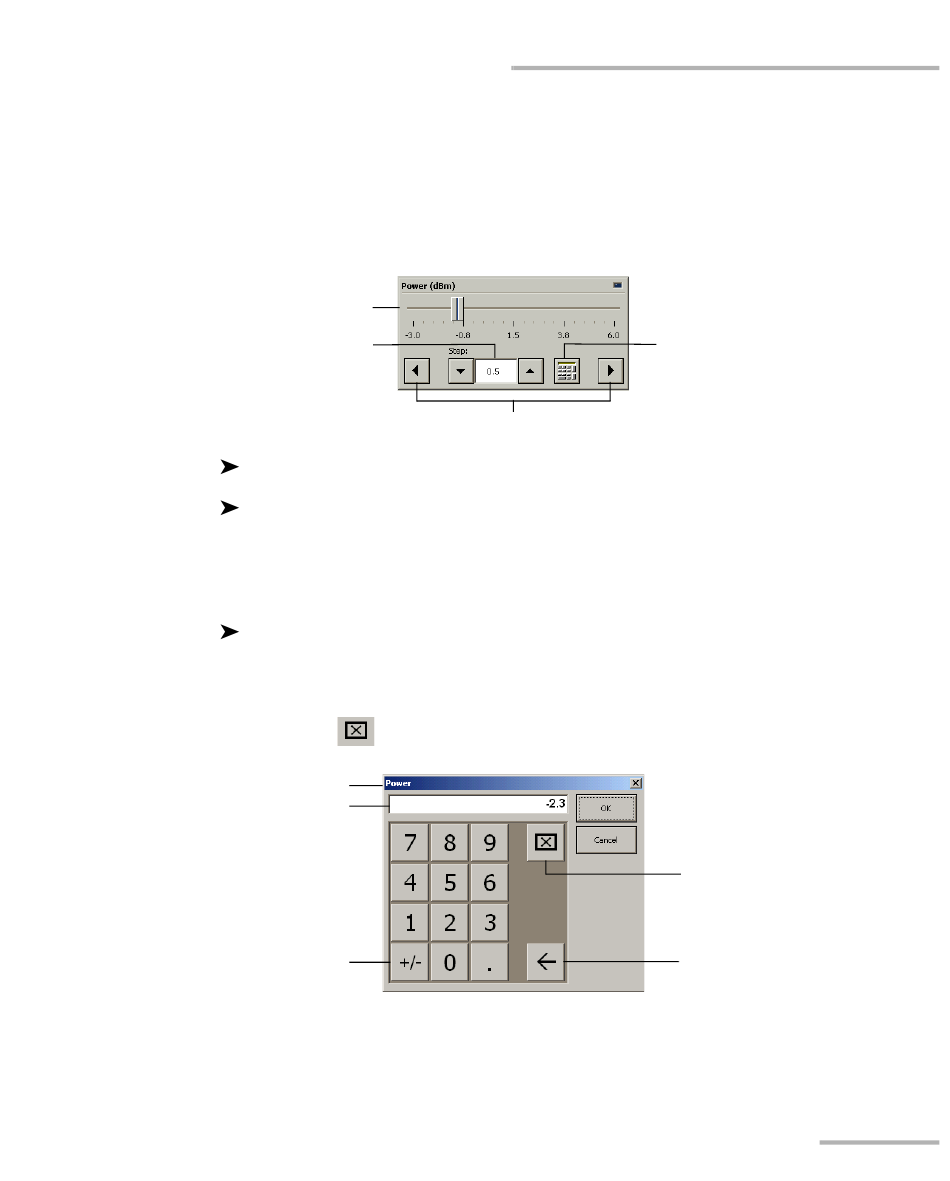

Slider: Drag it to the desired value on the scale below.
Navigation buttons: Click either buttons to move the slider. The slider
moves by steps corresponding to the number in the fine-tuning box,
which you can change by using the up and down arrow buttons next to
the box. You cannot change the list of fine-tuning values from here.
Numeric box: Click it to display the on-screen numeric pad, which you
can use to enter a powe value.
To enter a value using the numeric box:
1. Use the
Parameter identification
Entry display
Toggle button
2. Enter the value.
3. Click OK to confirm the value.
High Speed Power Meter
Getting Started with Your High Speed Power Meter
Slider
Fine-tuning
box
Navigation buttons
button to clear the entry display.

Entering Values Using Sliders and Numeric Boxes

Numeric box
button
Clear button
Backspace button
(to correct a value)
