Getting Started with Your High Speed Power Meter
Inserting and Removing Test Modules

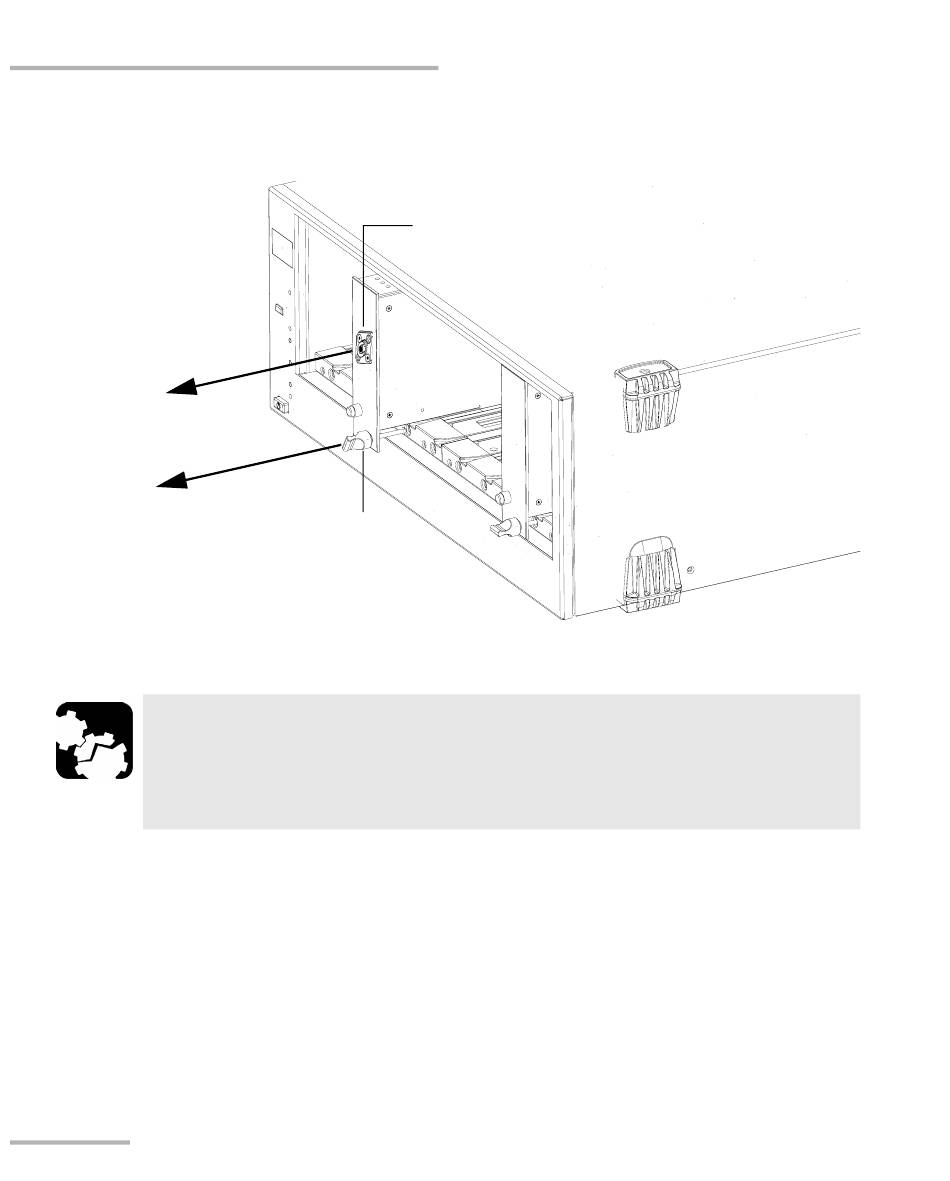

2. Place your fingers underneath the module or hold it by the retaining
screw knob (NOT by the connector) and pull it out.
Pulling out a module by a connector could seriously damage both
the module and connector. Always pull out a module by the
retaining screw knob.
3. Cover empty slots with the supplied protective covers.
3a. Slide the top of the protective cover into the upper grooves of the
3b. Snap the cover into place by pushing the retaining screw knob.
12
NO
YES
Retaining screw
knob
unit.
Connector
