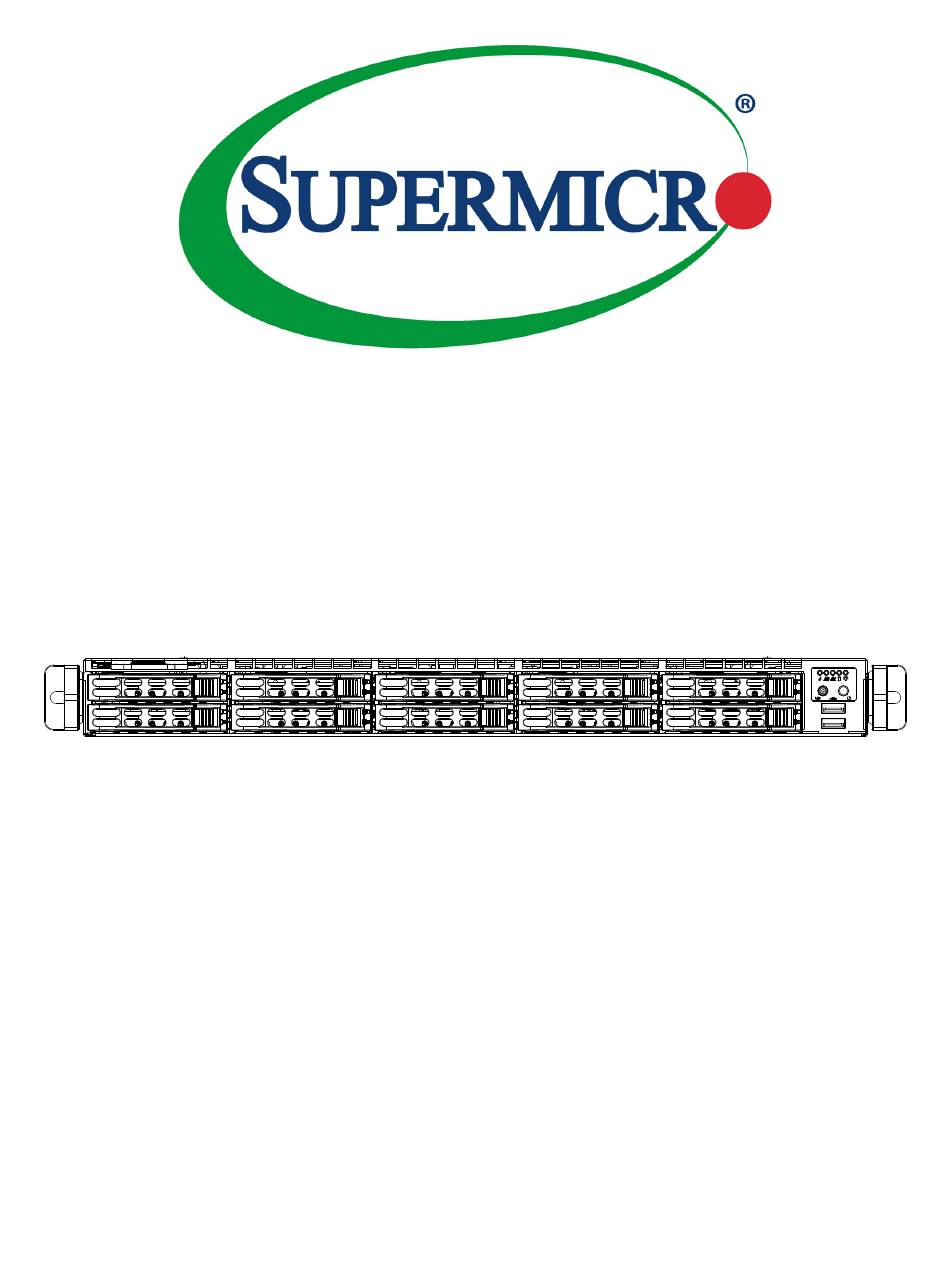

SuperServer
SYS-1029U-TN10RT
USER'S MANUAL
Revision 1.0i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer SYS-1029U-TN10RT and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SuperServer SYS-1029U-TN10RT

Summary of Contents for Supermicro SuperServer SYS-1029U-TN10RT

  • Page 1 SuperServer SYS-1029U-TN10RT USER’S MANUAL Revision 1.0i...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/...

  • Page 4: Table Of Contents

    SuperServer SYS-1029U-TN10RT User's Manual Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Chassis Features .......................10 Control Panel ........................10 Chassis Front ........................11 Chassis Rear ........................12 1.5 Motherboard Layout ......................13 Quick Reference .......................14 System Block Diagram ......................16...
  • Page 5 Contents Chapter 3 Maintenance and Component Installation 3.1 Removing Power ........................26 3.2 Accessing the System ......................27 3.3 Motherboard Components ....................28 Processor and Heatsink Installation ..................28 The Processor Carrier Assembly ...................28 Overview of the Processor Heatsink Module ..............29 Creating the Processor Carrier Assembly ..............30 Assembling the Processor Heatsink Module ..............31 Preparing the CPU Socket for Installation..............32 Installing the Processor Heatsink Module ..............33...
  • Page 6 SuperServer SYS-1029U-TN10RT User's Manual Chapter 4 Motherboard Connections 4.1 Power Connections ......................54 4.2 Headers and Connectors ....................55 Control Panel ........................58 4.3 Input/Output Ports ......................61 Rear I/O Ports ........................61 4.4 Jumpers ..........................62 Explanation of Jumpers.....................62 4.5 LED Indicators ........................64 4.6 Storage Ports ........................66 Chapter 5 Software 5.1 Microsoft Windows OS Installation ..................67...
  • Page 7 SuperServer SYS-1029U-TN10RT User's Manual Contacting Supermicro Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Overview

    SuperServer SYS-1029U-TN10RT User's Manual Chapter 1 Introduction 1.1 Overview This chapter provides a brief outline of the functions and features of the SYS-1029U-TN10RT server. It is based on the X11DPU motherboard and the SC119UTQ10-R1K02-N10T chassis. In addition to the motherboard and chassis, several important parts that are included with the system are listed below.

  • Page 9: System Features

    Eight 4-cm counter-rotating fans, two CPU heatsinks, two air shrouds to direct air flow Input/Output Two SATA 3.0 ports with power-pin built-in, w/support of Supermicro SuperDOM (S-SATA4/S-SATA5) LAN: Two 10 GBaseT; one dedicated BMC port USB 3.0: Two ports on the rear I/O panel (USB 0/1); two ports on the chassis front (USB 3/4) One serial port;...

  • Page 10: Chassis Features

    SuperServer SYS-1029U-TN10RT User's Manual 1.4 Chassis Features Control Panel Power switches and status LEDs are located on the control panel on the front of the chassis. Figure 1-1. Control Panel Control Panel Features Item Features Description The main power switch applies or removes primary power from the power supply to Power button the server but maintains standby power.

  • Page 11: Chassis Front

    Chapter 1: Introduction Chassis Front The illustration below shows the features included on the front of the chassis. Figure 1-2. Front View Chassis Front Features Item Features Description Control Panel Power buttons and status indicators Two USB 3.0 ports Storage Drives Ten 2.5"...

  • Page 12: Chassis Rear

    SuperServer SYS-1029U-TN10RT User's Manual Chassis Rear The illustration below shows the features included on the rear of the chassis. Power supply modules display status lights. Figure 1-4. Rear View Chassis Rear Features Item Features Description Power Supply Two 1000 W redundant power supply modules Two 10GBase-T RJ45 LAN ports Two USB 3.0 ports...

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.5 Motherboard Layout Below is a layout of the X11DPU motherboard with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4. LED1 IPMI_LAN COM1...

  • Page 14: Quick Reference

    Chassis intrusion header NVMe SMBus (I C) headers used for PCI-E hot-plug SMBus clock and data connections JNVI C1/2 (a proprietary NVMe add-on card and cable are required; available only for Supermicro complete systems) JRK1 RAID_Key for onboard NVMe devices JSD1/JSD2...
  • Page 15 Chapter 1: Introduction Description State: Status LED1 UID (Unit Identifier) LED Solid Blue: Unit Identified LEDM1 BMC Heartbeat LED Blinking Green: BMC Normal LEDPWR Onboard Power LED Solid Green: Power On Memory LED Description Status Memory Fault LEDs for Memory Module P1_ LED_P1_A1/LED_P1_A2 Solid Red: Memory Error Occurs A1/Memory Module P1_A2...

  • Page 16: System Block Diagram

    SuperServer SYS-1029U-TN10RT User's Manual System Block Diagram CPU2 CPU1 Socket 00 Socket 01 SYS-1029U-TN10RT System Block Diagram Figure 1-6. System Block Diagram...

  • Page 17: Where To Get Replacement Components

    For faster service, RMA authorizations may be requested online (http://www.supermicro.com/ support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

  • Page 18: Chapter 2 Server Installation

    SuperServer 1029U-TN10RT User's Manual Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components. Caution: Electrostatic Discharge (ESD) can damage electronic components.

  • Page 19: Server Precautions

    Chapter 2: Server Installation • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together. • Always make sure the rack is stable before extending a server or other component from the rack.

  • Page 20: Circuit Overloading

    SuperServer 1029U-TN10RT User's Manual Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 21: Installing The Rails

    Chapter 2: Server Installation 2.3 Installing the Rails There are a variety of rack units on the market, which may require a slightly different assembly procedure. This rail set fits a rack between 25.6" and 33" deep. The following is a basic guideline for installing the system into a rack with the rack mounting hardware provided.

  • Page 22: Installing The Outer Rails Onto The Rack

    SuperServer 1029U-TN10RT User's Manual Installing the Outer Rails onto the Rack Each end of the assembled outer rail includes a bracket with square pegs to fit into your rack holes. If you have an older rack with round holes, these brackets must be removed, and you must use screws to secure the rail to the rack.

  • Page 23: Installing The Chassis Into A Rack

    Chapter 2: Server Installation 2.4 Installing the Chassis into a Rack Once rails are attached to the chassis and the rack, you can install the server. 1. Pull the middle rail out of the front of the outer rail and make sure that the ball bearing shuttle is locked at the front of the middle rail.

  • Page 24: Removing The Chassis From The Rack

    SuperServer 1029U-TN10RT User's Manual Removing the Chassis from the Rack Caution! It is dangerous for a single person to off-load the heavy chassis from the rack without assistance. Be sure to have sufficient assistance supporting the chassis when removing it from the rack.

  • Page 25: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack To install the server into a Telco (or “open”) type rack, use L-shaped brackets (p/n MCP-290- 00016-0N) on either side of the chassis (four total). 1. Determine how far the server will extend out from the front of the rack. The chassis should be positioned so that the weight is balanced between front and back.

  • Page 26: Chapter 3 Maintenance And Component Installation

    SuperServer 1029U-TN10RT User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 27: Accessing The System

    Chapter 3: Maintenance and Component Installation 3.2 Accessing the System The SC119U chassis features a removable top cover, which allows easy access to the inside of the chassis. Removing the Top Cover 1. Press the two release buttons and slide the cover toward the rear. 2.

  • Page 28: Motherboard Components

    Thermal grease is pre-applied on a new heatsink. No additional thermal grease is needed. • Refer to the Supermicro website for updates on processor support. • All graphics in this manual are for illustration only. Your components may look different.

  • Page 29: Overview Of The Processor Heatsink Module

    Chapter 3: Maintenance and Component Installation Overview of the Processor Heatsink Module The Processor Heatsink Module (PHM) contains a heatsink, a processor carrier assembly. Heatsink with Thermal Grease Processor Carrier Processor Processor Heatsink Module Bottom View...

  • Page 30: Creating The Processor Carrier Assembly

    SuperServer 1029U-TN10RT User's Manual Creating the Processor Carrier Assembly To install a processor into the processor carrier, follow the steps below: 1. Hold the processor with the LGA lands (gold contacts) facing up. Locate the small, gold triangle in the corner of the processor and the corresponding hollowed triangle on the processor carrier.

  • Page 31: Assembling The Processor Heatsink Module

    Chapter 3: Maintenance and Component Installation Assembling the Processor Heatsink Module After creating the processor carrier assembly, mount it onto the heatsink to create the processor heatsink module (PHM): 1. Note the label on top of the heatsink, which marks the heatsink mounting holes as 1, 2, 3, and 4.

  • Page 32: Preparing The Cpu Socket For Installation

    SuperServer 1029U-TN10RT User's Manual Preparing the CPU Socket for Installation This motherboard comes with a plastic protective cover on the CPU socket. Remove it carefully to install the Processor Heatsink Module (PHM). CPU Socket with Plastic Protective Cover Remove the plastic protective cover from the CPU socket.

  • Page 33: Installing The Processor Heatsink Module

    Chapter 3: Maintenance and Component Installation Installing the Processor Heatsink Module After assembling the Processor Heatsink Module (PHM), install it onto the CPU socket: 1. Align hole 1 of the heatsink with the printed triangle on the CPU socket. See the left image below.

  • Page 34: Memory

    *4Gb DRAM density is only supported on speeds up to 2666 MT/s **Only the 82xx and 62xx series support 2933 MT/s; for other processors, memory speed as supported by the CPU. Check the Supermicro website for possible updates to memory support.

  • Page 35: Memory Population Guidelines

    Then, if using two DIMMs per channel, install the second DIMM in the black slot. The following memory population sequence table was created based on guidelines provided by Intel to support Supermicro motherboards. The diagram is for illustrative purposes; your motherboard may look different.
  • Page 36 SuperServer 1029U-TN10RT User's Manual Memory Population for the X11 DP Motherboard, 24 DIMM Slots CPUs/DIMMs Memory Population Sequence 1 CPU & 1 DIMM CPU1: P1-DIMMA1 1 CPU & 2 DIMMs CPU1: P1-DIMMA1/P1-DIMMD1 1 CPU & 3 DIMMs CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1 1 CPU & 4 DIMMs CPU1: P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1 1 CPU &...
  • Page 37 Chapter 3: Maintenance and Component Installation Pin 1 CPU1 CPU2 Figure 3-3. Memory Slots...

  • Page 38: Dcpmm Population Table (24 Slots) Based On The 82Xx/62Xx/52Xx/42Xx

    SuperServer 1029U-TN10RT User's Manual DCPMM Population Table (24 Slots) based on the 82xx/62xx/52xx/42xx Symmetric Population for Each CPU DCP & P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- P1/P2- Channel Modes DIMMs DIMMF1 DIMMF2 DIMME1 DIMME2 DIMMD1 DIMMD2 DIMMA2 DIMMA1...
  • Page 39 Chapter 3: Maintenance and Component Installation Notes: • For MM, general NM/FM ratio is between 1:4 and 1:16. Excessive capacity for FM can be used for AD. (NM = Near Memory; FM = Far Memory). • For each individual population, rearrangements between channels are allowed as long as the resulting population is compliant with the PDG rules for the 82xx/62xx/52xx/42xx platform.

  • Page 40: Installing Memory

    SuperServer 1029U-TN10RT User's Manual Installing Memory ESD Precautions Electrostatic Discharge (ESD) can damage electronic com ponents including memory modules. To avoid damaging DIMM modules, it is important to handle them carefully. The following measures are generally sufficient. • Use a grounded wrist strap designed to prevent static discharge. •...

  • Page 41: Motherboard Battery

    Chapter 3: Maintenance and Component Installation Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in section 3.1. 1.

  • Page 42: Chassis Components

    These carriers also help promote proper airflow. For VROC configurations, refer to the VROC appendix in this manual. Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at http://www.

  • Page 43: Installing Drives

    The system supports ten NVMe drives, but four hybrid ports can support SATA with an optional cable to the motherboard, or SAS with an optional add-on card and cable. (See parts list on the webpage, https://www.supermicro.com/products/system/1U/1029/SYS-1029U-TN10RT. cfm?parts=SHOW#jump. Four Hybrid Bays Figure 3-5.
  • Page 44 SuperServer 1029U-TN10RT User's Manual Installing a Drive 1. Remove the dummy drive, which comes pre-installed in the drive carrier, by removing the screws securing the dummy drive to the carrier. These screws are not used to mount the actual hard drive. Figure 3-7.

  • Page 45: Cabling For Nvme

    Chapter 3: Maintenance and Component Installation Cabling for NVMe When cabling the backplane (BPN-SAS3-116A-N10) to the Ultra Riser card (AOC-URN6- i2XT), the NVMe add-on card card (AOC-SLG3-2E4R-P), and the motherboard, it is important to connect the proper ports. Otherwise, some NVMe drives will not be detected. NVMe#2 NVMe#3 XXXXXX...

  • Page 46: Hot-Swap For Nvme Drives

    SuperServer 1029U-TN10RT User's Manual Hot-Swap for NVMe Drives Supermicro Ultra servers support NVMe surprise hot-swap. For even better data security, NVMe orderly hot-swap is recommended. NVMe drives can be ejected and replaced remotely using IPMI. Note: If you are using VROC, see the VROC appendix in this manual instead.

  • Page 47: Checking The Temperature Of An Nvme Drive

    Chapter 3: Maintenance and Component Installation Checking the Temperature of an NVMe Drive There are two ways to check using IPMI. Checking a Drive • IPMI > Server Health > NVMe SSD – Shows the temperatures of all NVMe drives, as in Figure 3-4.

  • Page 48: System Cooling

    SuperServer 1029U-TN10RT User's Manual System Cooling Eight 4-cm counter-rotating fans provide the cooling for the system. Each fan unit is actually made up of two fans joined back-to-back, which rotate in opposite directions. This counter- rotating action generates exceptional airflow and works to dampen vibration levels. Make sure the chassis top cover makes a good seal so the cooling air circulates properly through the chassis.

  • Page 49: System Fan Replacement

    2. Unplug the fan cable from the serverboard and remove the failed fan from the chassis. 3. Replace the failed fan with an identical 4cm fan, available from Supermicro. 4. Push the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans.

  • Page 50: Installing The Air Shroud

    SuperServer 1029U-TN10RT User's Manual Installing the Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The serverboard air shroud does not require screws to install. Installing the Air Shroud 1. Position the air shroud in the chassis as illustrated below. 2.

  • Page 51: Checking The Server Air Flow

    Overheat Temperature Setting Some backplanes allow the overheat temperature to be set at 45, 50, or 55 by changing a jumper setting. For more information, consult the backplane user manual at www.supermicro. com. (Click Support, then the Manuals link.) Responses If the server overheats: 1.

  • Page 52: Power Supply

    • Solid Amber: When illuminated, indicates that the power supply is plugged in, and is in an abnormal state. The system might need service. Please contact Supermicro technical support. Changing the Power Supply Module: 1. Unplug the AC cord from the module to be replaced.

  • Page 53: Pci Expansion Cards

    Chapter 3: Maintenance and Component Installation PCI Expansion Cards The system accepts two x16 full height full-length expansion cards or one double width GPU. Installing a Full Height or GPU Expansion Card 1. Power down the system as described in section 3.1 and remove the cover. 2.

  • Page 54: Chapter 4 Motherboard Connections

    SuperServer 1029U-TN10RT User's Manual Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 55: Headers And Connectors

    Chapter 4: Motherboard Connections 4.2 Headers and Connectors Fan Headers There are eight fan headers on the motherboard. These are 4-pin fan headers, although pins 1-3 are backward compatible with traditional 3-pin fans. Four-pin fans allow fan speeds to be controlled by Thermal Management in IPMI.
  • Page 56 The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from Supermicro. A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.
  • Page 57 C1/2), used for PCI-E SMBus clock and data connections, provide hot-plug support thruough a dedicated SMBus interface. This feature is only available for a Supermicro complete system with a proprietary NVMe add-on card and cable installed. NVMe SMBus Header Pin Definitions...

  • Page 58: Control Panel

    SuperServer 1029U-TN10RT User's Manual Control Panel JF1 contains header pins for various control panel connections. See the figure below for the pin locations and definitions of the control panel buttons and LED indicators. All JF1 wires have been bundled into a single cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the motherboard.
  • Page 59 Chapter 4: Motherboard Connections Power Fail LED The Power Fail LED connection is located on pins 5 and 6 of JF1. Power Fail LED Pin Definitions (JF1) Pin# Definition 3.3V PWR Supply Fail Overheat (OH)/Fan Fail Connect an LED cable to pins 7 and 8 of JF1 to use the Overheat/Fan Fail LED connections. The LED on pin 8 provides warnings of overheat or fan failure.
  • Page 60 SuperServer 1029U-TN10RT User's Manual Power LED The Power LED connection is located on pins 15 and 16 of JF1. Power LED Pin Definitions (JF1) Pin# Definition 3.3V Power LED NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1. NMI Button Pin Definitions (JF1) Pin#...

  • Page 61: Input/Output Ports

    There are two LAN ports on the chassis rear provided by the Ultra add-on card. There is also a dedicated IPMI LAN port on the I/O back panel. For more information on IPMI, refer to the IPMI User's Guide posted on our website at http://www.supermicro.com. Unit Identifier Switch/UID LED Indicator A Unit Identifier (UID) switch and a UID LED indicator are located on the rear of the system.

  • Page 62: Jumpers

    SuperServer 1029U-TN10RT User's Manual 4.4 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 63 Chapter 4: Motherboard Connections VGA Enable/Disable JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled. VGA Enable/Disable Jumper Settings Jumper Setting Definition Pins 1-2 Enabled Pins 2-3 Disabled Watch Dog JWD controls the Watch Dog function.

  • Page 64: Led Indicators

    SuperServer 1029U-TN10RT User's Manual 4.5 LED Indicators LAN LEDs The Ethernet ports each have two LEDs. One LED indicates activity when flashing, while the other LED may be green, amber or off to indicate the speed of the connection. LAN LED (Connection Speed Indicator) LED Color...
  • Page 65 Chapter 4: Motherboard Connections BMC Heartbeat LED LEDM1 is the BMC heartbeat LED. When the LED is blinking green, BMC is functioning normally. Onboard Power LED Indicator LED Color Definition Green: BMC Normal Blinking Memory Fault Indication LEDs The memory fault LEDs provide visual notification to a service technician which memory DIMM slot(s) are at fault due to un-correctable memory errors during POST (Power-On Self- Test).

  • Page 66: Storage Ports

    Intel C621 chipset. In addition, it also has six S-SATA 3.0 ports (S-SATA0-3, S-SATA4/ S-SATA5) that are supported by the Intel SCU. S-SATA4/5 can be used with Supermicro SuperDOMs which are yellow SATA DOM connectors with power pins built in, and do not require external power cables.

  • Page 67: Chapter 5 Software

    1. Create a method to access the MS Windows installation ISO file. That can be a USB flash or media drive. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 68 SuperServer 1029U-TN10RT User's Manual 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.

  • Page 69: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to to a USB flash or media drive.

  • Page 70: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 71: Bmc

    This can be found on a sticker on the chassis and a sticker on the motherboard. The sticker also displays the BMC MAC address. If necessary, the password can be reset using the Supermicro IPMICFG tool. Figure 5-5. BMC Password Label...

  • Page 72: Chapter 6 Bios

    SuperServer 1029U-TN10RT User's Manual Chapter 6 BIOS 6.1 Introduction This chapter describes the AMI BIOS setup utility for the X11DPU and provides the instructions on navigating the setup screens. The BIOS is stored in a Flash EEPROM and can be updated. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted since this manual was published.
  • Page 73 HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2016 after RTC reset. Supermicro X11DPU (Motherboard model) BIOS Version Build Date (of the BIOS) CPLD (Complex Programmable Logic Device) Version: This item displays the CPLD version used in the system.

  • Page 74: Advanced Setup Configurations

    SuperServer 1029U-TN10RT User's Manual 6.3 Advanced Setup Configurations Use the arrow keys to select the Advanced tab and press <Enter> to access the submenu items. Caution: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. If this occurs, revert to the manufacture default settings.
  • Page 75 Chapter 6: BIOS Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...
  • Page 76 SuperServer 1029U-TN10RT User's Manual Throttle on Power Fail Throttling improves reliability and reduces power consumption in the processor via automatic voltage control during processor idle states. Select Enabled to decrease the system power by throttling CPU frequency when one power supply is failed. The options are Disabled and Enabled.
  • Page 77 Chapter 6: BIOS Intel Virtualization Technology (Available when supported by the CPU) Select Enable to use Intel® Virtualization Technology so that I/O device assignments will be reported directly to the VMM (Virtual Memory Management) through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel® platforms, providing the user with greater reliability, security and availability in networking and data-sharing.
  • Page 78 SuperServer 1029U-TN10RT User's Manual Advanced Power Management Configuration CPU P State Control SpeedStep (Pstates) EIST (Enhanced Intel® SpeedStep™ Technology) allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disable and Enable. EIST PSD Function This feature allows the user to change the P-State (Power-Performance State) coordina- tion type.
  • Page 79 Chapter 6: BIOS Package C State Control Package C State This feature allows the user to set the limit on the C-State package register. The options are C0/C1 state, C2 state, C6 (non Retention) state, C6 (Retention) state, No Limit, and Auto.
  • Page 80 SuperServer 1029U-TN10RT User's Manual Link L1 Enable Select Enable for the QPI to enter the L1 state for power saving. The options are Dis- able, Enable, and Auto. IO Directory Cache (IODC) Use this feature to enable the IO Directory Cache (IODC) support. The options are Dis- able, Auto, Enable for Remote InvItoM Hybrid Push, InvItoM AllocFlow, Enable for Re- mote InvItoM Hybrid AllocNonAlloc, and Enable for Remote InvItoM and Remote WViLF.
  • Page 81 Chapter 6: BIOS Memory Topology  The following information will be displayed: P1 DIMMA1/P1 DIMMB1/P1 DIMMC1/P1 DIMMD1/P1 DIMME1/P1 DIMMF1 Memory RAS (Reliability_Availability_Serviceability) Configuration  Memory RAS Configuration Setup Use this submenu to configure the following Memory RAS settings. Static Virtual Lockstep Mode Select Enable to support the static virtual lockstep mode.
  • Page 82 SuperServer 1029U-TN10RT User's Manual memory. The failing DIMM or memory rank will then be disabled. The options are Dis- able and Enable. Patrol Scrub Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source).
  • Page 83 Chapter 6: BIOS MCP1 (IIO PCIe Br5) This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x16 and Auto. P1_NVMe0  Link Speed Use this feature to select the link speed for the PCIe port. The options are Auto, Gen 1 (2.5 GT/s), Gen 2 (5 GT/s), and Gen 3 (8 GT/s).
  • Page 84 SuperServer 1029U-TN10RT User's Manual PCI-E Port Link Status PCI-E Port Link Max PCI-E Port Link Speed PCI-E Port Max Payload Size Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are 128B, 256B, and Auto.
  • Page 85 Chapter 6: BIOS AOC-URN6-i2XT NVME4 (Available when the device is detected by  the system) Link Speed This feature allows the user to select PCI-E support for the device installed in the system. The options are Auto, Gen 1 (2.5 GT/s), Gen 2 (5 GT/s), and Gen 3 (8 GT/s). PCI-E Port Link Status PCI-E Port Link Max PCI-E Port Link Speed...
  • Page 86 SuperServer 1029U-TN10RT User's Manual PCI-E Port Link Status PCI-E Port Link Max PCI-E Port Link Speed PCI-E Port Max Payload Size Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are 128B, 256B, and Auto.
  • Page 87 Chapter 6: BIOS PCI-E Port Link Status PCI-E Port Link Max PCI-E Port Link Speed PCI-E Port Max Payload Size Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are 128B, 256B, and Auto.
  • Page 88 SuperServer 1029U-TN10RT User's Manual (Intel IO Acceleration) IOAT Configuration  Disable TPH Select Yes to deactivate TLP Processing Hint support. The options are No and Yes. Prioritize TPH Use this feature to enable the prioritize TPH support. The options are Enable and Disable.
  • Page 89 Chapter 6: BIOS Intel VMD technology  The Intel Volume Management Device (VMD) is a host bridge to a secondary PCIe domain to provide more bus resources. Intel VMD for Volume Management Device on CPU1  VMD Config for PStack0 Intel®...
  • Page 90 SuperServer 1029U-TN10RT User's Manual VMD Config for PStack2 Intel® VMD for Volume Management Device Select Enable to use the Intel® Volume Management Device Technology for this stack. The options are Disable and Enable. *If this feature is set to Enable, the following features are available: AOC-URN6-i2XT NVME3 VMD (Available when the device is detected by the system) Select Enable to use the Intel®...
  • Page 91 Chapter 6: BIOS P2_NVMe1 VMD (Available when the device is detected by the system) Select Enable to use the Intel® Volume Management Device Technology for this device. The options are Disable and Enable. Hot Plug Capable (Available when the device is detected by the system) Use this feature to enable the hot plug support for PCIe root ports 1A~1D.
  • Page 92 SuperServer 1029U-TN10RT User's Manual Legacy USB Support Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled, and Auto. XHCI Hand-off This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off.
  • Page 93 Chapter 6: BIOS Aggressive Link Power Management When this item is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link to a low power state when the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active.
  • Page 94 SuperServer 1029U-TN10RT User's Manual SATA Port 0~ Port 7 This item displays the information detected on the installed SATA drive on the particular SATA port. • Model number of drive and capacity • Software Preserve Support Hot Plug (SATA Port 0~ Port 7) Select Enabled to enable a SATA port specified by the user.
  • Page 95 Chapter 6: BIOS sSATA Port 0~ Port 5 This item displays the information detected on the installed SATA drive on the particular SATA port. • Model number of drive and capacity • Software Preserve Support Hot Plug (sSATA Port 0~ Port 5) Select Enabled to enable a SATA port specified by the user.
  • Page 96 SuperServer 1029U-TN10RT User's Manual sSATA Device Type (sSATA Port 0~ Port 5) Use this item to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive. PCIe/PCI/PnP Configuration The following information will be displayed: •...
  • Page 97 Chapter 6: BIOS VGA Priority Use this item to select the graphics device to be used as the primary video display for system boot. The options are Onboard and Offboard. RSC-UMR-8 SLOT1 PCI-E x8 OPROM RSC-UMR-8 M.2_PCIe OPROM Select Disabled to deactivate the selected slot, Legacy to activate the slot in legacy mode, and EFI to activate the slot in EFI mode.
  • Page 98 SuperServer 1029U-TN10RT User's Manual *If the item above "Network Stack" is set to Enabled, the following items will be displayed: Ipv4 PXE Support Select Enabled to enable Ipv4 PXE boot support. The options are Disabled and Enabled. Ipv4 HTTP Support Select Enabled to enable Ipv4 HTTP boot support.
  • Page 99 Chapter 6: BIOS 7, 9, 10, 11, 12;), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).  Serial Port 2 Configuration Serial Port 2 Configuration This submenu allows the user the configure settings of Serial Port 2.
  • Page 100 SuperServer 1029U-TN10RT User's Manual COM1 Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 101 Chapter 6: BIOS Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
  • Page 102 SuperServer 1029U-TN10RT User's Manual VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer.
  • Page 103 Chapter 6: BIOS Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects the settings for the function keys and the key pad used for Putty, which is a terminal emulator designed for the Windows OS.
  • Page 104 SuperServer 1029U-TN10RT User's Manual key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits Per second This item sets the transmission speed for a serial port used in Console Redirection.
  • Page 105 Chapter 6: BIOS Trusted Computing (Available when a TPM device is installed  and detected by the BIOS) Security Device Support If a Trusted Platform Module (TPM) device is connected to the TPM header (JTPM1) on the motherboard and this feature is set to Enable, onboard security devices will be available for the TPM support to enhance data integrity and network security.
  • Page 106 SuperServer 1029U-TN10RT User's Manual TXT Support Intel® TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality, and integrity of data stored or created on the system. Use this feature to enable or disable TXT Support. The options are Disabled and Enabled. HTTP Boot Configuration ...
  • Page 107 Chapter 6: BIOS Discard Changes and Exit  Select this feature to discard the changes you have made and exit from the system. Delete Certification  If this feature is set to Enable, the certificate enrolled in the system will be deleted. The options are Enable and Disable.
  • Page 108 SuperServer 1029U-TN10RT User's Manual Select a specific DIMM to view more information. DIMMs on socket 0x0000: (an example socket ID; several may be available DIMM ID 0x0001 (an example DIMM ID; several may be available) Press <Enter> and the following information regarding this DIMM is displayed. View settings or select an action below.
  • Page 109 Chapter 6: BIOS Subsystem device ID 0x97A Device locator P1-DIMMA2 Subsystem revision ID 0x18 Interface format code 0x0301 (Non-Energy Backed Byte Addressable) Manufacturing info valid Manufacturing date 18-37 Manufacturing location 0xA2 Memory type Logical Non-Volatile Device Memory bank label P0_Node0_Channel0_Dimm1 Data width label [b] Total width [b] Speed [MHz]...
  • Page 110 SuperServer 1029U-TN10RT User's Manual Configuration status [Valid] SKU violation ARS status [Completed] Overwrite DIMM status [Not started] Last shutdown time Fri Dec 21 17:29:23 UTC 2018 First fast refresh Viral policy enable Viral state Latched Last shutdown status: PM ADR Command Received, DDRT Power Fail Command Received, PMIC 12V/ DDRT 1.2V Power Loss (PLI), Controller's FW State Flush Complete, Write Data Flush Complete, PM Idle Received Unlatched last shutdown status: Unknown...
  • Page 111 Chapter 6: BIOS Value <42 C> Non-critical threshold Critical lower threshold Critical upper threshold Fatal threshold State [Normal] Alarm enabled state Use this setting to establish the non-critical threshold alarm. Choices are 1 and 0. Sensor Type [Media temperature] Value <39 C> Non-critical threshold Critical lower threshold Critical upper threshold...
  • Page 112 SuperServer 1029U-TN10RT User's Manual Value <1783> Sensor Type [FW error count] Value <8> Sensor Type [Unlatched dirty shutdown count] Value <138> Modify non-critical thresholds Controller temperature [C] 98 Media temperature [C] Percentage remaining [%] 50 Apply changes Press <Enter> to apply changes. Update firmware Specify the firmware image to load on the DIMMs on the next system restart and select Update.
  • Page 113 Chapter 6: BIOS Secure erase Use this feature to erase all persistent data. The options are Yes and No Freeze lock Use this feature to prevent further lock state changes until the next reboot. Configure data policy Specify the data policy settings on ALL the DIMMs. First fast refresh state: Disabled or Enabled Depending on the settings of the following feature, Enable/Disable first fast refresh, [Disabled] or [Enabled] will be displayed.
  • Page 114 SuperServer 1029U-TN10RT User's Manual Memory Mode size: App Direct #1 size: 170.0 GiB App Direct #1 index: App Direct #1 settings x6 - 4KB IMC x 4KB Channel App Direct #2 size: App Direct #2 index: App Direct #2 settings A reboot is required for the memory allocation goal to be processed by the BIOS.
  • Page 115 Chapter 6: BIOS Namespaces Use this submenu to display, create, modify, and delete namespaces. Select a namespace to view more information. (*If a namespace has been created, it is displayed here.) NamespaceID Name Health Status. 0x00000101 Healthy Use this feature to display details for or modify selected namespace. View details for or modify selected namespace.
  • Page 116 SuperServer 1029U-TN10RT User's Manual Create namespace Name Press <Enter> to type in a name of namespace. Region ID This feature displays the region ID on which to create namespace. Mode Use this feature to set namespace mode. The options are None and Sector. The option, None, is for raw access only.
  • Page 117 Chapter 6: BIOS Choose diagnostics type: Quick diagnostics Select Enabled to perform quick diagnostics test. The options are Disabled and Enabled. DIMM ID 0x0001 Select Enabled to enable the diagnostics procedure for this DIMM. The options are Disabled and Enabled. DIMM ID 0x0101 Select Enabled to enable the diagnostics procedure for this DIMM.
  • Page 118 SuperServer 1029U-TN10RT User's Manual TestName: FW State: Ok Message: The firmware consistency and settings check succeeded. Preferences Use this submenu to display or modify user preferences. View and/or modify user preferences. Default DIMM ID: Use this feature to modify the default display of DIMM identifiers. The options are Handle and UID.
  • Page 119 Chapter 6: BIOS Intel(R) DCPMM 1.0.0.3380 HII Driver Healthy Controller 665c5c98 Child 0 Healthy Intel(R) 10GbE Driver 7.0.19 x64 Healthy Controller 63f38f18 Child 0 Healthy Intel(R) Ethernet Controller 10 Gigabit X540-AT2 Healthy Controller 63f37398 Child 0 Healthy Intel(R) Ethernet Controller 10 Gigabit X540-AT2 Healthy Intel(R) PRO/1000 8.5.21 PCI-E Healthy...

  • Page 120: Event Logs

    SuperServer 1029U-TN10RT User's Manual 6.4 Event Logs Use this tab page to configure Event Log settings. Change SMBIOS Event Log Settings  Enabling/Disabling Options SMBIOS Event Log Change this item to enable or disable all features of the SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 121 Chapter 6: BIOS SMBIOS Event Log Standard Settings Log System Boot Event This option toggles the System Boot Event logging to enabled or disabled. The options are Enabled and Disabled. MECI The Multiple Event Count Increment (MECI) counter counts the number of occurrences that a duplicate event must happen before the MECI counter is incremented.

  • Page 122: Ipmi

    SuperServer 1029U-TN10RT User's Manual 6.5 IPMI Use this tab page to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI STATUS (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system. System Event Log ...
  • Page 123 Chapter 6: BIOS When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 124 SuperServer 1029U-TN10RT User's Manual Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1). VLAN Use this item to enable or disable the IPMI VLAN function. The options are Disable and Enable.

  • Page 125: Security

    Chapter 6: BIOS 6.6 Security Use this tab page to configure Security settings. Administrator Password Press Enter to set the user password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long. User Password Press Enter to set the user password which is required to enter the BIOS setup utility.
  • Page 126 SuperServer 1029U-TN10RT User's Manual Secure Boot Use this item to enable secure boot. The options are Disabled and Enabled. Secure Boot Mode Use this item to select the secure boot mode. The options are Standard and Custom. CSM Support Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot.
  • Page 127 Chapter 6: BIOS Key Exchange Keys (KEK)  Select Set New to load the KEK from the manufacturer's defaults. Select Append to add the KEK from the manufacturer's defaults list to the existing KEK. The default setting is Set New. Authorized Signatures ...

  • Page 128: Boot

    SuperServer 1029U-TN10RT User's Manual 6.7 Boot Use this tab page to configure Boot Settings. Boot mode select Use this item to select the type of device that the system is going to boot from. The options are LEGACY, UEFI, and DUAL. The default setting is DUAL. LEGACY to EFI support Use this item to enable the EFI boot support.
  • Page 129 Chapter 6: BIOS • Legacy/UEFI/Dual Boot Order #6 • Legacy/UEFI/Dual Boot Order #7 • Legacy/UEFI/Dual Boot Order #8 • UEFI/Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 •...

  • Page 130: Save & Exit

    SuperServer 1029U-TN10RT User's Manual 6.8 Save & Exit Use this tab page to configure Save & Exit settings. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.
  • Page 131 Chapter 6: BIOS Listed on this section are other boot options for the system (i.e., Built-in EFI shell). Select an option and press <Enter>. Your system will boot to the selected boot option. Default Options Restore Defaults To set this feature, select Restore Optimized Defaults from the Save & Exit menu and press <Enter>.

  • Page 132: Appendix A Bios Error Codes

    When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 133: Appendix B Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 134 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 135 SuperServer 1029U-TN10RT User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 136 Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 137 SuperServer 1029U-TN10RT User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 138 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 139 SuperServer 1029U-TN10RT User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터...
  • Page 140 Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 141 SuperServer 1029U-TN10RT User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 142 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 143 SuperServer 1029U-TN10RT User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 144 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 145 SuperServer 1029U-TN10RT User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 146 Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 147 SuperServer 1029U-TN10RT User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 148 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 149 SuperServer 1029U-TN10RT User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 150 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 151 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 152 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 153: Appendix C System Specifications

    SuperServer 1029U-TN10RT User's Manual Appendix C System Specifications Processors Dual Intel Xeon 82xx/62xx/52xx/42xx/32xx or 81xx/61xx/51xx/41xx/31xx processors in a P (LGA3647) socket; UPI up to 10.4GT/s; support CPU TDP 70-205W with IVR Note: Refer to the motherboard specifications pages on our website for updates to supported processors. Chipset Intel C621 chipset BIOS...
  • Page 154 Appendix C: System Specifications Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 32 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Other: VCCI-CISPR 32 and AS/NZS CISPR 32 Environmental: Directive 2011/65/EU and Delegated Directive (EU) 2015/863 and Directive 2012/19/EU...

  • Page 155: Appendix D Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 156 USB device or a writable CD/DVD. Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
  • Page 157 SuperServer 1029U-TN10RT User Manual 3. After locating the healthy BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.
  • Page 158 Appendix D: UEFI BIOS Recovery 5. After the BIOS recovery process is complete, press any key to reboot the system. 6. Using a different system, extract the BIOS package into a USB flash drive. 7. Press <Del> continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu.
  • Page 159 SuperServer 1029U-TN10RT User Manual 8. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process. Note: Do not interrupt this process until the BIOS flashing is complete.

  • Page 160: Appendix E Crash Dump Using Ipmi

    In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. For this purpose you can download a crash dump of status information using IPMI. The IPMI manual is available at https://www.supermicro.com/ solutions/IPMI.cfm.
  • Page 161 SuperServer 1029U-TN10RT User's Manual Downloading the Crash Dump File 1. In the IPMI interface, click the Miscellanous tab, then the Trouble Shooting option. 2. Click the Dump button and wait five minutes for the file to be created. (No confirm ation message will appear.) 3.

  • Page 162: Appendix F Cpu-Based Raid For Nvme

    Appendix F CPU-Based RAID for NVMe Appendix F CPU-Based RAID for NVMe Intel Virtual RAID on CPU (Intel VROC) is an enterprise RAID solution for NVMe SSDs ® directly attached to Intel Xeon Scalable processors. Intel Volume Management Device (VMD) is an integrated controller inside the CPU PCI-E root complex.
  • Page 163 SuperServer 1029U-TN10RT User's Manual Additional Information Additional information is available on the product page for the Supermicro add-on card and the linked manuals. www.supermicro.com/products/accessories/addon/AOC-VROCxxxMOD.cfm F.1 Hardware Key The Intel VROC hardware key is a license key that detects the Intel VROC SKU and activates the function accordingly.
  • Page 164 Appendix F CPU-Based RAID for NVMe F.2 Enabling NVMe RAID RAID for NVMe SSDs must be enabled through the UEFI BIOS. 1. Install the patch as described in the Restrictions and Requirements section on a previous page. 2. Reboot the server. 3.
  • Page 165 SuperServer 1029U-TN10RT User's Manual • For 1029U-TN10RT populated with ten U.2 NVMe drives: CPU1 Configuration CPU2 Configuration • For 2029U-TR or 2029U-E1CR populated with four U.2 NVMe drives: CPU1 Configuration CPU2 Configuration • For 2029U-TN24R4T populated with 24 U.2 NVMe drives: CPU1 Configuration CPU2 Configuration Figure F-2.
  • Page 166 Appendix F CPU-Based RAID for NVMe 6. Press [F4] to save the configuration and reboot the system. 7. Press [DEL] to enter BIOS. 8. Switch to Advanced > Intel(R) Virtual RAID on CPU > All Intel VMD Controllers > Create RAID Volume. 9.
  • Page 167 SuperServer 1029U-TN10RT User's Manual F.3 Status Indications An LED indicator on the drive carrier shows the RAID status of the drive. Drive Carrier Status LED Indicator Status State (red) Normal function Locating 4 Hz blink Fault Solid on Rebuilding 1 Hz Blink IBPI SFF 8489 Defined Status LED States F.4 Hot Swap Drives Intel VMD enables hot-plug and hot-unplug for NVMe SSDs, whether from Intel or other...
