DMICLASSIC FAMILY - OPERATING MANUAL // PAGE 15

5.3 DRILLING TEMPLATE

5.3.1 DMICLASSIC B

There are two variants for mounting. In the Standard Position the drilled holes should be 8 mm from the
front edge of the Table Top and 43.8 mm apart.
Alternatively, the drilled holes can be set to the Transportation Position, 24 mm from the front edge of the
Table Top and 43.8 mm apart. The Transportation Position allows the DMIclassic B to be slid backwards under-
neath the Table Top, so that the Handset does not protrude from the front edge of the table when in transport.
The Side Edge of the DMIclassic B does not have to be flush with the Table's Side Edge. Leave a minimum of
20 mm between the outer hole and the Side Edge to ensure the DMIclassic B does not protrude from the side
43.8 mm
1.724"
Transportation Position
Standard Position

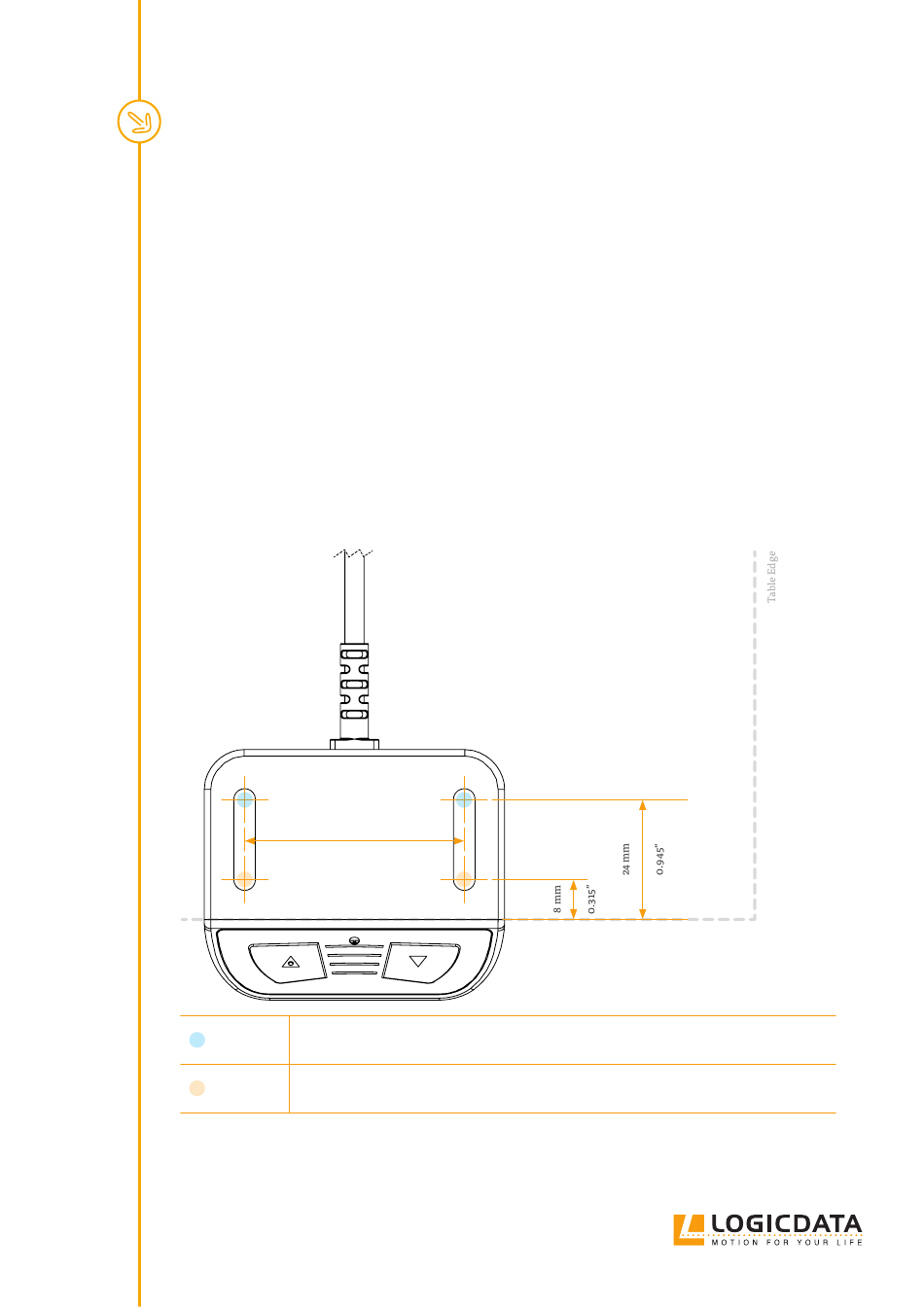

Fig. 5: Drilling template, DMIclassic B
Table Edge
