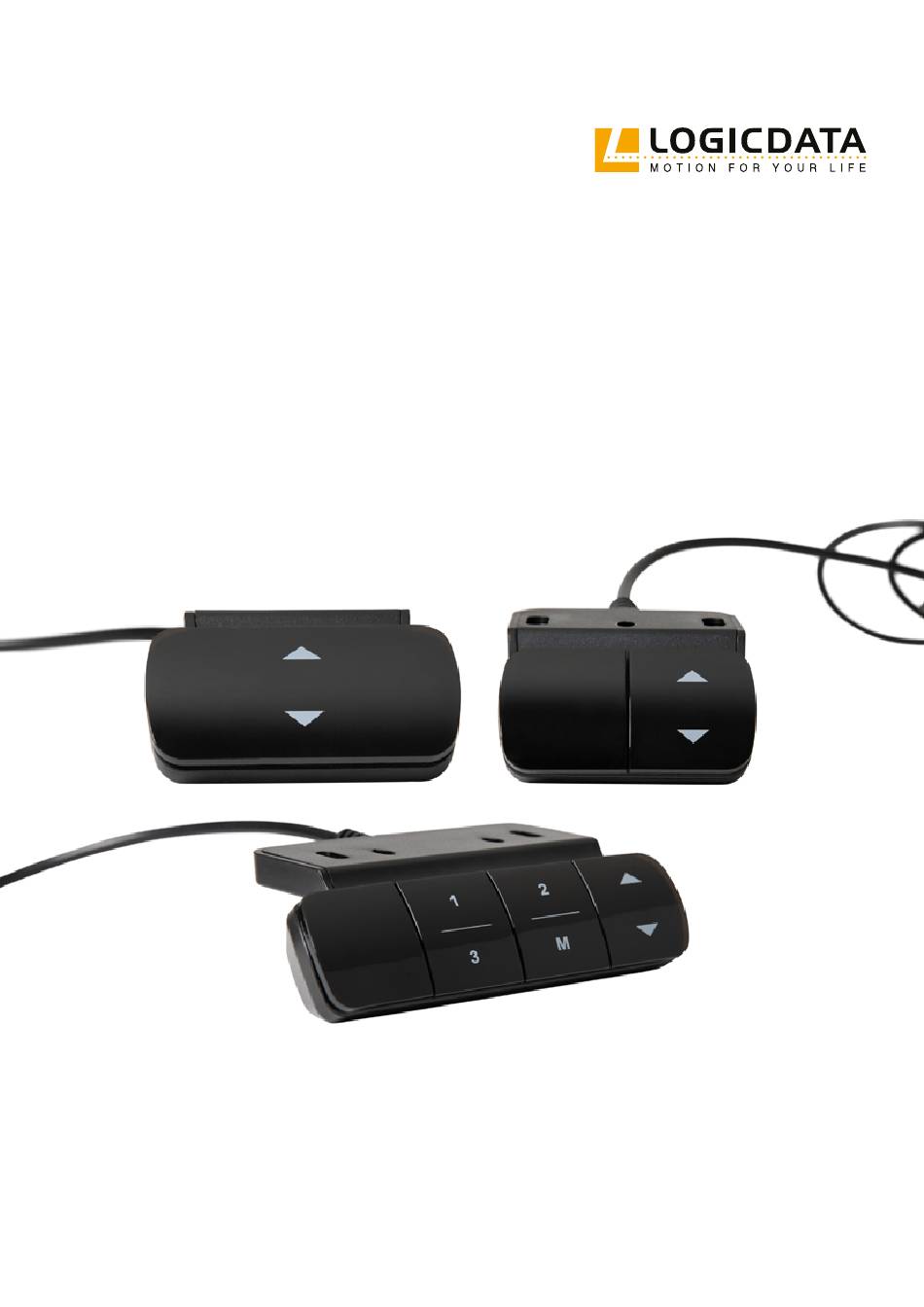

- Page 1 DOCUMENT VERSION 1.0 | FEBRUARY 2023 CBIsolid Family Operating Manual Valid for: • CBIsolid B • CBIsolid D • CBIsolid C...
- Page 2 CBISOLID FAMILY OPERATING MANUAL // PAGE 2 CBIsolid Family - Operating Manual Document Version 1.0 / February 2023 This document was originally published in English LOGICDATA Electronic & Software Entwicklungs GmbH Wirtschaftspark 18 8530 Deutschlandsberg Austria Telefon: +43 (0) 3462 51 98 0...
- Page 3 CBISOLID FAMILY OPERATING MANUAL // PAGE 3 CONTENTS General information Other applicable documents Copyright Royalty-free use of images and text Trademarks Safety Target audience General safety regulations Intended use Reasonably foreseeable misuse Explanation of symbols and signal words Liability Residual risks Skilled Persons Notes for Resellers Scope of delivery...
- Page 4 CBISOLID FAMILY OPERATING MANUAL // PAGE 4 6.2.1 Required Components 6.2.2 Process 6.2.3 Completing Assembly Operation Adjusting the Table Top Height Saving a Memory Position Adjusting the Table to a Memory Position Additional Information Factory Reset (S0 Reset) 8.1.1 Using CBIsolid B and D Handsets 8.1.2 Using CBIsolid C Handset Disassembly Maintenance...
- Page 5 Height-Adjustable Table Systems. The license does not include logos, designs, and page layout elements belonging to LOGICDATA. The Reseller may make any necessary changes to the text and images to adapt them for the purpose of end user documentation. Texts and images may not be sold in their current state, and may not be published or sublicensed digitally.
- Page 6 • Do not remove, change, bridge, or bypass any protection, safety, or monitoring equipment • Do not convert or modify any components without written approval from LOGICDATA • In the event of malfunction or damage, faulty components must be replaced immediately •...
- Page 7 2.6 LIABILITY LOGICDATA products comply with all currently applicable health and safety regulations. However, risk can result from incorrect operation or misuse. LOGICDATA is not liable for damage or injury caused by: • Improper product use • Disregard of the documentation •...
- Page 8 CBISOLID FAMILY OPERATING MANUAL // PAGE 8 ensure their product complies with all relevant directives, standards, and laws. LOGICDATA shall not be held liable for any damage that is directly or indirectly caused by the delivery or use of this document.
- Page 9 2.9 NOTES FOR RESELLERS Resellers are companies that purchase LOGICDATA products for installation in their own products. INFO For reasons of EU conformity and product safety, Resellers should provide end users with an Operating Manual in their native EU official language.
- Page 10 CBISOLID FAMILY OPERATING MANUAL // PAGE 10 3 SCOPE OF DELIVERY The standard scope of delivery for Handsets in the CBIsolid Family consists of the Handset and its pre- attached cable. All other components necessary for installing the Handsets are not supplied by the reseller. 4 UNPACKAGING NOTICE Ensure proper ESD handling during unpackaging.
- Page 11 CBISOLID FAMILY OPERATING MANUAL // PAGE 11 5 PRODUCTS The CBIsolid Family of Handsets consists of 3 products: • CBIsolid B • CBIsolid D • CBIsolid C KEY PRODUCT FEATURES UP / DOWN Keys Memory Position Keys Memory Save Key LED Display Drilling Holes *Cables not shown.
- Page 12 CBISOLID FAMILY OPERATING MANUAL // PAGE 12 5.2 DIMENSIONS 5.2.1 CBIsolid B Length 59 mm | 2.322” Width 58.1 mm | 2.287” Height 32.5 mm | 1.281” 58.1mm 2.287” Fig. 4: Product dimensions, CBIsolid B 5.2.2 CBIsolid D Length 59 mm | 2.322” Width 58.1 mm | 2.287”...
- Page 13 CBISOLID FAMILY OPERATING MANUAL // PAGE 13 5.2.3 CBIsolid C Length 59.1 mm | 2.326” Width 112.5 mm | 4.429” Height 33.3 mm | 1.312” 112.5mm 4.429 ” Fig. 6: Product dimensions, CBIsolid C 5.3 DRILLING TEMPLATES 5.3.1 CBIsolid B 22mm 0.866”...
- Page 14 CBISOLID FAMILY OPERATING MANUAL // PAGE 14 5.3.2 CBIsolid D 16mm 0.63” Fig. 8: Drilling Template, CBIsolid D 5.3.3 CBIsolid C 22mm 0.866” Fig. 9: Drilling Template, CBIsolid C...
- Page 15 CBISOLID FAMILY OPERATING MANUAL // PAGE 15 6 ASSEMBLY This chapter describes the process of installing the CBIsolid Family Handset into the Height-Adjustable Table System. SAFETY DURING ASSEMBLY The following safety instructions are valid for each Handset within the CBIsolid Family. Hazards relating only to the installation of a specific Handset are listed in that Handset‘s assembly instructions.
- Page 16 CBISOLID FAMILY OPERATING MANUAL // PAGE 16 6.2 ASSEMBLY: CBIsolid B/D/C 6.2.1 REQUIRED COMPONENTS CBIsolid B, D or C 2 Mounting Screws Tool Screwdriver INFO Screw specifications ST4. 2*16 If possible, do not use countersunk-head screws. Fig. 10: Screw Specifications 6.2.2 PROCESS 1.
- Page 17 CBIsolid Handset is connected. CBIsolid Handsets are compatible with a large number of LOGICDATA Control Boxes. Before using the Table System, you must also read the Operating Manual for the installed Control Box, including all relevant safety information, in full.
- Page 18 CBISOLID FAMILY OPERATING MANUAL // PAGE 18 ADJUSTING THE TABLE TOP HEIGHT CAUTION Risk of minor or moderate injury through crushing Your fingers may be crushed when you attempt to change the height of the table. • Keep fingers away from moving parts •...
- Page 19 (EN 60335-1). These cannot be met by LOGICDATA Control Boxes. • LOGICDATA is not liable for injuries or damage caused by activating the double- click function 1. Double-click the required Memory Position Key (e.g. 2) ▸ The table will move to the Memory Position. You do not have to hold the Key...
- Page 20 CBISOLID FAMILY OPERATING MANUAL // PAGE 20 8 ADDITIONAL INFORMATION This section contains specific functions when using CBIsolid family handsets. A full list of Software- Dependent Functions can be found in the Operating Manual of the installed Control Box. FACTORY RESET (S0 RESET) With this function you can reset the Control Box to its factory settings.
- Page 21 Using a Handset alongside unauthorized spare or accessory parts may lead to death or serious injury through electric shocks and other hazards. • Only use accessory parts produced or approved by LOGICDATA • Only use replacement parts produced or approved by LOGICDATA •...
- Page 22 CBISOLID FAMILY OPERATING MANUAL // PAGE 22 8.4 TROUBLESHOOTING A list of common problems and their solutions can be found in the Operating Manual of the installed Control Box. 8.5 DISPOSAL All products in the CBIsolid Family are subject to the WEEE Directive 2012/19/EU. •...
- Page 23 LOGICDATA LOGICDATA North America, Inc. Electronic & Software Entwicklungs GmbH 1525 Gezon Parkway SW, Suite C Wirtschaftspark 18 Grand Rapids, MI 49512 8530 Deutschlandsberg Austria Phone: +43 (0)3462 5198 0 Phone: +1 (616) 328 8841 Fax: +43 (0)3462 5198 1030 E-mail: office.na@logicdata.net...
