SMARTNEO OPERATING MANUAL // PAGE 13

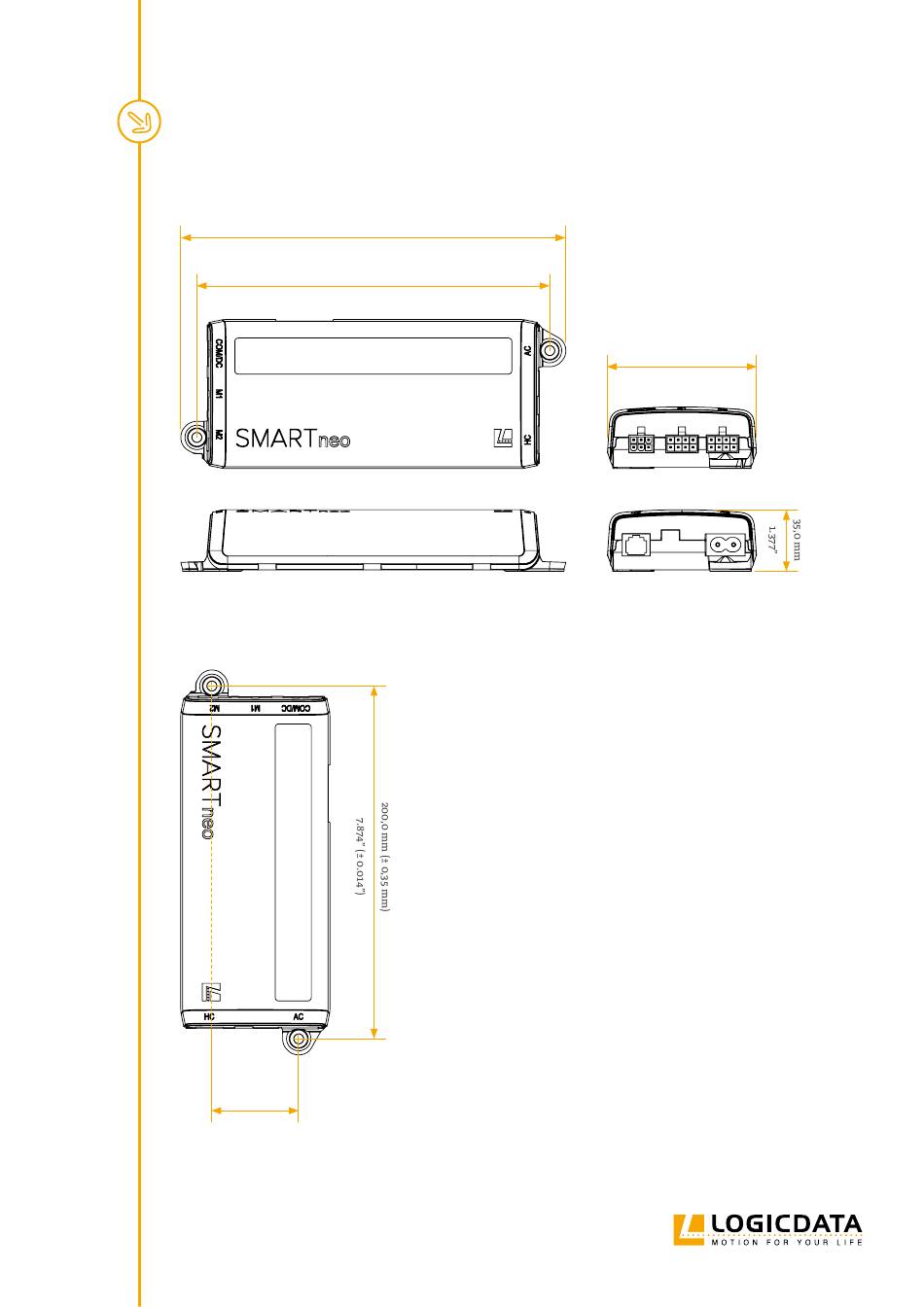

4.2 DIMENSIONS

218,2 mm
8.590"
200,0 mm
7.874"
84,5 mm
3.326"
Fig. 3: Dimensions SMARTneo-2G / SMARTneo-3G

4.2.1 DRILLING TEMPLATE

49,2 mm
(± 0,15 mm)
1.937"
(± 0.006")
Fig. 4: Drilling Template SMARTneo-2G / SMARTneo-3G
