Gateway Layout
5.3. Gateway Layout

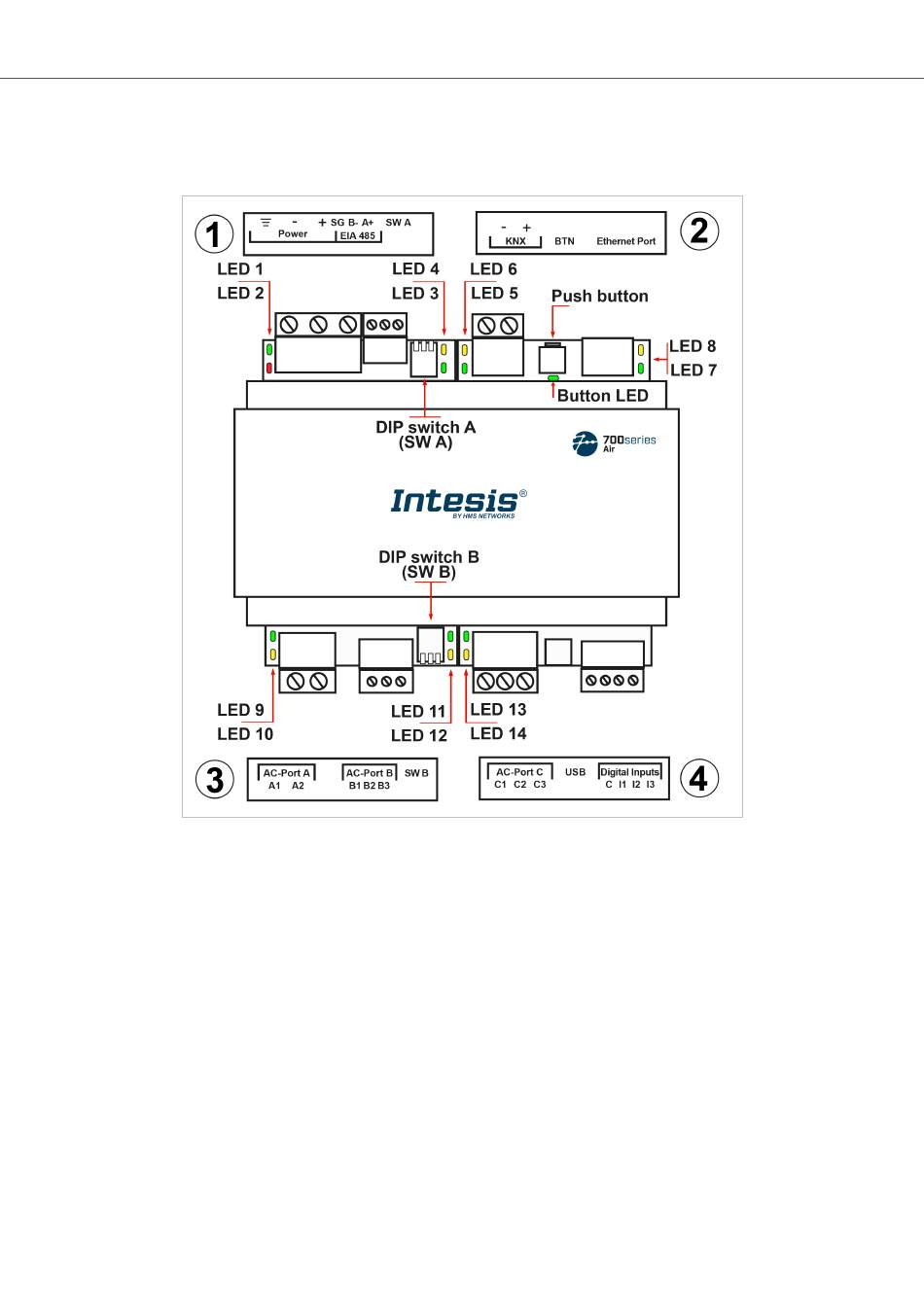

Figure 6. Disposition of hardware elements in the gateway
Plastic covers numbered in the image as ①, ②, ③, and ④ can be easily disassembled.
The following sections explain each element in more detail: LEDs, DIP switches, and the push button.
