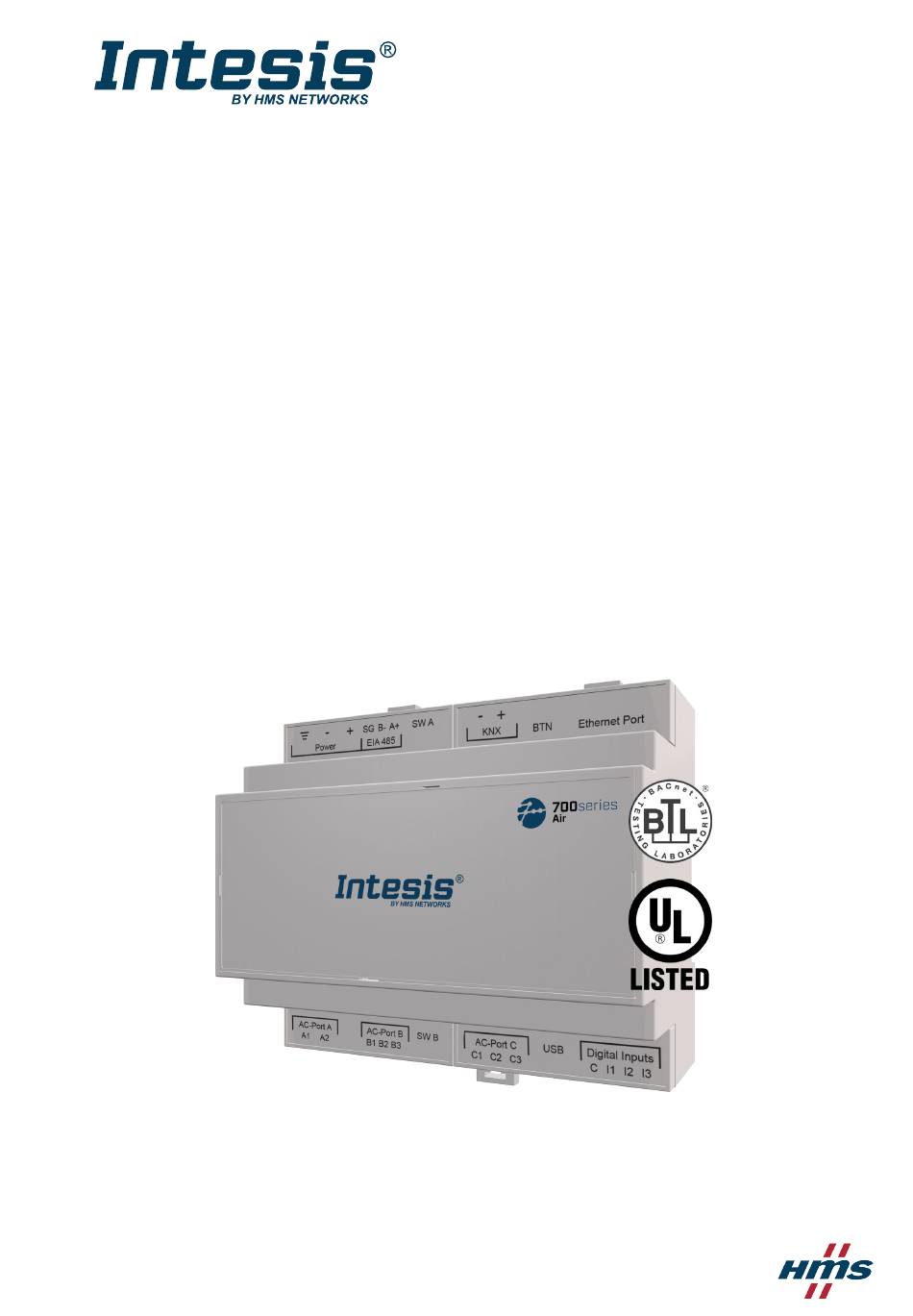

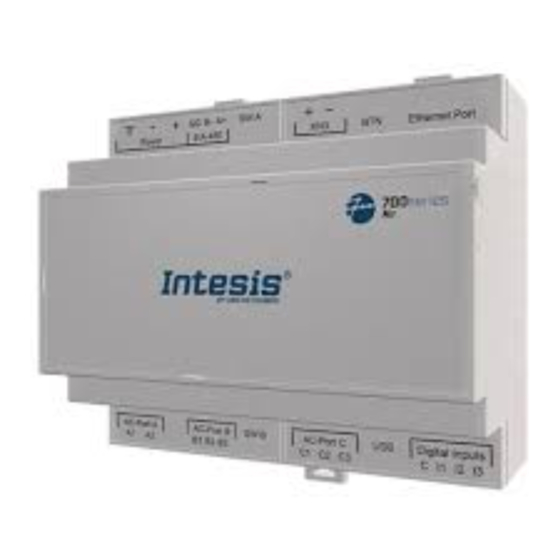

- Page 1 ENGLISH Hisense VRF with KNX, Serial and IP support IN770AIR00XO000 GATEWAY USER MANUAL Version 1.0.0 Publication date 2023-04-30...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: Table Of Contents
Hisense VRF with KNX, Serial and IP support Table of Contents 1. Description and Order Codes ..................... 1 2. Licensing ..........................2 3. General Information ........................ 3 3.1. Intended Use of the User Manual ..................3 3.2. General Safety Information ....................3 3.3. -
Page 4: Description And Order Codes
Description and Order Codes Hisense VRF with KNX, Serial and IP support 1. Description and Order Codes IN770AIR00xO000 Gateway Modbus®, KNX®, BACnet®, and Home Automation® gateway for Hisense® air conditioning systems ORDER CODE LEGACY ORDER CODE INBACHIS016O000 INBACHIS064O000 IN770AIR00xO000 INKNXHIS016O000 INKNXHIS064O000 INMBSHIS016O000 INMBSHIS064O000 The x stands for S, M, or L, depending on the license you have purchased. -
Page 5: Licensing
Hisense VRF with KNX, Serial and IP support Licensing 2. Licensing Distribution license(s) for the IN770AIR00xO000 gateway: Maximum AC units Order Code License Indoor units Outdoor units IN770AIR00SO000 Small IN770AIR00MO000 Medium NOTE The order code may vary depending on the product seller and the buyer's location. Page 2 of 37 USER MANUAL Version 1.0.0... -
Page 6: General Information
General Information Hisense VRF with KNX, Serial and IP support 3. General Information 3.1. Intended Use of the User Manual This manual contains the main features of this Intesis gateway and the instructions for its appropriate installation, configuration, and operation. The contents of this manual should be brought to the attention of any person who installs, configures, or operates this gateway or any associated equipment. - Page 7 Hisense VRF with KNX, Serial and IP support Admonition Messages and Symbols NOTE Additional information which may facilitate installation and/or operation. Helpful advice and suggestions. NOTICE Remarkable Information. Page 4 of 37 USER MANUAL Version 1.0.0...
-
Page 8: Overview
Overview Hisense VRF with KNX, Serial and IP support 4. Overview This document describes the available applications for this IN770AIR00xO000 gateway. IMPORTANT This document assumes that the user is familiar with these technologies. Figure 1. Integration of Hisense AC systems into Modbus / BACnet installations Figure 2. -
Page 9: Inside The Package
Hisense VRF with KNX, Serial and IP support Inside the Package Figure 3. Integration of Hisense AC systems into Home Automation installations 4.1. Inside the Package Items included: • Intesis IN770AIR00xO000 gateway • USB Mini-B type to USB A type cable •... -
Page 10: Gateway General Functionality
Gateway General Functionality Hisense VRF with KNX, Serial and IP support 4.3. Gateway General Functionality With this Intesis IN770AIR00xO000 gateway, you can easily integrate Hisense air conditioning (AC) systems into an installation based on Modbus TCP, Modbus RTU, KNX, BACnet/IP, BACnet MS/TP, or Home Automation. To do so, the gateway acts as a server device of the installation itself, accessing all signals from each air conditioner unit and controlling the whole AC network. -
Page 11: Hardware
Hisense VRF with KNX, Serial and IP support Hardware 5. Hardware 5.1. Mounting IMPORTANT Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, water, high relative humidity, or dust. IMPORTANT Maximum mounting height: below 2 meters (6.5 feet). NOTE Mount the gateway on a wall or over a DIN rail. - Page 12 Mounting Hisense VRF with KNX, Serial and IP support DIN rail mounting Keep the clips down in their original position. Fit the gateway’s top side clips in the upper edge of the DIN rail. Use a screwdriver or similar to pull the bottom clip down. Fit the low side of the gateway in the DIN rail and let the clip switch back to its original position, locking the gateway to the rail.
-
Page 13: Connection
Hisense VRF with KNX, Serial and IP support Connection 5.2. Connection CAUTION Disconnect all systems from the power source before manipulating and connecting them to the gateway. 5.2.1. Gateway Connectors Figure 4. General view of all gateway connectors 1. Power supply: 12 to 36 VDC / 24 VAC 6. - Page 14 Connection Hisense VRF with KNX, Serial and IP support IMPORTANT Use solid or stranded wires (twisted or with ferrule). Wire cross-section/gauge for all wire connectors: • 1 core: 0.5 to 2.5 mm (24 to 11 AWG). • 2 cores: 0.5 to 1.5mm (24 to 15 AWG).
-
Page 15: Common Connections
Hisense VRF with KNX, Serial and IP support Connection 5.2.2. Common Connections 5.2.2.1. Connecting the Gateway to the Power Supply The power supply connector is a green pluggable terminal block (3 poles) labeled as Power. IMPORTANT • Use SELV-rated NEC class 2 or limited power source (LPS) power supply. •... -
Page 16: Connection Procedure For Modbus
Connection Hisense VRF with KNX, Serial and IP support 5.2.3. Connection Procedure for Modbus NOTE Remember to check the Common Connections (page 12). For Modbus TCP: 1. Connect the Modbus TCP Ethernet cable to the gateway's Ethernet Port. IMPORTANT Use a straight Ethernet UTP/FTP CAT5 or higher cable. IMPORTANT If communicating through the LAN of the building, contact the network administrator and make sure traffic on the used port is allowed through all LAN paths. - Page 17 Hisense VRF with KNX, Serial and IP support Connection 2. Use the supplied USB Mini-B type to A type cable to connect the gateway, through its USB port, to a PC to configure it with Intesis MAPS. NOTE For Modbus RTU only, you can use the Ethernet Port to connect the gateway and the PC instead. NOTICE Find all you need to know about the gateway configuration and Intesis MAPS in the IN770AIR00xO000 Gateway configuration guide.
-
Page 18: Connection Procedure For Knx
Connection Hisense VRF with KNX, Serial and IP support 5.2.4. Connection Procedure for KNX NOTE Remember to check the Common Connections (page 12). 1. Connect the KNX TP communication cable to the gateway's KNX port. IMPORTANT Observe polarity. 2. Use the supplied USB Mini-B type to A type cable to connect the gateway, through its USB port, to a PC to configure it with Intesis MAPS. -
Page 19: Connection Procedure For Bacnet
Hisense VRF with KNX, Serial and IP support Connection 5.2.5. Connection Procedure for BACnet NOTE Remember to check the Common Connections (page 12). For BACnet/IP: 1. Connect the BACnet/IP Ethernet cable to the gateway's Ethernet Port. The correct cable to use depends on where the gateway is connected: •... - Page 20 Connection Hisense VRF with KNX, Serial and IP support 2. Use the supplied USB Mini-B type to A type cable to connect the gateway, through its USB port, to a PC to configure it with Intesis MAPS. NOTE For BACnet MS/TP only, you can use the Ethernet Port to connect the gateway and the PC instead.
-
Page 21: Connection Procedure For Home Automation
Hisense VRF with KNX, Serial and IP support Connection 5.2.6. Connection Procedure for Home Automation NOTE Remember to check the Common Connections (page 12). 1. Connect the Home Automation Ethernet cable to the gateway's Ethernet Port. IMPORTANT Use a straight Ethernet UTP/FTP CAT5 or higher cable. IMPORTANT If communicating through the LAN of the building, contact the network administrator and make sure traffic on the used port is allowed through all LAN paths. -
Page 22: Led Indicators
LED Indicators Hisense VRF with KNX, Serial and IP support 5.3. LED Indicators Figure 5. Gateway layout Color Description Top side LED 1 (PWR) Green Power on (not programmable) LED 2 (ERR) Blinking: Hardware error LED 3 Green 485 Tx (RS485 for BACnet or Modbus) LED 4 Yellow 485 Rx (RS485 for BACnet or Modbus) - Page 23 Hisense VRF with KNX, Serial and IP support LED Indicators NOTE LEDs are hidden behind the four frontal labeled covers. These covers are assembled by pressure, so you just need to pull them to remove them. Page 20 of 37 USER MANUAL Version 1.0.0...
-
Page 24: Dip Switches
DIP Switches Hisense VRF with KNX, Serial and IP support 5.4. DIP Switches See figure: Gateway layout (page 19) 1: DIP switch A (SW A). 2: DIP switch B (SW B). Each DIP switch is dedicated to a 485 port, and its function is to activate or deactivate the termination resistor and the polarization of each port: Position Description... -
Page 25: Push Button
Hisense VRF with KNX, Serial and IP support Push Button 5.5. Push Button Find the push button at the top side, between the KNX and the Ethernet connectors. See Figure Gateway layout (page 19) NOTE The button is hidden and only accessible using a thin object like a paper clip. Common functionality: Reset factory settings Push the button. -
Page 26: Technical Specifications
Technical Specifications Hisense VRF with KNX, Serial and IP support 5.6. Technical Specifications Plastic, type PC (UL 94 V-0). Color: Light Grey. RAL 7035 Case Net dimensions (dxwxh): 90x106x58 mm / 3.5x4.2x2.3" Recommended space for installation (dxwxh): 130x115x100 mm / 5.1x4.5x3.9" Wall: M3 25mm (1") length screws. -
Page 27: Dimensions
Hisense VRF with KNX, Serial and IP support Dimensions 5.7. Dimensions • Net dimensions (DxWxH) Millimeters: 90 x 106 x 58 mm Inches: 3.5 x 4.2 x 2.3" • Clear space for installation (DxWxH) Millimeters: 130 x 115 x 100 mm Inches: 5.1 x 4.5 x 3.9"... -
Page 28: Available Applications
Available Applications Hisense VRF with KNX, Serial and IP support 6. Available Applications 6.1. Integration into Modbus Systems 6.1.1. Modbus Registers NOTICE This part is common for Modbus RTU and TCP. Functions to read Modbus registers: • 03 Read Holding Registers. •... - Page 29 Hisense VRF with KNX, Serial and IP support Integration into Modbus Systems Register name Possible values Vane Position 4 (all the units) 1-Set Vane Position 4 Vane Position 5 (all the units) 1-Set Vane Position 5 Vane Position 6 (all the units) 1-Set Vane Position 6 Vane Position 7 (all the units) 1-Set Vane Position 7...
- Page 30 Integration into Modbus Systems Hisense VRF with KNX, Serial and IP support Register name Possible values Modbus address Dehumidification 0-Disabled, 1-Enabled (U[1..64]*100 )+ Dehumidification Correction 0-0, 1-(-1), 2-(-2) (U[1..64]*100 )+ Compresor Stop Cause 255-Operation Off, Other-Refer to the AC user manual (U[1..64]*100 )+ Expansion Valve Open 0 ..
-
Page 31: Integration Into Knx Systems
Hisense VRF with KNX, Serial and IP support Integration into KNX Systems 6.2. Integration into KNX Systems 6.2.1. KNX Signals The following tables list all available KNX signals for this gateway. NOTE Physical Address: The gateway supports (P/S) and (P/I/S) format levels. NOTICE Communication object flags: •... - Page 32 Integration into KNX Systems Hisense VRF with KNX, Serial and IP support Table 6. Indoor units signals Flags Object name Possible values Control_On/Off 0-Off,1-On 1.001-DPT_Switch (1bit) Status_On/Off 0-Off,1-On 1.001-DPT_Switch (1bit) 20.105-DPT_HVACContrMode Control_Operation mode 0-Auto, 1-Heat, 3-Cool, 9-Fan, 14-Dry (1byte) 20.105-DPT_HVACContrMode Status_Operation mode 0-Auto, 1-Heat, 3-Cool, 9-Fan, 14-Dry (1byte)
- Page 33 Hisense VRF with KNX, Serial and IP support Integration into KNX Systems Flags Object name Possible values Thersholds (0..14%; 15..29%; Status_Vane position scaling 30..43%; 44..57%; 58..71%; 72..86%; 5.001-DPT_Scaling (1byte) 87..100%) Control_Vane position auto 1-Set auto vane, 0-Stop auto vane 1.001-DPT_Switch (1bit) 1-Vane auto active, 0-Vane auto not Status_Vane position auto 1.001-DPT_Switch (1bit)
- Page 34 Integration into KNX Systems Hisense VRF with KNX, Serial and IP support Flags Object name Possible values Status_Setpoint Remote controll 0-No disabled, 1-Disabled 1.002 DPT_Bool (1bit) disablement Control_Fan Remote controll 0-No disabled, 1-Disabled 1.002 DPT_Bool (1bit) disablement Status_Fan Remote controll 0-No disabled, 1-Disabled 1.002 DPT_Bool (1bit) disablement...
-
Page 35: Integration Into Bacnet Systems
Hisense VRF with KNX, Serial and IP support Integration into BACnet Systems 6.3. Integration into BACnet Systems NOTICE You can see the Protocol Implementation Conformance Statement (PICS) document in 6.3.1. BACnet Objects NOTICE This part is common for BACnet MS/TP and BACnet/IP. Input object types: •... - Page 36 Integration into BACnet Systems Hisense VRF with KNX, Serial and IP support Object name Possible values Object type Object instance Cool: 19 .. 30ºC / 66 .. 86ºF OXXUXX_Setpoint_S 0-Analog Input (U[1..64]*100 )+0 Heat: 17 .. 30ºC / 63 .. 86ºF Cool: 19 ..
-
Page 37: Integration Into Home Automation Systems
Hisense VRF with KNX, Serial and IP support Integration into Home Automation Systems 6.4. Integration into Home Automation Systems 6.4.1. Home Automation Signals The following tables list all available Home Automation signals for this gateway. NOTE • SET: Command used to control the indoor unit. It is sent by the client. •... -
Page 38: Late Configuration: Change The Gateway's Protocol
Late Configuration: Change the Gateway's Protocol Hisense VRF with KNX, Serial and IP support 7. Late Configuration: Change the Gateway's Protocol Reconfiguring the gateway with a different protocol is very easy: Connect the gateway to the PC and open the configuration tool Intesis MAPS. Select the new template you need. -
Page 39: Error Codes
Hisense VRF with KNX, Serial and IP support Error Codes 8. Error Codes NOTE These error codes are the same for all applications. Error code RC error code Error category Error description 65535 (-1) General Communication error between the gateway or the RC and the AC unit General No active error Indoor unit... - Page 40 Error Codes Hisense VRF with KNX, Serial and IP support Pump motor over current IU model setting Incorrect setting address or refrigerant cycle Incorrect setting address or refrigerant cycle Number setting Incorrect setting of indoor unit number for H-LINK type Inverter Water temperature abnormal NOTE...
