MODEL H2™ Feeding System

Anti-Roost Installation

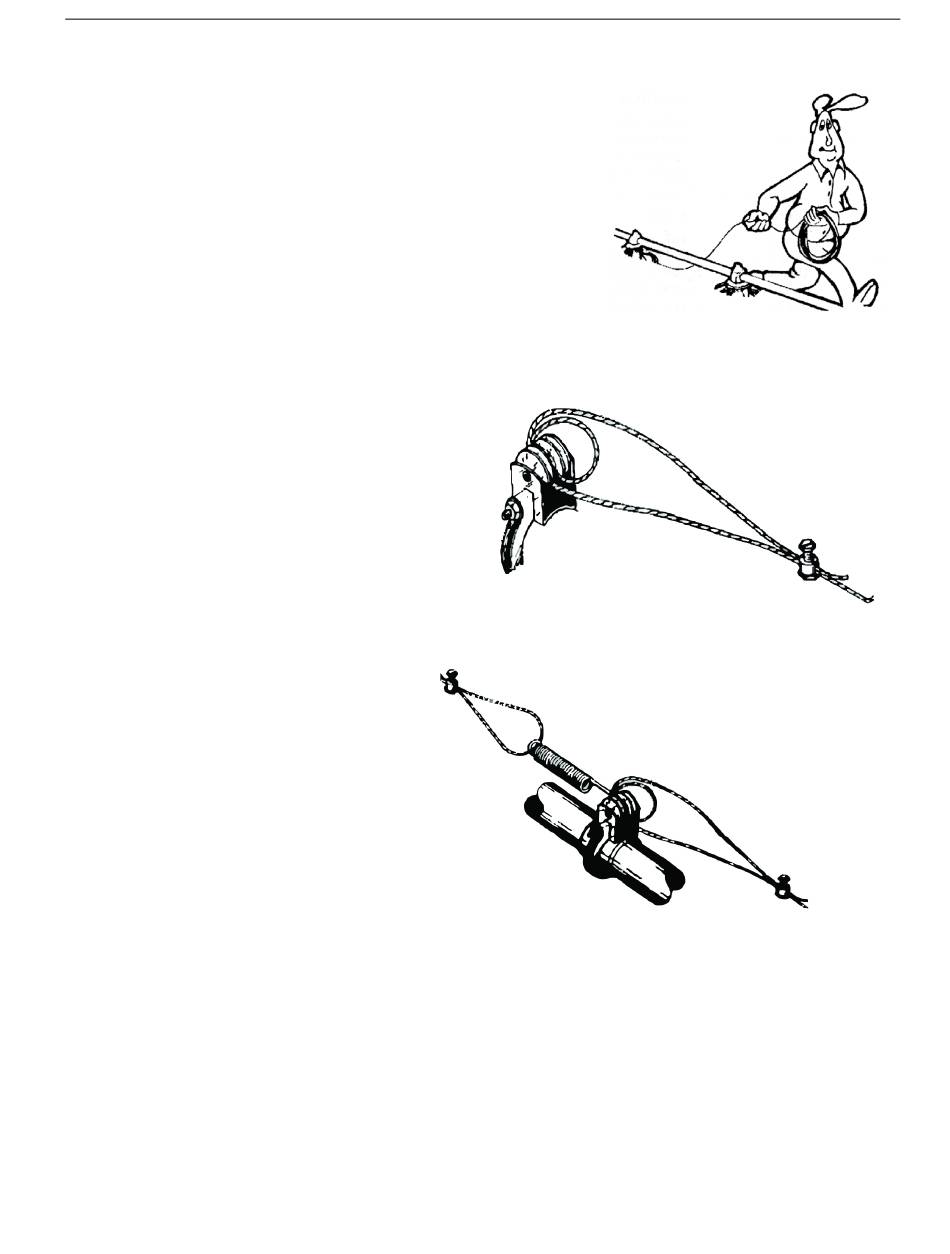

1. Unroll the bulk anti-roost cable. Note: If the cable is unrolled as
shown in Figure 46, taking 5 loops of the coil with one hand, then
changing hands to remove 5 loops as it is unrolled, it will lie flat
during installation.
2. Start at the hopper end of the line and form a
loop around the anti-roost bracket. For best
results, make a double loop around the anti-
roost insulator in the center groove of the
insulator and fasten with a 1/16" cable clamp as
shown in Figure 47.
3. Insert the cable in the insulator on the top of
each Grill Support between the hopper and the
next anti-roost bracket.
4. Attach a spring in the center
groove at the second anti-roost
bracket and cut the cable at this
point. See Figure 48.
5. Thread the ends of the cable
through the end of the spring.
Pull the cable tight so that there
is 3/4" to 1" [20 to 25 mm] of
stretch in the spring. Clamp the
cable to form a loop and cut off
any excess. See Figure 48.
6. Attach the cable to the insulator.
For best results, make a double
loop around the anti-roost
insulator in the center groove of
the insulator and fasten with a
1/16" cable clamp as shown in
Figure 48.
7. Run the cable to the next insulator, attach a spring in the center groove at the anti-roost bracket and cut the
cable at this point. The cable should be positioned in the insulator built into the top of each grill support
along the feeder line.
8. Repeat this installation until the anti-roost cable is installed along the entire feeder line.
9. At the control unit, after clamping the cable to the spring, cut the cable about 8" to 10" [200 to 250 mm]
longer than necessary. Feed the end of the cable through the center of the spring, around the first insulator on
the control unit, and clamp the cable using the cable clamp supplied with the control unit. See Figure 49.
10. Install the wire form on the control unit insulators. Be sure the guard snaps into the retainers molded into the
insulators. See Figure 49.
MF830E
Figure 47. Anti-Roost Cable at the Hopper
Figure 48. Anti-Roost Cable Intermediate Connection
Figure 46. Unrolling the Cable
