Chore-Time H2 Installation And Operator's Manual page 9

MODEL H2™ Feeding System General
The windows in the feeders may be closed to reduce the amount of feed into the feeder pan.
The H2 Feeder Pans have the ability to swing down to facilitate wasy
cleaning without needing to fully remove the feeder pans see figure 4.
Figure 5 shows the Pan Adjustment Tab numbers. Adjusting the H2 Feeder
Pan to different settings shanges the feed level in the pan. Chore-Time
recommends starting out broilers at setting #2 and turkeys at setting #4.
If the feeder pans do require adjustment, gently pull the pan away from on to
the stuts to release. Reset the pan in the other two struts. Gently, pull the pan

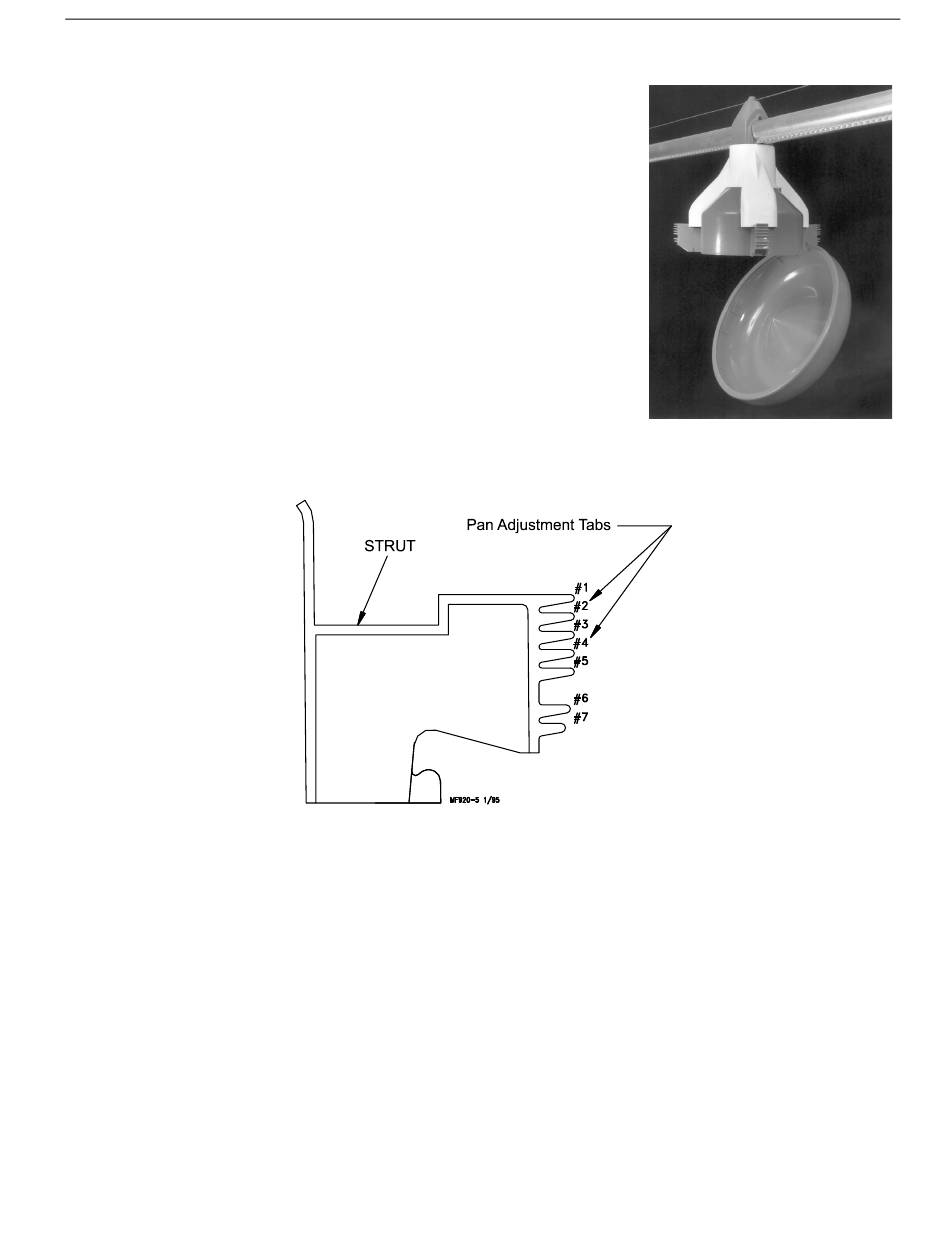

Figure 4. Hanging Feeder Pans
into the appropriate setting on the third strut.
Refer to the Section for additional operation recommendations.
Figure 5. Pan Adjustment
9
MF830E
