Chore-Time H2 Installation And Operator's Manual page 35

MODEL H2™ Feeding System
4. Install the Mid-Line Control:
a. Remove the two hex head screws
on the control top.
b. Lift off the control top.
c. Cradle the feeder tube in the control
housing. The feeder tube may have
to be turned slightly to allow the
pan to hang straight.
d. Clamp the control in place by
inserting tabs on the control top into
the slots on the control body. Install
and tighten the two hex head screws
previously removed.
5. Install a toggle switch, out of reach of
the birds, to disconnect power to the
Mid-Line Control. This allows the
Mid-Line Control to serve as standard
feeder when not used as a control
feeder.
6. Wire the Mid-Line Control as shown in
the wiring diagram section of this
manual.
MF830E

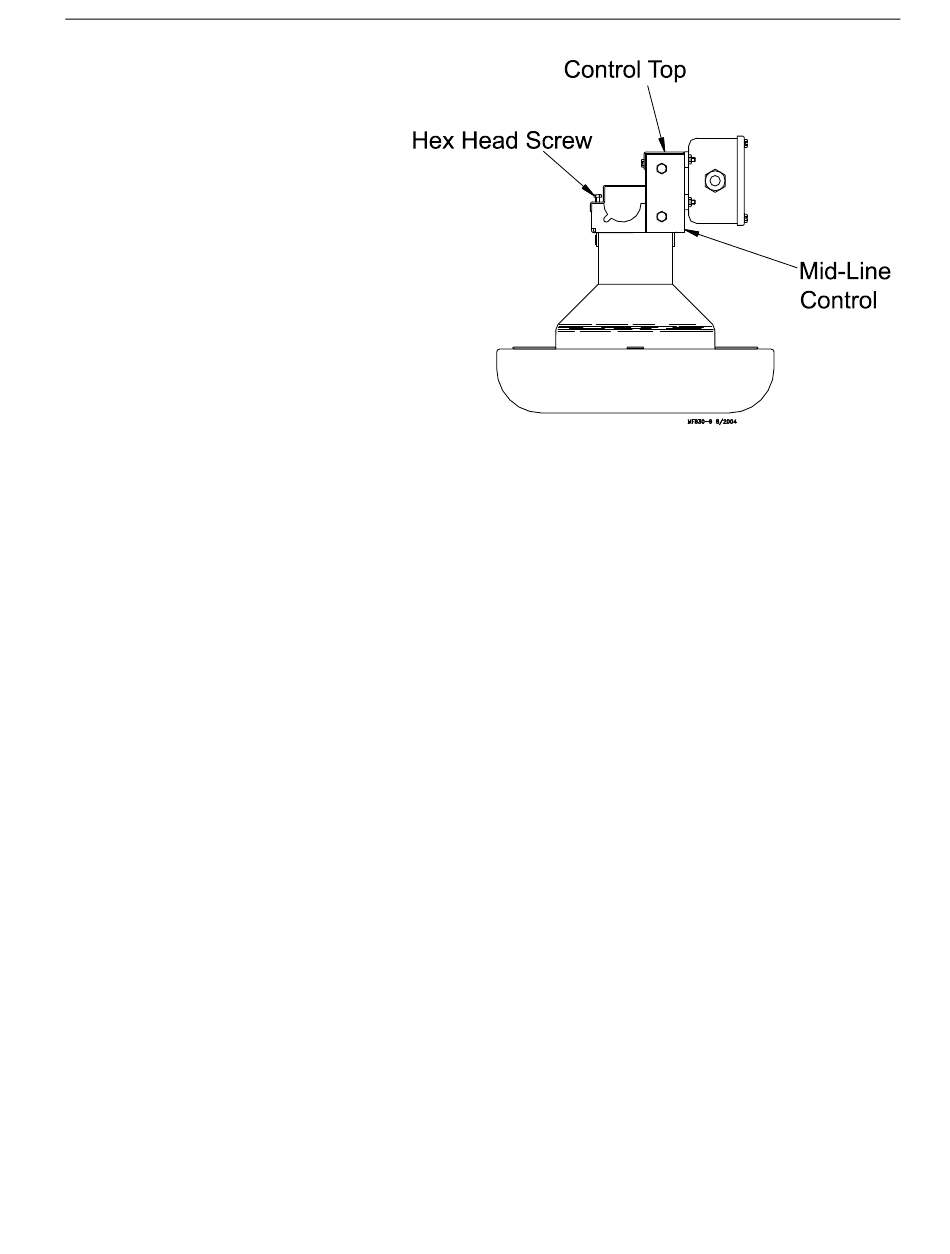

Figure 54. Mid-Line Control Installation
Mid-Line Control
35
