5.0 CONNECTION AND OPERATION

1) Connect the HDMI input source (such as HD-DVD, PS3, STB) to the
Sender.
2) Connect one piece of CAT-5e/6 cable to both of the output of the
Sender and input of the Receiver.
3) Connect the output of Receiver to display (such as HD-LCD,
HD-DLP)
4) Plug one power supply into the Sender and the other into the
Receiver.
Attention: Insert / Extract cable gently.

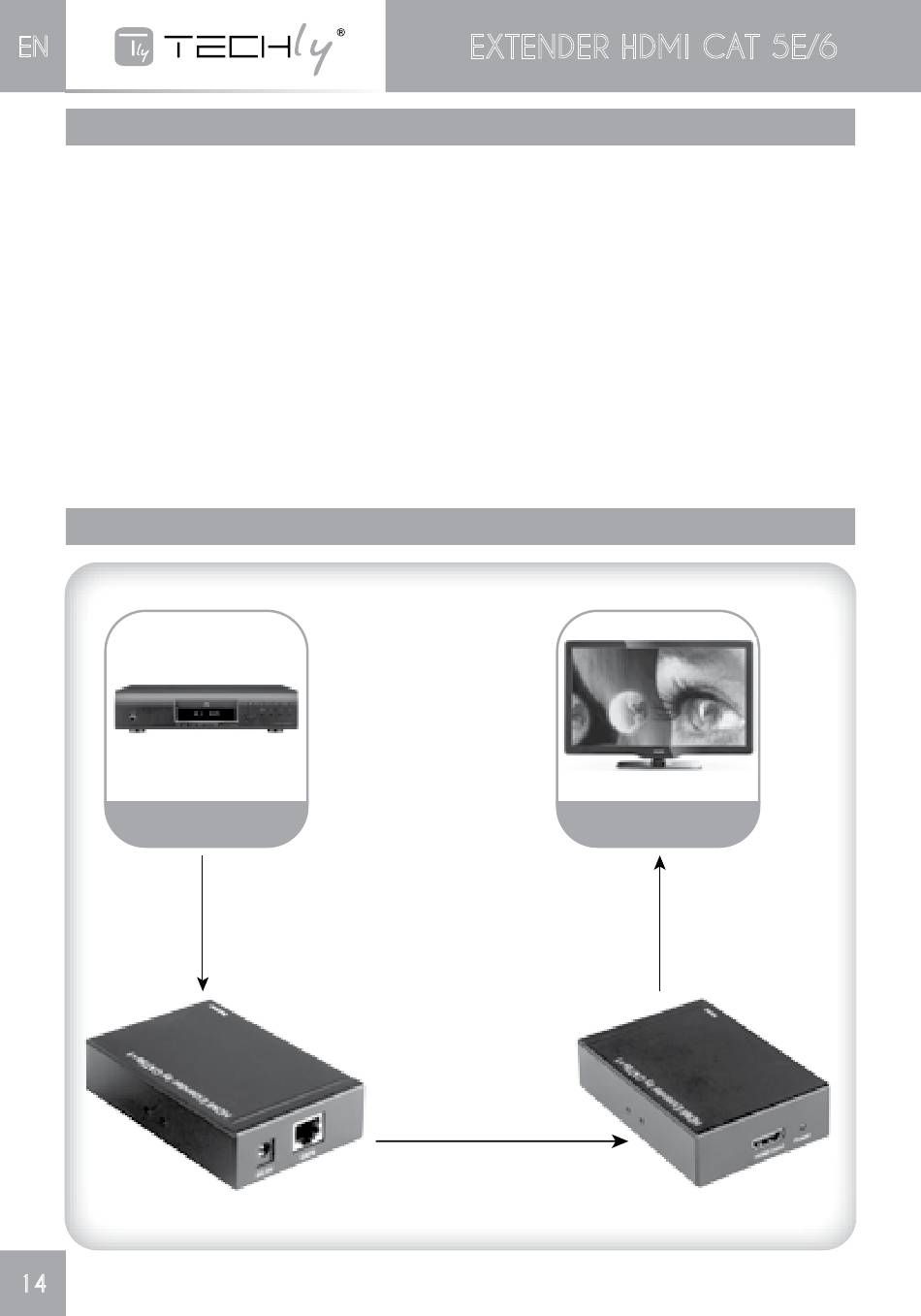

5.1 CONNECTION DIAGRAM
HD SOURCE
14
HDMI cable
EXTENDER HDMI CAT 5E/6
one RJ45
up to 50 m
HD TV
HDMI cable
