Control section A

Item Symbol
1 JOB-
LIST
2
3
4
5
099-0M37XK-EW501
16.07.2018
Description 0
Welding task push-button (JOB)
Select the welding task from the welding task list (JOB-LIST). The list can be found
inside the protective cap on the wire feeder and in the appendix to these operating
instructions.
Click wheel welding power
• ----------- Setting the welding power > see 3.6.2 chapter
• ----------- Setting various parameters values depending on the preselection.
The white signal lights (LED) around the rotary knob light up when setting is possible.
Operating mode selection push-button
--------- Non-latched
-------- Latched
--------- Special latched
"Welding type" push-button (for machine versions with pulsed arc welding
procedures only)
-------- standard MIG/MAG welding
---- pulsed MIG/MAG welding
Display of arc dynamics
The height and orientation of the set arc dynamics are displayed.
Machine control – Operating elements

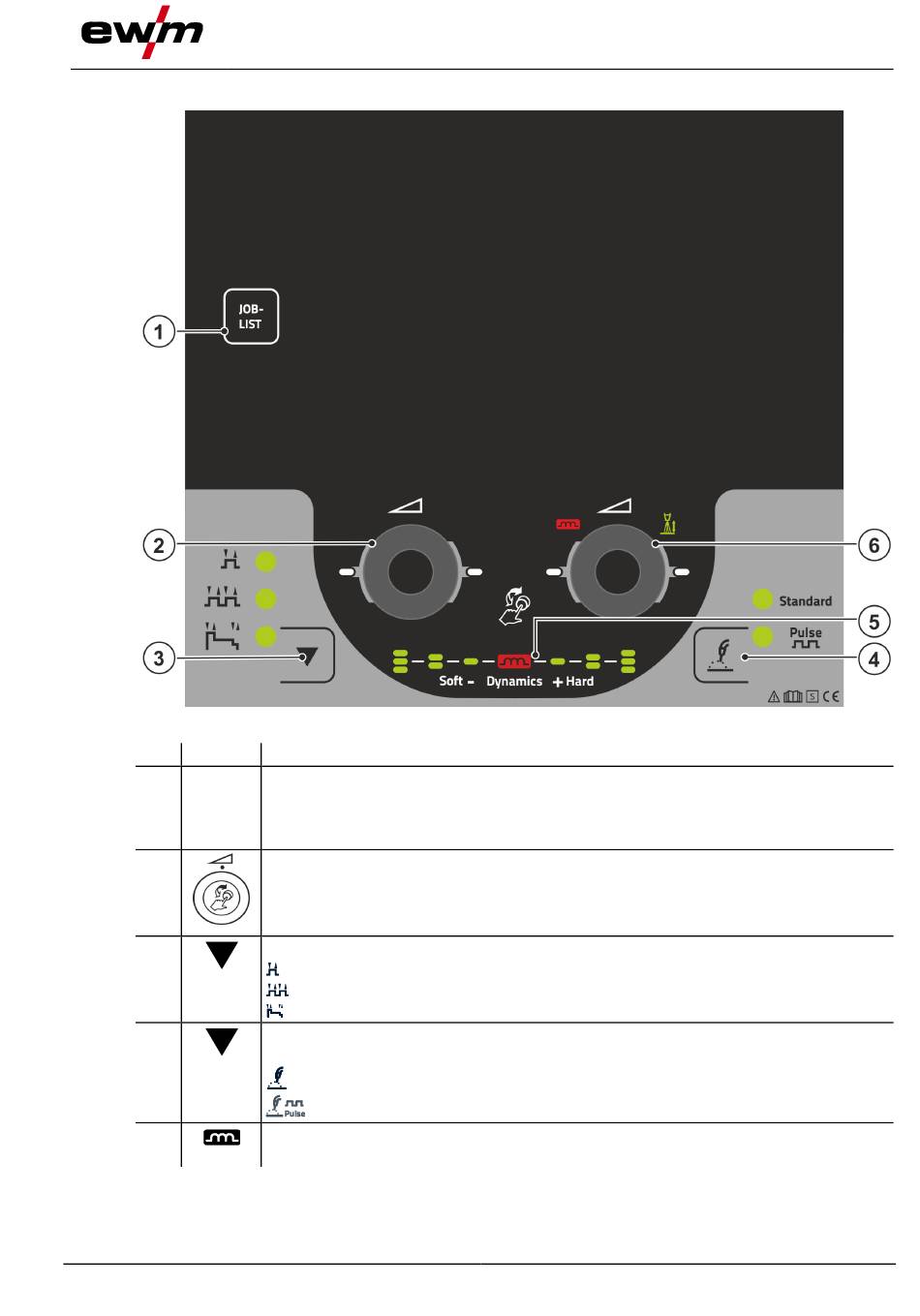

Figure 3-2
