Machine control – Operating elements
Overview of control sections
4.1.1

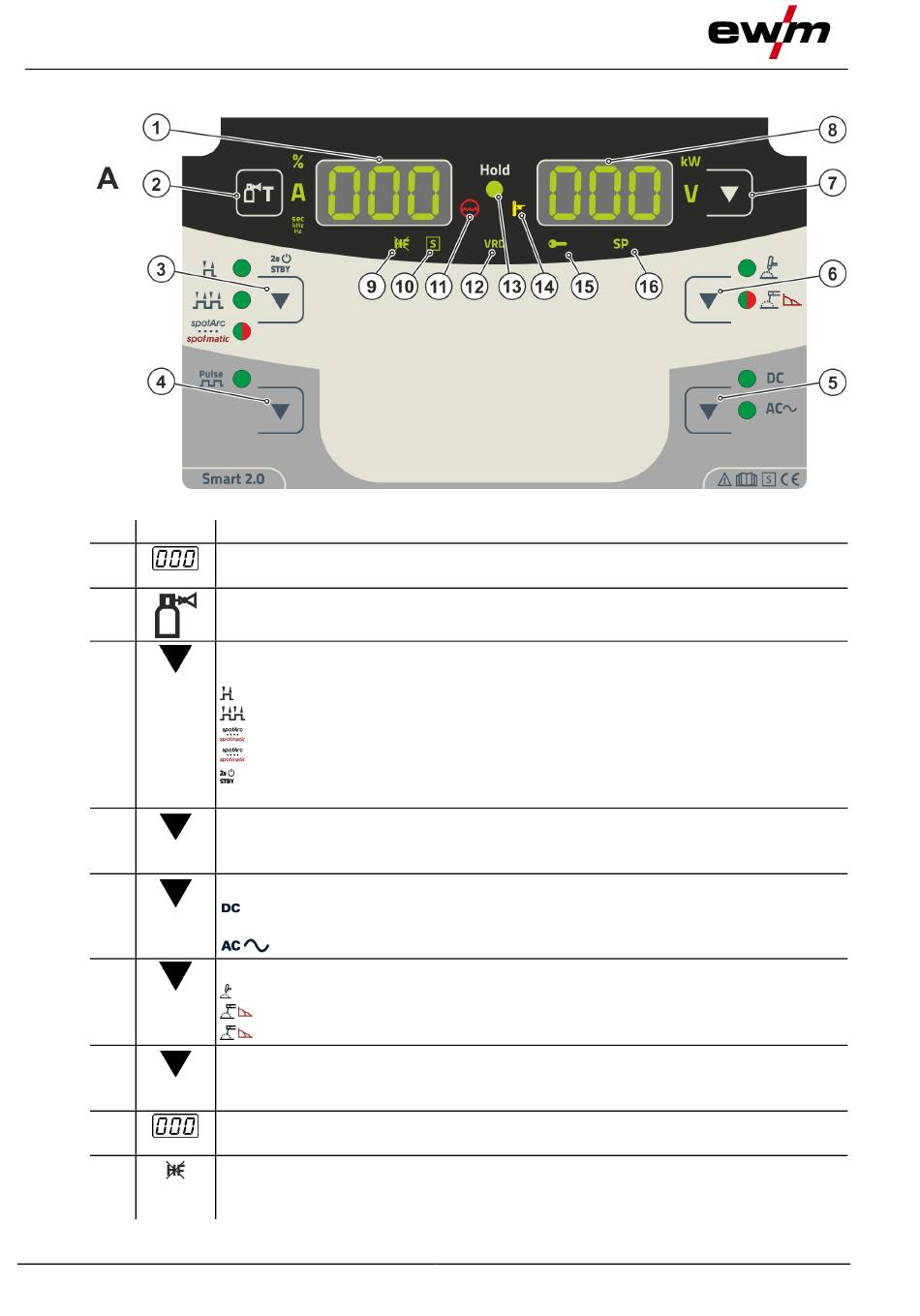

Control section A

Item Symbol
1
2
3
4
5
6
7
8
9
10
Description 0
Welding data display (3-digit)
Displays the welding parameters and the corresponding values > see 4.2 chapter
Push-button gas test / rinse hose package > see 5.1.1 chapter
Operating mode > see 5.1.5 chapter / power-saving mode push-
button > see 5.3 chapter
--------- Latched
------- Non-latched
------- spotArc spot welding procedure – signal light turns green
------- spotmatic spot welding procedure –signal light turns red
--------- Press button for long interval to put machine into power-saving mode.
Activate one of the operating elements to reactivate.
Pulsed welding push-button
TIG ------ pulsed welding > see 5.1.6 chapter
MMA ---- pulsed welding > see 5.2.5 chapter
Welding current polarity push-button
-------- DC welding with negative polarity at the torch (or electrode holder) with
respect to the workpiece.
-- Alternating current welding/alternating current forms > see 5.1.3.3 chapter
Welding procedure push-button
--------- TIG welding
----- MMA welding (signal light turns green)
----- Arcforce setting (signal light turns red)
Display switching push-button
kW ------- Welding power display
V --------- Welding voltage display
Welding data display (3-digit)
Displays the welding parameters and the corresponding values > see 4.2 chapter
TIG ignition type signal light
Signal light on: Lift arc ignition active/HF start off. You can switch the ignition type in the
Expert menu (TIG) > see 5.1.11 chapter.
Figure 4-2
099-00T404-EW501
02.07.2020
