2. De-energize external power supply cable.
3. Connect the cable to the terminals by observing polarity
(marked on the plastic).

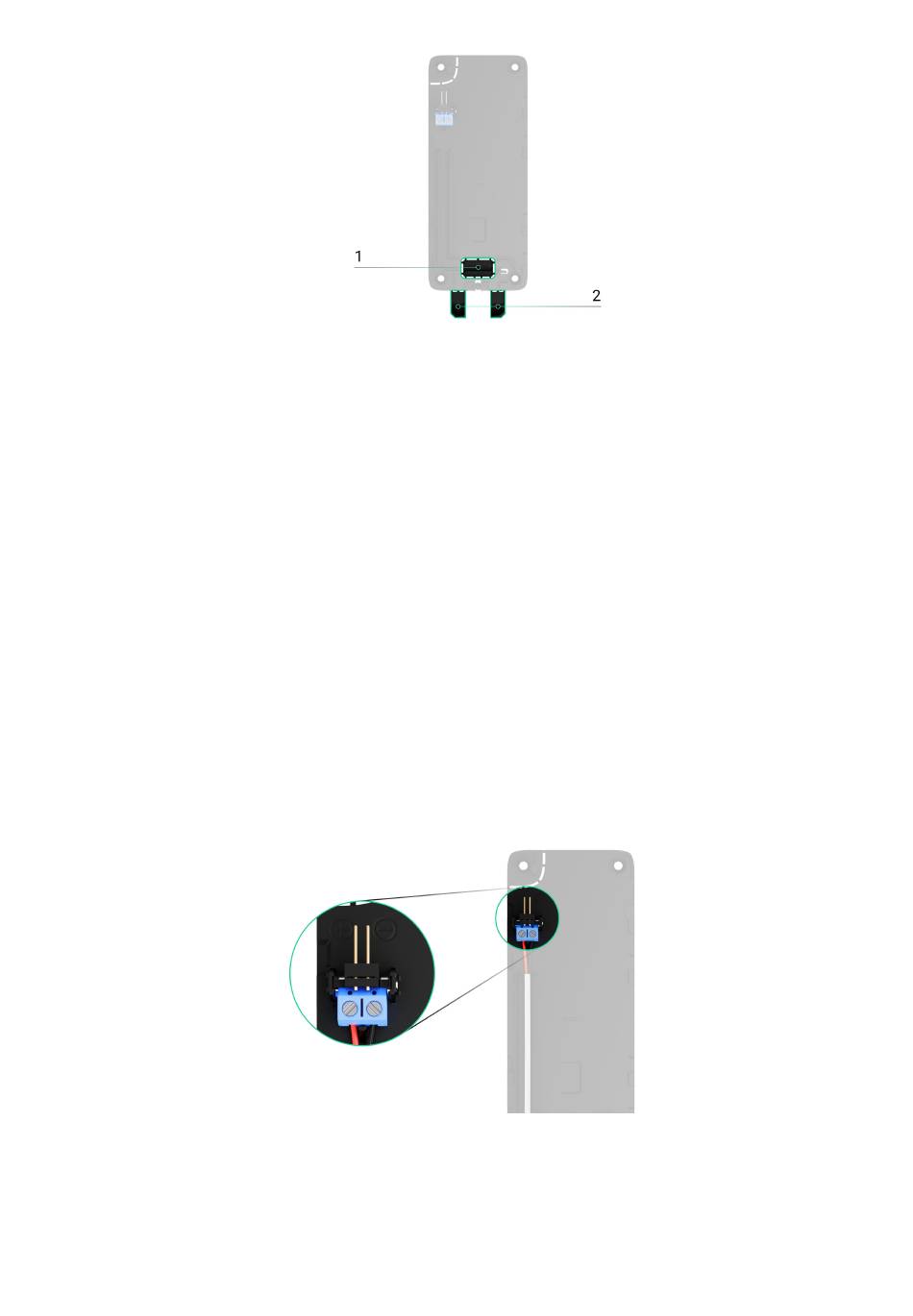

4. Route the cable in the cable channel. An example of how to
https://support.ajax.systems/en/manuals/keypad-touchscreen/
1 — to output the cable through the wall.
2 — to output the cable from the bottom. It is enough to
break out one of the perforated parts.
