Chapter 2: Jumpers and Connectors

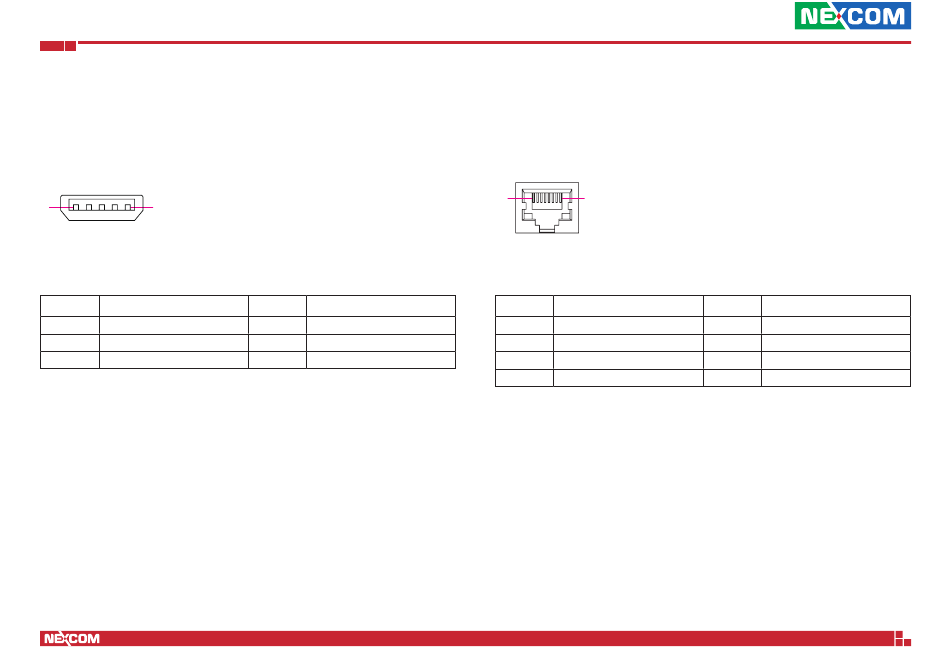

Micro USB Port (For Console Connection)
Connector location: COM1
1
5
Pin
Definition
1
CONSOLE_VBUS
3
DATA1+
5
GND_1
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
DATA1-
4
ID
RJ45 Console Port
Connector location: CON3B
1
8
Pin
Definition
1
RJ45_RTS
3
RJ45_TXD
5
RJ45_DCD
7
RJ45_DSR
10
Pin
Definition
2
RJ45_DTR
4
GND
6
RJ45_RXD
8
RJ45_CTS
NSA 3180HA User Manual
