If you added your ping targets to point groups, the state field will display the appropriate set or clear messages. If
you're ever unsure of the set or clear messages, green font will always indicate a cleared alarm, red will always
indicate a set alarm.
13.4.4

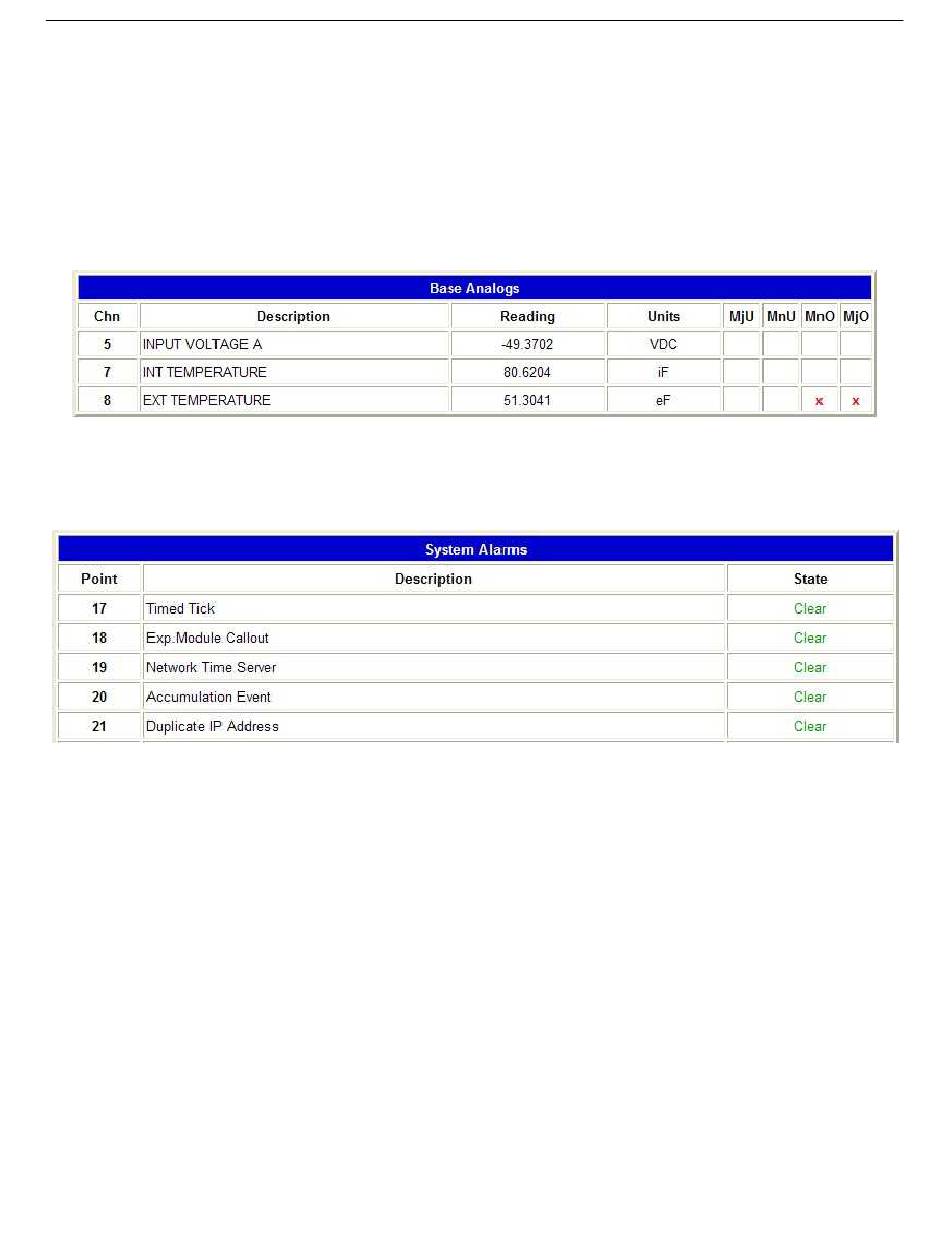

Base Analogs

The menu >
Monitor Analogs
being read, and alarm conditions (major under, minor under, major over, minor over) according to your analog
settings.
13.4.5

System Alarms

The System Alarms link will show you the state of your NetGuardian's internal alarms.
If you added alarms to point groups, the state field will display the appropriate set or clear messages. However, in
the state field, green font will always indicate a cleared alarm, red will always indicate a set alarm.
screen provides a description of each analog channel, the current reading, the units
