13.3.18 Building Access Control

Passwords entered in the NetGuardian will only remain valid until BAC provisioning information is downloaded
The Building Access Controller (BAC) option is only available for NetGuardian 420 builds with an RS-485
connection attached to an Entry Control Unit (ECU).

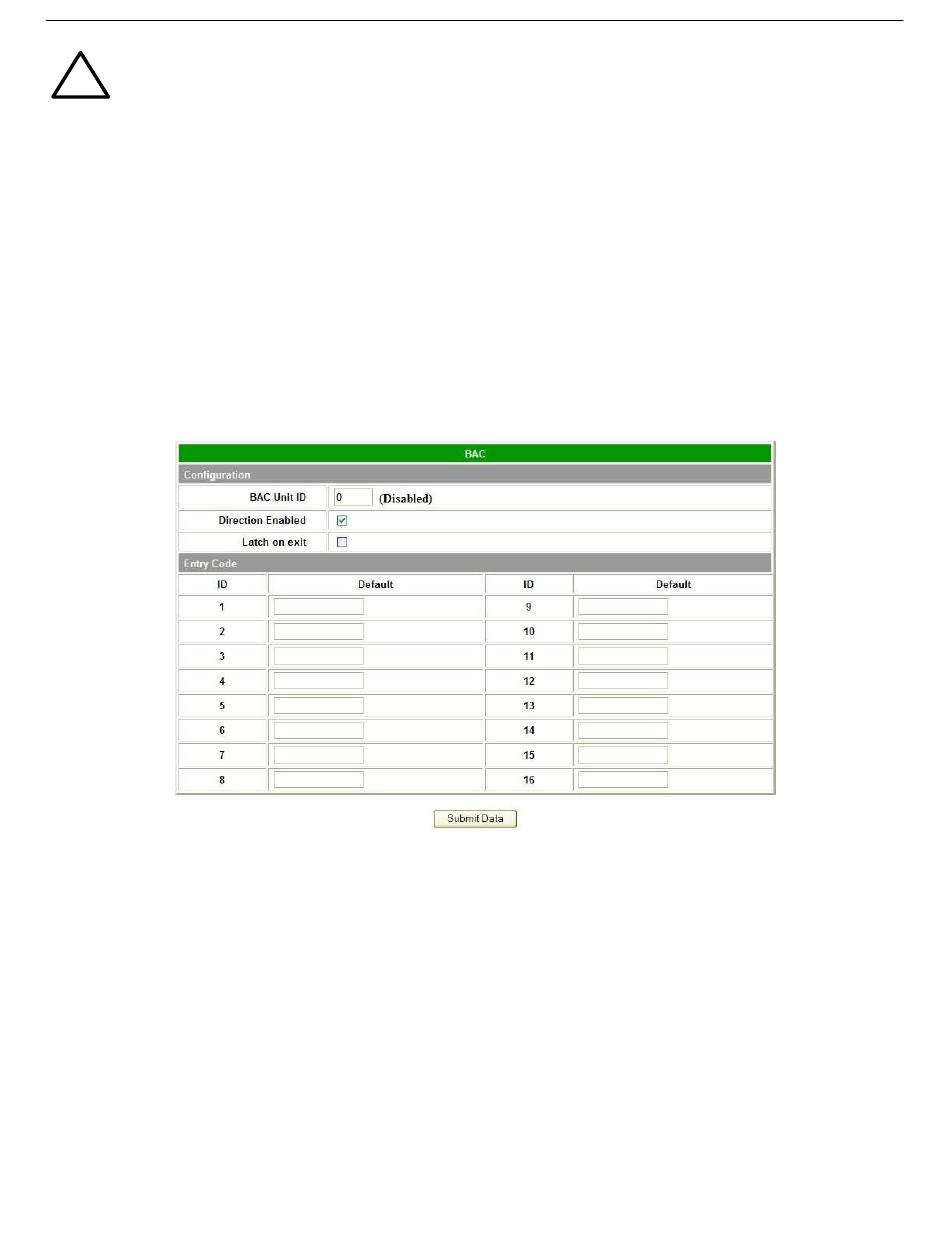

1. Enter the BAC unit ID number (This is the DCP address of the ECU. It must match the expansion address
being polled by the master. Any range from 1-255 is acceptable or enter zero to disable the unit).
2. When Direction is enabled, users are required to enter a 1 for enter immediately following their password or a
4 for exit immediately following their password. For example, if the password is 4541600, and direction is enabled
,users need to type in 45416001# to enter, or 45416004# to exit.
3. The Defaults column is where door passwords can be edited. These passwords are temporary passwords used
primarily for turn up and test. A valid password is a combination of up to 14 digits. When a valid password is
entered on the keypad, the NetGuardian will send a command to the Entry Control Unit (ECU) to operate the relay
to energize the door strike.
There can be up to 16 different user names and each one must have its own password.
