Monitoring Data Port Activity

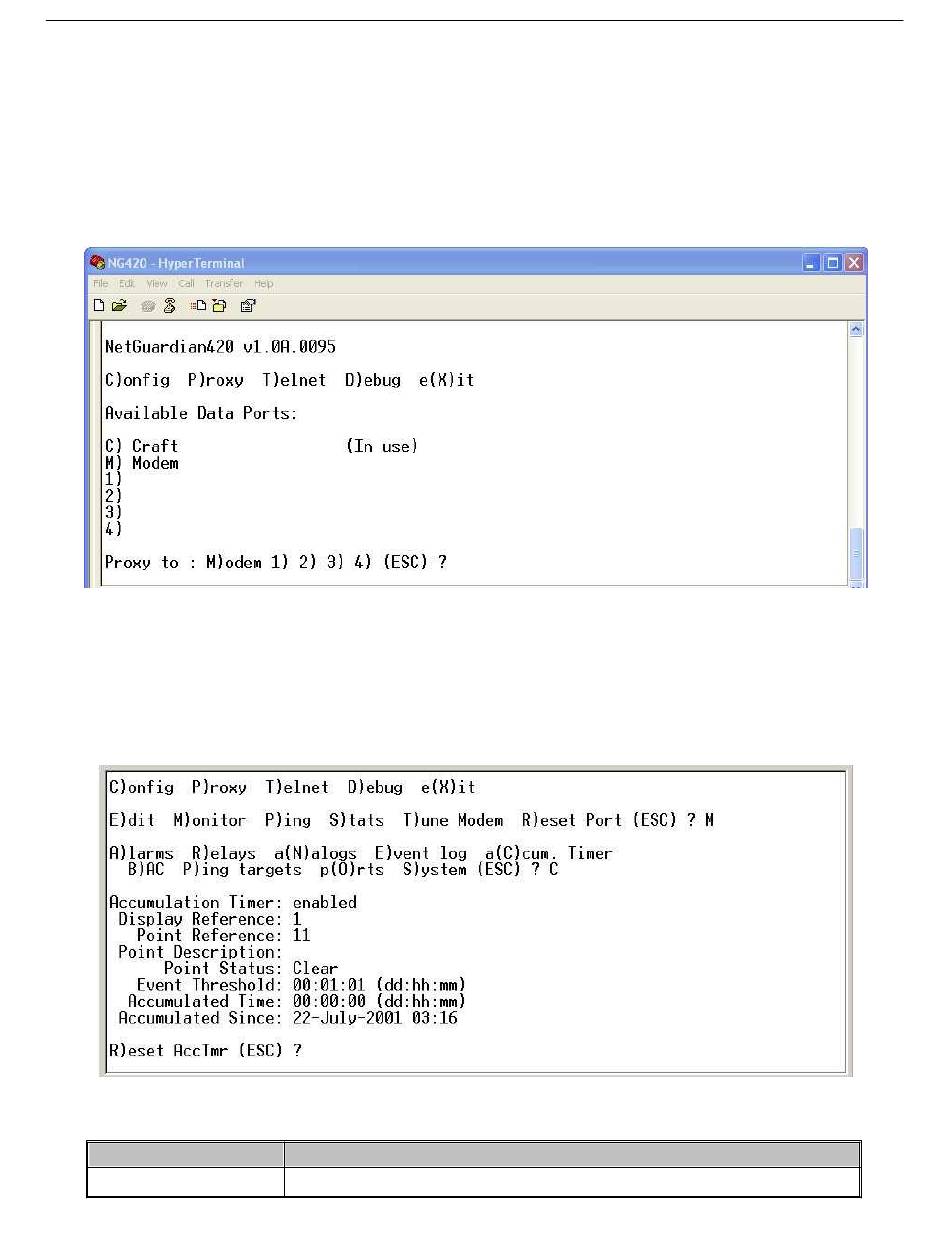

View the status of the NetGuardian's 4 data ports from the M)onitor menu > p(O)rts option. Enter the number of
the port you wish to view and press Enter.
The NetGuardian provides an ASCII description under Transmit and Receive
transmitted to another device. Choose b) Receive to view data received from another device. See Appendix,
"ASCII Conversion," for specific ASCII symbol conversion.
Data port activity can be viewed from the M)onitor menu > p(O)rts option
12.2.1.7

Monitoring the Accumulation Timer

The Accumulation Timer keeps a running total of the amount of time a point is in an alarm state. An alarm point
that exceeds a user defined threshold will trigger a Accumulation Event system alarm. Refer to Figure 13.3.1.7.1.
and Table 13.3.1.7.A to define the accumulation timer.
Field
Display and Point
Monitor and reset the Accumulator Timer
Indicates which alarm point is to be monitored.
Choose a) Transmit to view data
.
Description
