Web Interface; Logging On To The Netguardian - DPS Telecom NetGuardian 420 DNP3 Hardware User Manual

43
Table. 13.3.A. Debug Input and Filter Options
13

Web Interface

Thet NetGuardian's Web Interface provides access to configure and monitor your NetGuardian.

Logging on to the NetGuardian

13.1
Your NetGuardian must first be assigned an IP address via the TTY interface before you will be able to connect
via LAN/WAN using the Web Browser. If you have not yet done this, see Ethernet Port Setup in section 12
(TTY Interface) of this manual.

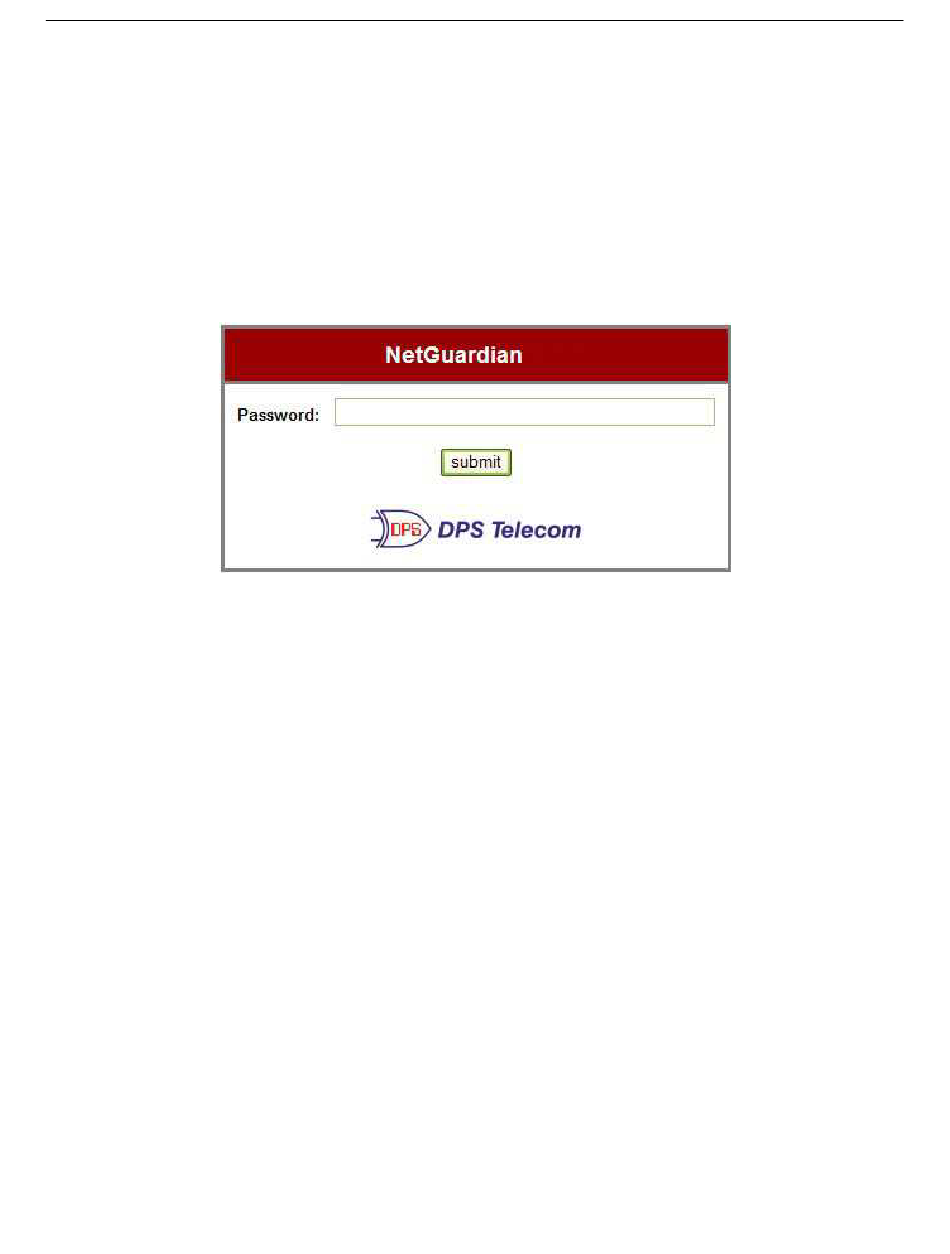

To connect to your NetGuardian:
1. Type the IP address of the NetGuardian in your web browser's address bar
2. Type your password in the password field that appears.
Note: The factory default password is dpstelecom.
Upon successfully logging in, you will be brought to the alarm summary screen in monitor mode.
The NetGuardian must be assigned an IP address before you will be able to connect via LAN/WAN using a
Telnet client or a Web browser. To connect via LAN, the minimum configuration requires setup of the IP address
and subnet mask. Minimum WAN configuration requires that the default gateway be set as well. Follow the
instructions below to configure the NetGuardian's IP address, subnet mask, default gateway, trap address, SNMP
port number, proxy base, and DHCP option.
