Monitor Mode

13.4
From Monitor Mode, you can monitor all of the unit's alarms, analogs, ping targets, cameras, and issue controls.
When you logon to the NetGuardian, it will be in Monitor Mode. To revert to Monitor Mode from Edit Mode,
simply click the blue Monitor button.
13.4.1

Alarm Summary

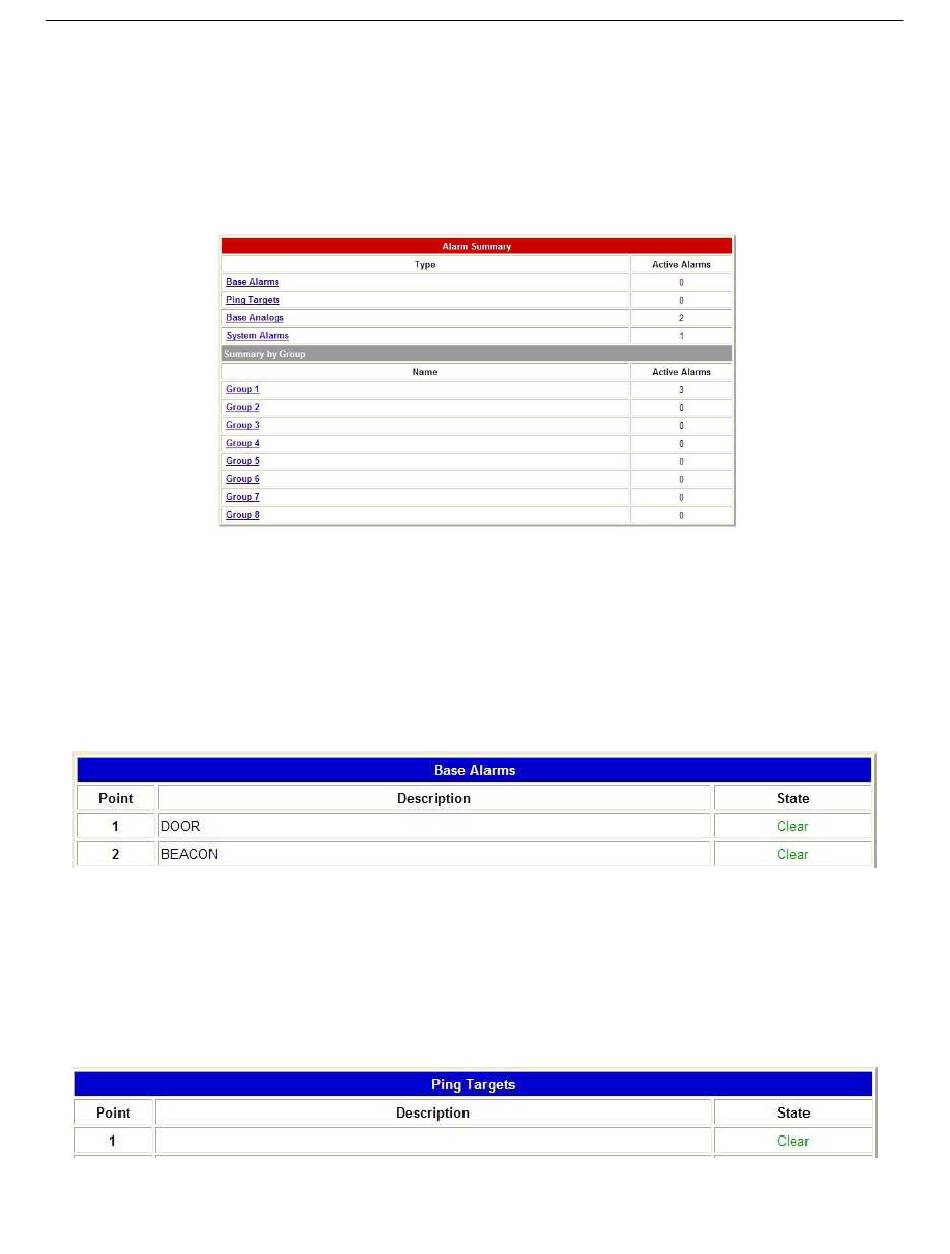

Entering Monitor Mode will bring you to the Alarm Summary Screen. From here, you can see the total number of
active alarms, ping targets, analogs, and system alarms. You can also view alarms by point group. Click any of
the links in the Alarm Summary to see details or use the navigation links on the left to browse your NetGuardian's
alarms and resources.
13.4.2

Base Alarms

From the Base Alarms screen, you can view the state of your NetGuardian's 20 base alarms.
If you added alarms to point groups, the state field will display the appropriate set or clear messages. If you're
ever unsure of the set or clear messages, green font will always indicate a cleared alarm, red will always indicate
a set alarm.
13.4.3

Ping Targets

You can monitor your NetGuardian's 32 ping targets from the Monitor > Ping Targets screen.
