Monitoring

12.2
12.2.1

Monitoring the NetGuardian

Connect a PC running VT100 terminal emulation software to the craft port or connect via LAN using a Telnet
client with VT100 emulation to port 2002 to reach the monitor menu selection. This section allows you to do full
system monitoring of the NetGuardian including: all alarms, ping information, relays, analogs, and system status.

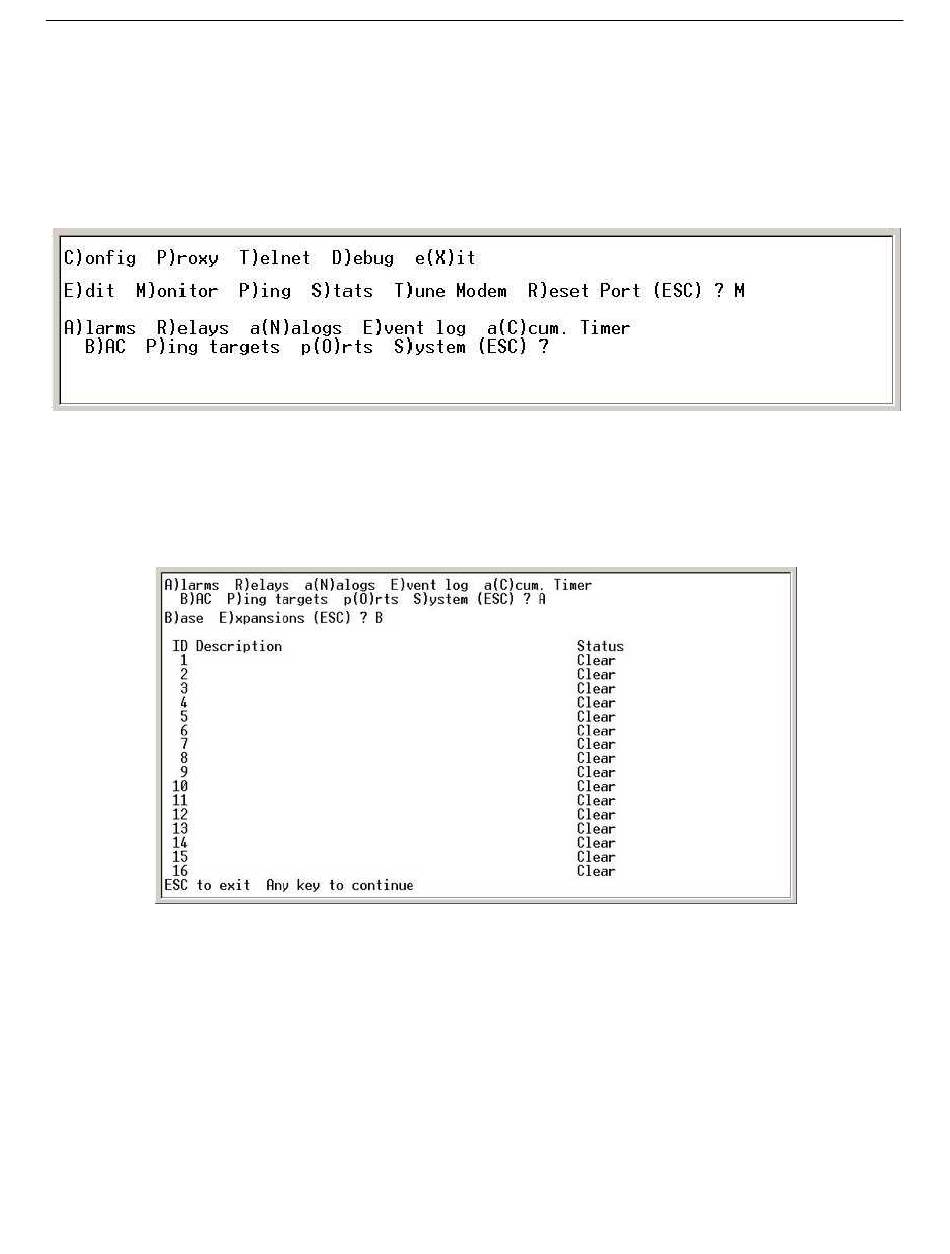

The monitor menu allows status checking on all elements
12.2.1.1

Monitoring Base Alarms

View the status of the device connected to the discrete alarms from the M)onitor menu > A)larms option. Under
Status, the word Alarm will appear if an alarm has been activated and Clear will appear if an alarm condition is
not present. If groups are used the user defined status will be displayed.
This example shows page two of the discrete alarms
