6. Slide the side panel's metal tabs into the media pack's slots (Figure 3-21).
Caution: These tabs play a structural role in providing proper pressure
on each of the disk drives in the RXT media pack.
Confirm the orientation of the tabs before pressing the side
panel into place; this way you can avoid damaging the disk
drives or the tabs.

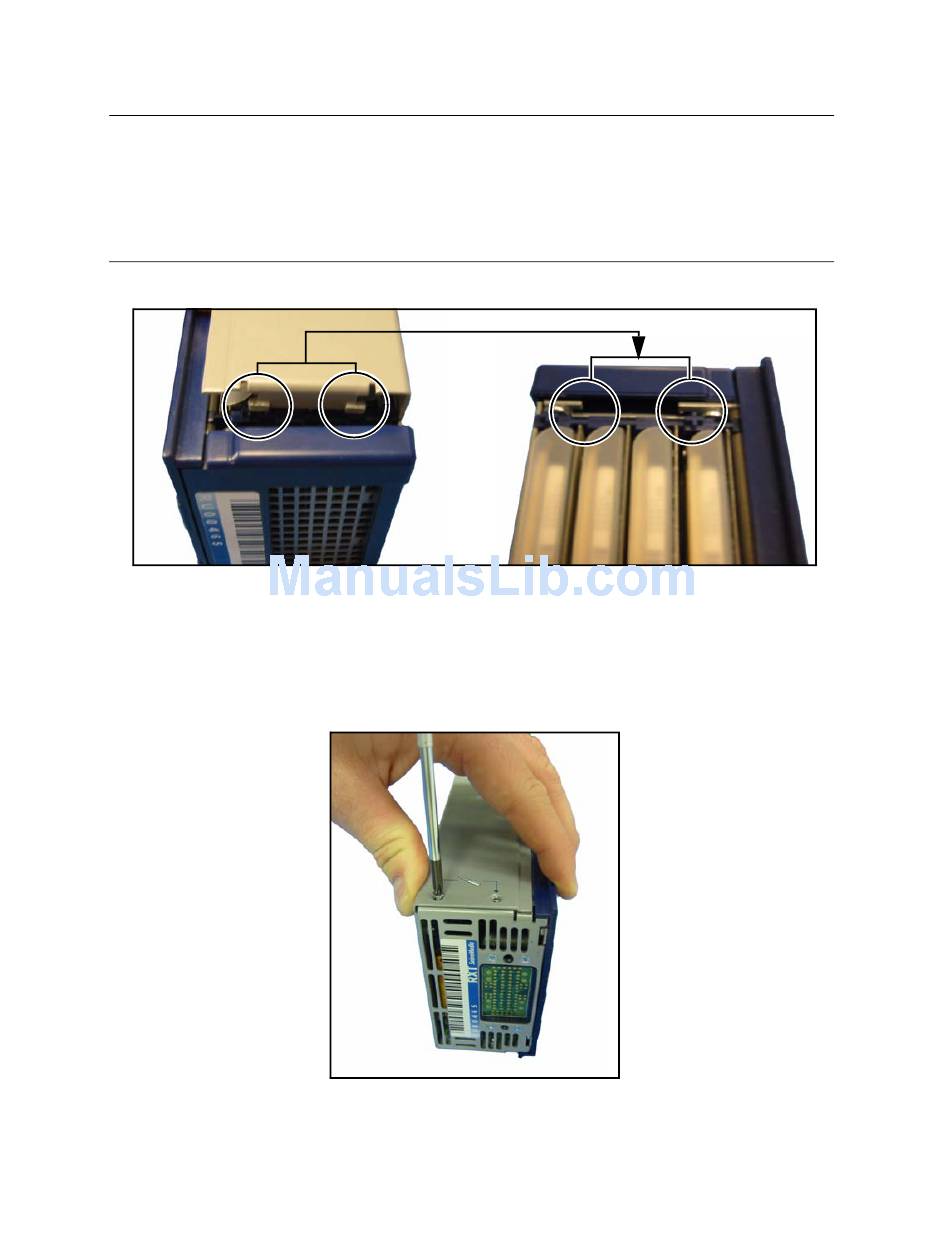

Figure 3-21
The tabs on the side panel (A) match the slots inside the media pack (B).
7. Gently push the side panel into place so that the screw holes all line up.
8. Hold it in place while using a #1 Phillips screwdriver to tighten the screws
(Figure 3-22).
9. Proceed to Finish on page 36.
Chapter 3. Troubleshooting RXT Media
A
Figure 3-22
The cover in place.
